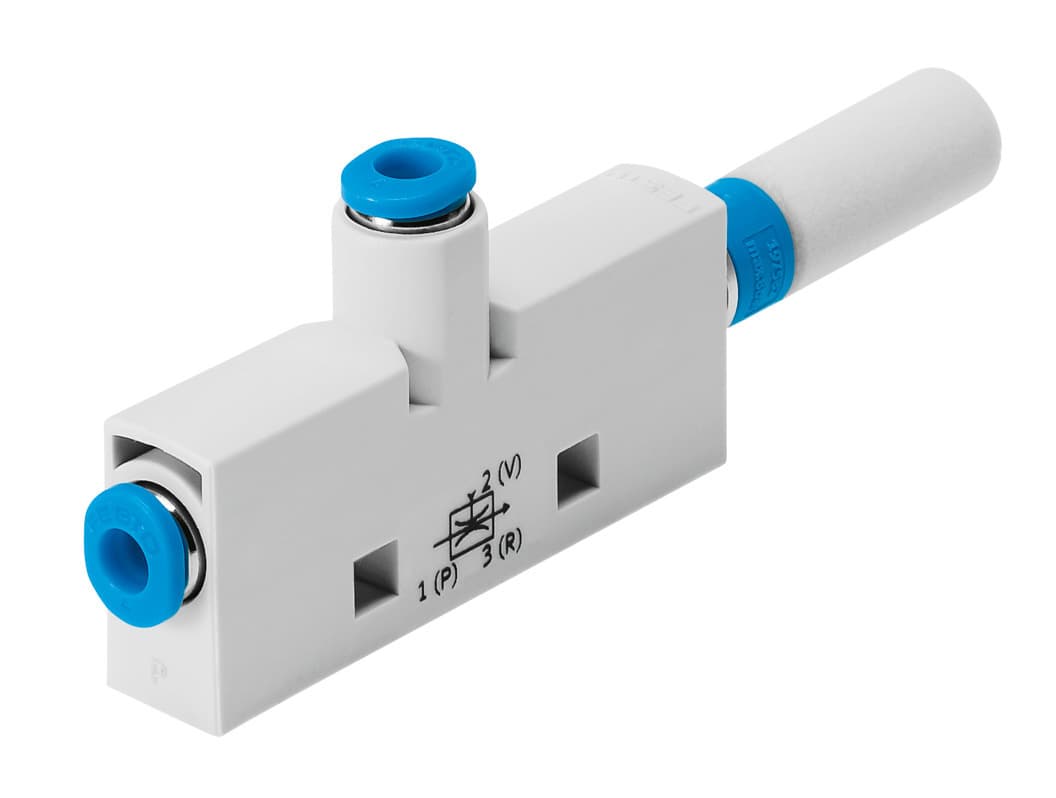

Product Model
vn-05-l-t2-pq1-vq1-ro1
Selling Points
- 1The VN-05-L-T2-PQ1-VQ1-RO1 vacuum generator provides a high suction rate, ensuring efficient evacuation times and optimal performance in industrial applications.
- 2Equipped with push-in fittings (PQ1) and vacuum connections (VQ1), this vacuum generator offers flexibility and ease of integration into various systems.
- 3The inclusion of a silencer (RO1) reduces noise levels, creating a more comfortable working environment and minimizing disruptions.
- 4Designed with a T-shape housing, the VN-05-L-T2-PQ1-VQ1-RO1 is compact and space-efficient, making it suitable for a wide range of industrial settings.
- 5Capable of achieving high vacuum levels, this generator is ideal for applications requiring precise and reliable vacuum control.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width of Laval nozzle | 0.45mm | Width dimension | 10mm |
Muffler construction type | Open | Mounting position | Any |
Ejector characteristics | High suction rate Standard | Integrated function | Pneumatic muffler open |
Structural design | T-shape | Symbol | 00991489 |
Operating pressure for max. suction rate | 5bar | Operating pressure | 1bar 8bar |
Nominal operating pressure | 6bar | Max. suction rate with respect to atmosphere | 15.7l/min |
Air supply time at nominal operating pressure | 1.7s | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | 0°C 60°C |
Noise level at nominal operating pressure | 53dB(A) | Ambient temperature | 0°C 60°C |
Max. tightening torque | 0.5Nm | Product weight | 15g |
Type of mounting | With through-hole With accessories | Pneumatic connection 1 | QS-4 |
Pneumatic connection 3 | Pneumatic muffler open | Vacuum connection | QS-4 |
Note on materials | RoHS-compliant | Seals material | NBR |
Female nozzle material | POM | Housing material | POM-reinforced |
Muffler material | PE | Material of jet nozzle | Wrought aluminum alloy |
Material of pneumatic fitting | Brass Nickel-plated | Manufacturer ID | 193595 |
Specifications may be subject to change without notice
