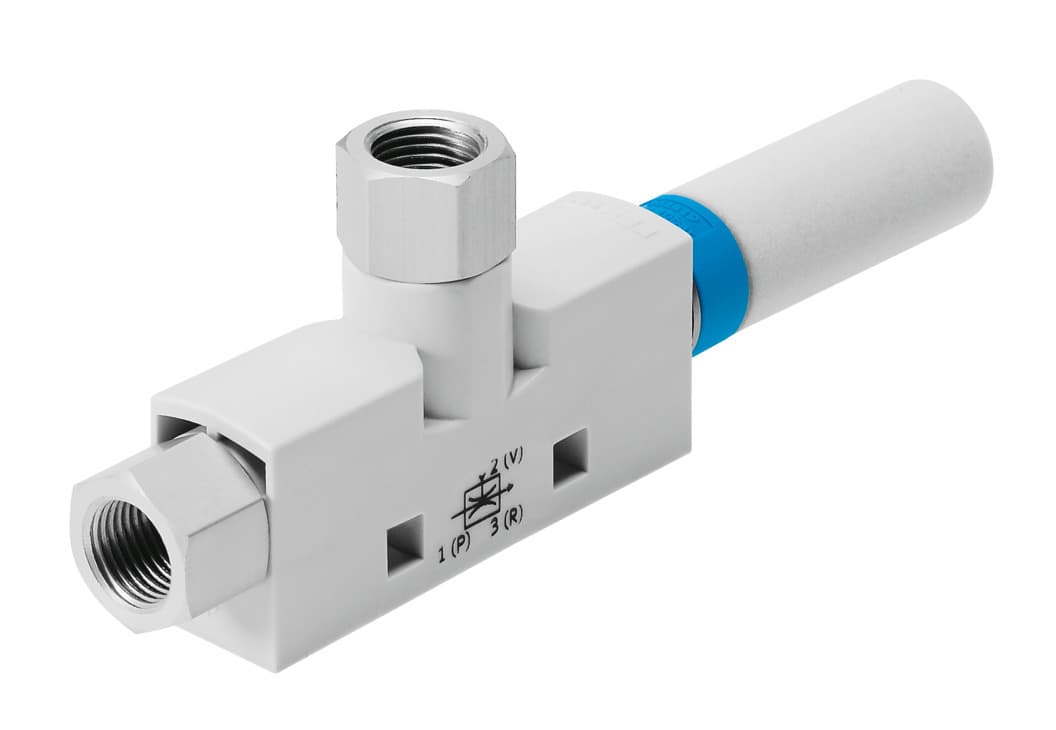

Product Model
vn-05-l-t3-pi4-vi4-ro1
Selling Points
- 1The VN-05-L-T3-PI4-VI4-RO1 vacuum generator boasts a maximum suction flow rate of 15.7 liters per minute, making it suitable for demanding industrial applications.
- 2With an operating pressure range of 1 to 8 bar and a nominal operating pressure of 6 bar, this vacuum generator ensures efficient operation and reliable performance.
- 3The device features a T-shape design with an open silencer, making it compact and easy to integrate into various systems.
- 4Built with anodized wrought aluminum alloy and POM-reinforced housing, the VN-05-L-T3-PI4-VI4-RO1 is designed for durability and long service life.
- 5The vacuum generator can be mounted with through-holes and comes with accessories for easy installation, ensuring minimal downtime and hassle-free setup.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width of Laval nozzle | 0.45mm | Width dimension | 14mm |
Muffler construction type | Open | Mounting position | Any |
Ejector characteristics | High suction rate Standard | Integrated function | Pneumatic muffler open |
Structural design | T-shape | Symbol | 00991489 |
Operating pressure for max. suction rate | 5bar | Operating pressure | 1bar 8bar |
Nominal operating pressure | 6bar | Max. suction rate with respect to atmosphere | 15.7l/min |
Air supply time at nominal operating pressure | 1.7s | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | 0°C 60°C |
Noise level at nominal operating pressure | 53dB(A) | Ambient temperature | 0°C 60°C |
Max. tightening torque | 0.5Nm | Product weight | 24g |
Type of mounting | With through-hole With accessories | Pneumatic connection 1 | G1/8 |
Pneumatic connection 3 | Pneumatic muffler open | Vacuum connection | G1/8 |
Material of connecting thread | Wrought aluminum alloy, anodized Brass, nickel-plated | Note on materials | RoHS-compliant |
Seals material | NBR | Female nozzle material | POM |
Housing material | POM-reinforced | Muffler material | PE |
Material of jet nozzle | Wrought aluminum alloy | Manufacturer ID | 193590 |
