Product Model

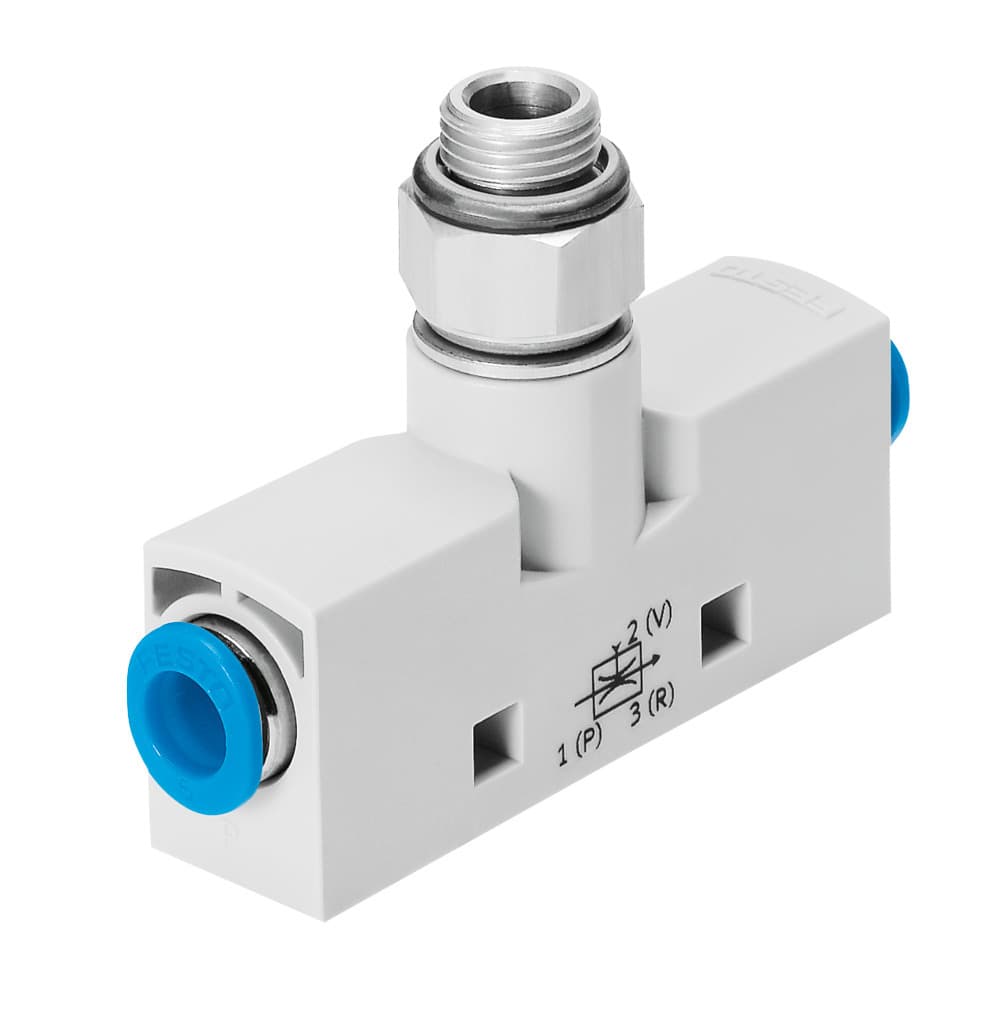

vn-05-l-t3-pq2-va4-rq2
Selling Points
- 1The VN-05-L-T3-PQ2-VA4-RQ2 from Festo offers advanced automation parameters, ensuring precise control and reliability in industrial processes.
- 2This product features detailed descriptions of its parameters, making it easy to integrate and optimize for specific applications.
- 3With its robust design and high-quality components, the VN-05-L-T3-PQ2-VA4-RQ2 is ideal for demanding industrial environments.
- 4The product supports IO-Link technology, enabling seamless communication and data exchange between devices.
- 5The VN-05-L-T3-PQ2-VA4-RQ2 is designed for easy parameterization using Festo's software or higher-order controllers, ensuring flexibility and customization.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width of Laval nozzle | 0.45mm | Width dimension | 14mm |
Mounting position | Any | Ejector characteristics | High suction rate Standard |
Structural design | T-shape | Symbol | 00991490 |
Operating pressure for max. suction rate | 5bar | Operating pressure | 1bar 8bar |
Nominal operating pressure | 6bar | Max. suction rate with respect to atmosphere | 15.7l/min |
Air supply time at nominal operating pressure | 1.7s | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | 0°C 60°C |
Ambient temperature | 0°C 60°C | Max. tightening torque | 0.5Nm |
Product weight | 24g | Type of mounting | With through-hole With accessories |
Pneumatic connection 1 | QS-6 | Pneumatic connection 3 | QS-6 |
Vacuum connection | G1/8 | Material of connecting thread | Wrought aluminum alloy |
Note on materials | RoHS-compliant | Seals material | NBR |
Female nozzle material | POM | Housing material | POM-reinforced |
Material of jet nozzle | Wrought aluminum alloy | Material of pneumatic fitting | Brass Nickel-plated |
Manufacturer ID | 193599 |
Specifications may be subject to change without notice
