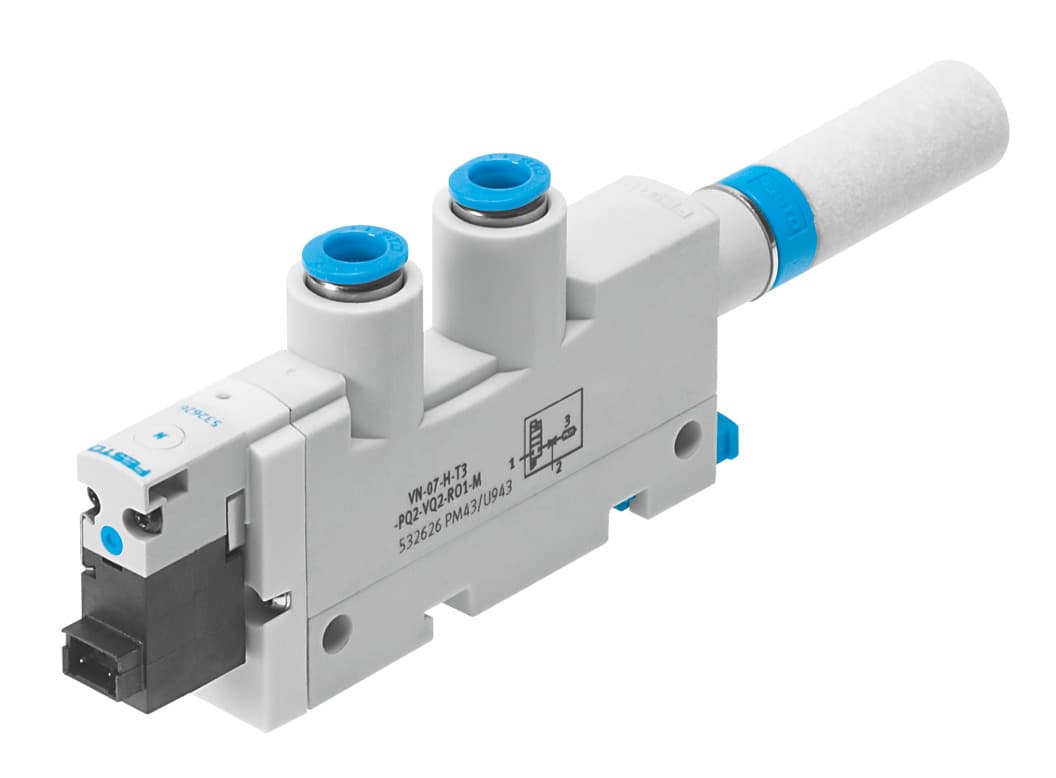

Product Model
vn-05-l-t3-pq2-vq2-ro1-m
Selling Points
- 1The Festo Vacuum Generator VN-05-H-T3-PQ2-VQ2-RO1 features a high-performance ejector, ensuring efficient vacuum generation for demanding industrial processes.
- 2This vacuum generator offers flexible mounting positions, allowing for easy integration into various industrial setups and configurations.
- 3The VN-05-H-T3-PQ2-VQ2-RO1 boasts an open muffler construction type, enhancing its performance and efficiency in vacuum applications.
- 4With a nominal width of 0.45 mm and a width dimension of 14 mm, this vacuum generator is designed to be compact and space-efficient, ideal for modern industrial automation.
- 5Built with high-quality components, the Festo Vacuum Generator VN-05-H-T3-PQ2-VQ2-RO1 ensures reliable operation and long service life, making it a trusted choice for industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width of Laval nozzle | 0.45mm | Width dimension | 14mm |
Muffler construction type | Open | Mounting position | Any |
Ejector characteristics | Standard High suction volume | Manual override | Non-detenting |
Integrated function | Shut off valve, electric Pneumatic muffler open | Structural design | T-shape |
Symbol | 00991492 | Valve function | 2/2 |
Operating pressure for max. suction rate | 5bar | Operating pressure | 2bar 8bar |
Nominal operating pressure | 6bar | Max. suction rate with respect to atmosphere | 13.6l/min |
Air supply time at nominal operating pressure | 1.97s | DC operating voltage range | 21.6V 26.4V |
Electrical power consumption | 1.2W | Duty cycle | 100% |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication not possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | 0°C 50°C | Noise level at nominal operating pressure | 52dB(A) |
Degree of protection | IP40 | Ambient temperature | 0°C 50°C |
Product weight | 60g | Electrical connection | Plug |
Type of mounting | With through-hole With H-rail With accessories | Pneumatic connection 1 | QS-6 |
Pneumatic connection 3 | Pneumatic muffler open | Vacuum connection | QS-6 |
Material of connecting thread | Wrought aluminum alloy, anodized | Note on materials | RoHS-compliant |
Seals material | NBR | Female nozzle material | POM |
Housing material | PA-reinforced POM-reinforced | Muffler material | PE |
Material of screws | Steel | Material of jet nozzle | Wrought aluminum alloy |
Material of pneumatic fitting | Brass Nickel-plated | Manufacturer ID | 532619 |
Specifications may be subject to change without notice
