Product Model
vn-05-m-t3-pi4-vi4-ri4
Selling Points

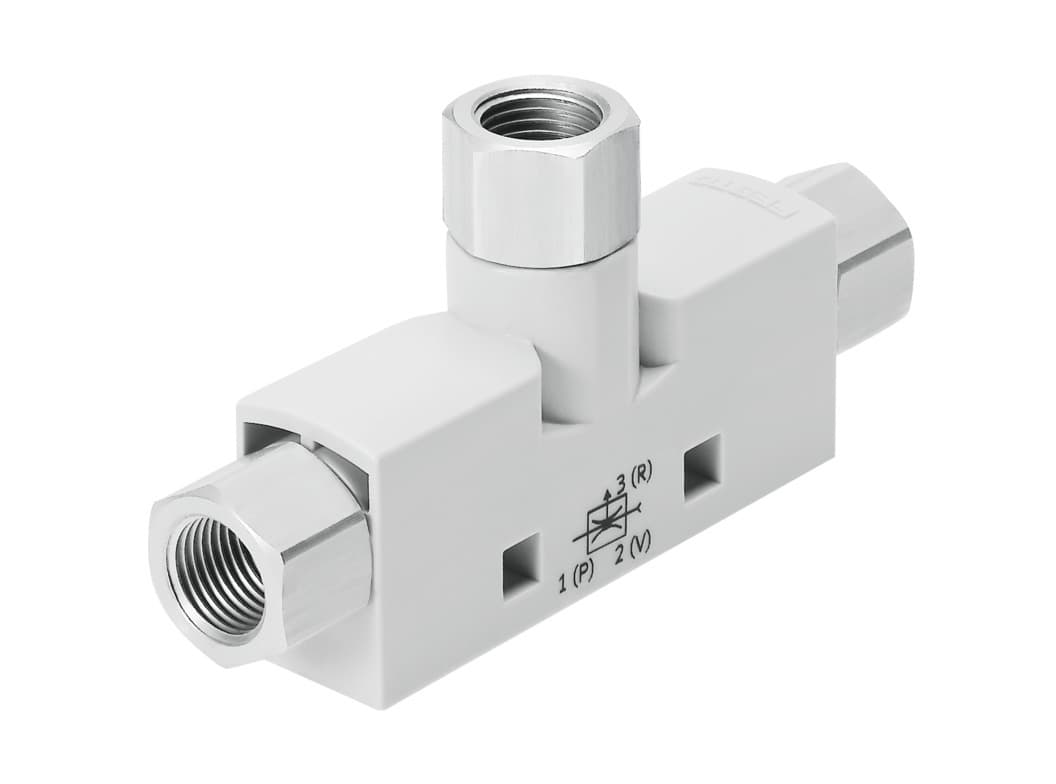

- 1The Festo VN-05-M-T3-PI4-VI4-RI4 vacuum generator delivers high vacuum performance with an ejector characteristic suitable for in-line applications, ensuring efficient suction volume flow.
- 2This vacuum generator offers arbitrary installation positions, making it versatile for various industrial settings where flexibility in placement is crucial.
- 3With a nominal width of 0.45 mm and pitch dimension of 14.0 mm, the VN-05-M-T3-PI4-VI4-RI4 is designed for compact spaces, ideal for applications where space is limited.
- 4Built with durable materials like POM reinforced housing and NBR seals, this vacuum generator ensures long-lasting performance and minimal maintenance.
- 5The VN-05-M-T3-PI4-VI4-RI4 is compliant with ISO 8573-1:2010 for compressed air quality, ensuring it meets the highest industry standards for pneumatic connections and vacuum applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width of Laval nozzle | 0.45mm | Width dimension | 14mm |
Mounting position | Any | Ejector characteristics | High vacuum Inline |
Structural design | T-shape | Symbol | 00991491 |
Operating pressure for max. suction rate | 6.3bar | Operating pressure | 1bar 8bar |
Operating pressure for max. vacuum | 6bar | Max. vacuum | 86% |
Nominal operating pressure | 6bar | Max. suction rate with respect to atmosphere | 6.1l/min |
Air supply time at nominal operating pressure | 4.7s | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | 0°C 60°C |
Ambient temperature | 0°C 60°C | Max. tightening torque | 0.5Nm |
Product weight | 22g | Type of mounting | With through-hole With accessories |
Pneumatic connection 1 | G1/8 | Pneumatic connection 3 | G1/8 |
Vacuum connection | G1/8 | Material of connecting thread | Wrought aluminum alloy, anodized |
Note on materials | RoHS-compliant | Seals material | NBR |
Female nozzle material | POM | Housing material | POM-reinforced |
Material of jet nozzle | Wrought aluminum alloy | Manufacturer ID | 193544 |
Specifications may be subject to change without notice
