Product Model
vn-05-m-t3-pi4-vi4-ro1
Selling Points

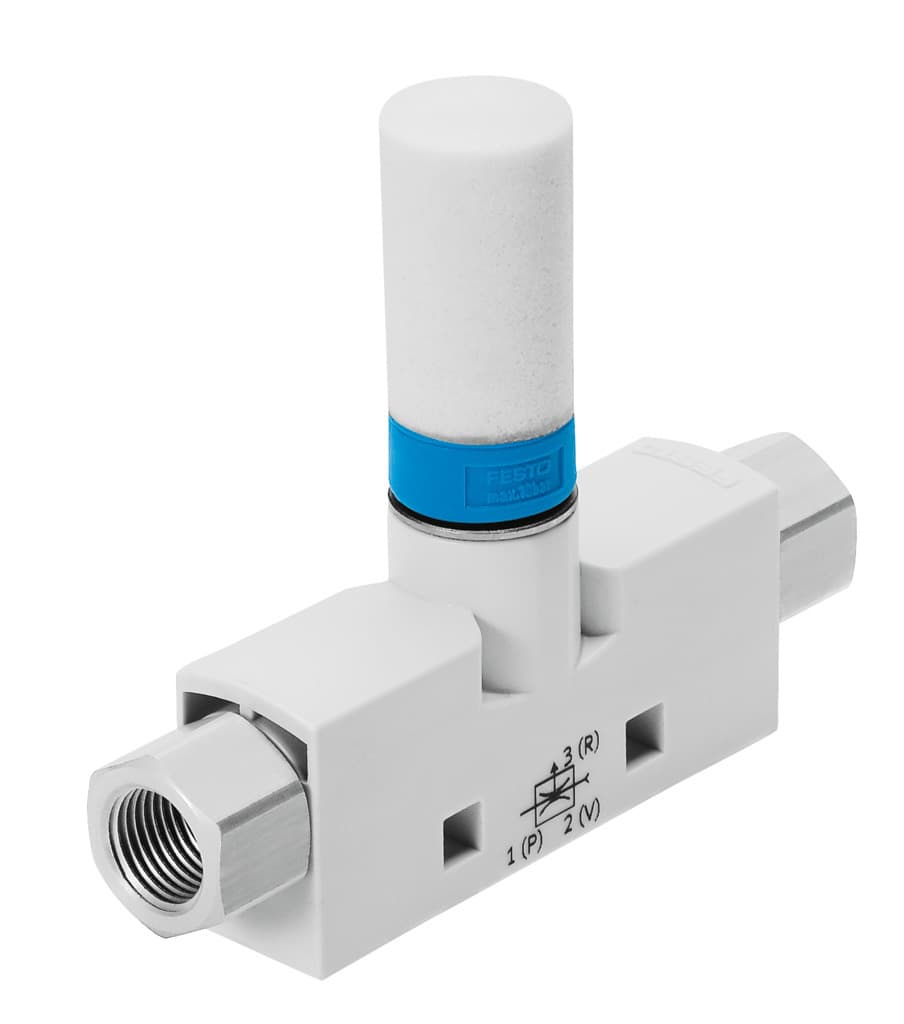

- 1The Festo VN-05-M-T3-PI4-VI4-RI4 vacuum generator is designed for medium temperature applications, operating between 0°C to 60°C, making it suitable for a wide range of industrial settings.
- 2This vacuum generator features a compact design with a product weight of 22 grams, ensuring easy integration into your existing systems without adding bulk.
- 3The product is equipped with G1/8 pneumatic connections, vacuum connection, and throughway bores, providing versatile connectivity options for various pneumatic systems.
- 4Made from RoHS compliant materials like copper and PTFE-free components, the VN-05-M-T3-PI4-VI4-RI4 ensures high-quality performance while meeting environmental standards.
- 5The vacuum generator is constructed with durable materials such as POM reinforced housing and aluminum wrought alloy jet nozzle, ensuring long-lasting performance in demanding industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width of Laval nozzle | 0.45mm | Width dimension | 14mm |
Muffler construction type | Open | Mounting position | Any |
Ejector characteristics | High vacuum Inline | Integrated function | Pneumatic muffler open |
Structural design | T-shape | Symbol | 00991488 |
Operating pressure for max. suction rate | 6.3bar | Operating pressure | 1bar 8bar |
Operating pressure for max. vacuum | 6bar | Max. vacuum | 86% |
Nominal operating pressure | 6bar | Max. suction rate with respect to atmosphere | 6.1l/min |
Air supply time at nominal operating pressure | 4.7s | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | 0°C 60°C |
Noise level at nominal operating pressure | 53dB(A) | Ambient temperature | 0°C 60°C |
Max. tightening torque | 0.5Nm | Product weight | 24g |
Type of mounting | With through-hole With accessories | Pneumatic connection 1 | G1/8 |
Pneumatic connection 3 | Pneumatic muffler open | Vacuum connection | G1/8 |
Material of connecting thread | Wrought aluminum alloy, anodized Brass, nickel-plated | Note on materials | RoHS-compliant |
Seals material | NBR | Female nozzle material | POM |
Housing material | POM-reinforced | Muffler material | PE |
Material of jet nozzle | Wrought aluminum alloy | Manufacturer ID | 193548 |
Specifications may be subject to change without notice
