Product Model
vn-05-m-t3-pq2-vq2-rq2
Selling Points

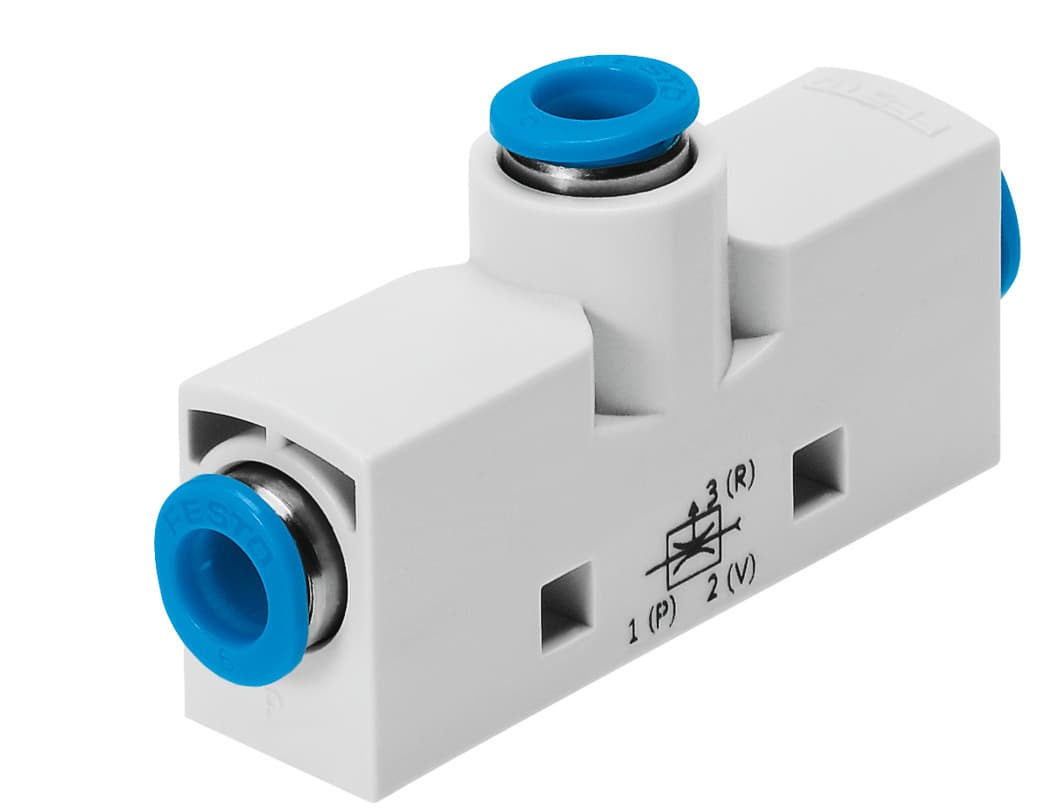

- 1The Festo VN-05-M-T3-PQ2-VQ2-RQ2 vacuum generator delivers high vacuum performance with a maximum vacuum of 86% and an operating pressure of 6 bar.
- 2This in-line vacuum generator features a compact T-shaped design with a width of 14 mm, making it ideal for space-constrained applications.
- 3The VN-05-M-T3-PQ2-VQ2-RQ2 is designed for pneumatic connection, ensuring easy integration into your system with a port for compressed air.
- 4The vacuum generator operates within a temperature range of 0 to 60°C and can be mounted with through holes, offering flexibility in installation.
- 5Classified as CRC 1 (Low corrosion stress), this product ensures reliability in various environments, reducing the risk of corrosion.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width of Laval nozzle | 0.45mm | Width dimension | 14mm |
Mounting position | Any | Ejector characteristics | High vacuum Inline |
Structural design | T-shape | Symbol | 00991491 |
Operating pressure for max. suction rate | 6.3bar | Operating pressure | 1bar 8bar |
Operating pressure for max. vacuum | 6bar | Max. vacuum | 86% |
Nominal operating pressure | 6bar | Max. suction rate with respect to atmosphere | 6.1l/min |
Air supply time at nominal operating pressure | 4.7s | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | 0°C 60°C |
Ambient temperature | 0°C 60°C | Max. tightening torque | 0.5Nm |
Product weight | 22g | Type of mounting | With through-hole With accessories |
Pneumatic connection 1 | QS-6 | Pneumatic connection 3 | QS-6 |
Vacuum connection | QS-6 | Note on materials | RoHS-compliant |
Seals material | NBR | Female nozzle material | POM |
Housing material | POM-reinforced | Material of jet nozzle | Wrought aluminum alloy |
Material of pneumatic fitting | Brass Nickel-plated | Manufacturer ID | 193536 |
Specifications may be subject to change without notice
