Product Model

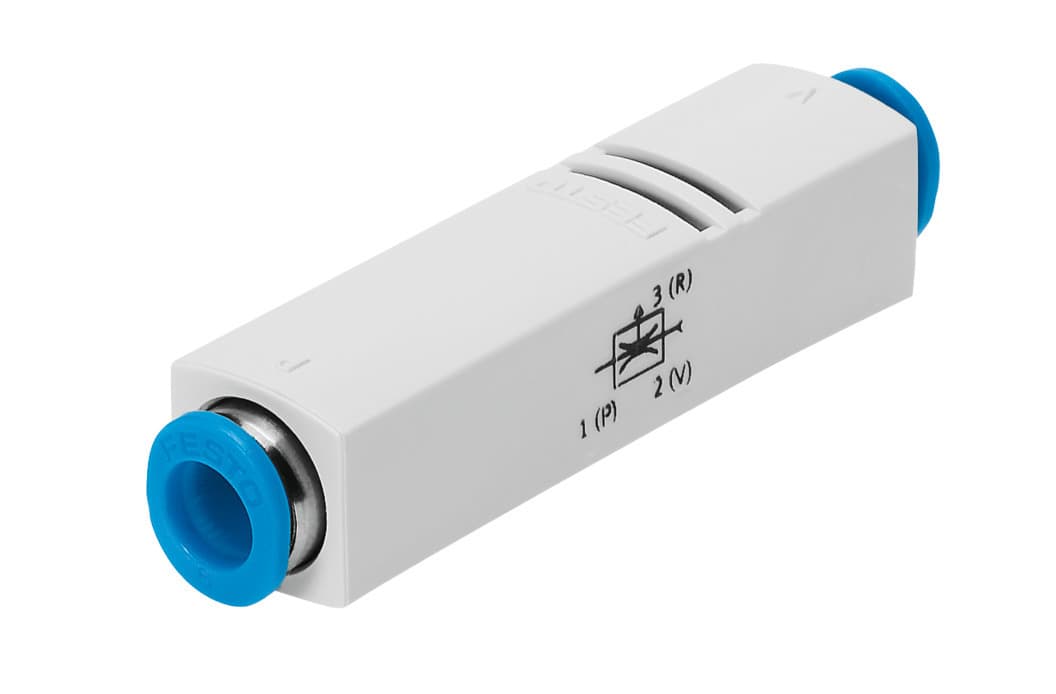

vn-05-n-i3-pq2-vq2
Selling Points
- 1The Festo VN-05-N-I3-PQ2-VQ2 vacuum generator is designed for high vacuum applications, offering reliable performance and efficient operation. Its compact design makes it ideal for inline installations.
- 2This vacuum generator features a plug connector for easy integration into your automation system. It is available in a range of configurations to meet specific application needs.
- 3With its Laval nozzle and grid dimension of 0.45 mm and 13 mm respectively, the VN-05-N-I3-PQ2-VQ2 ensures precise control over vacuum levels. Its straight design structure enhances its durability and performance.
- 4The Festo VN-05-N-I3-PQ2-VQ2 is part of Festo's extensive range of automation solutions, known for their high quality and reliability. It is suitable for various industrial applications requiring precise vacuum control.
- 5This product is backed by Festo's commitment to quality and innovation, ensuring that it meets the highest standards of performance and efficiency in industrial automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width of Laval nozzle | 0.45mm | Width dimension | 13mm |
Mounting position | Any | Ejector characteristics | High suction rate Inline |
Structural design | Straight design | Symbol | 00991491 |
Operating pressure for max. suction rate | 6bar | Operating pressure | 1bar 8bar |
Nominal operating pressure | 6bar | Max. suction rate with respect to atmosphere | 12l/min |
Air supply time at nominal operating pressure | 1.57s | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | 0°C 60°C |
Ambient temperature | 0°C 60°C | Product weight | 16g |
Type of mounting | Line installation | Pneumatic connection 1 | QS-6 |
Pneumatic connection 3 | Not ducted | Vacuum connection | QS-6 |
Note on materials | RoHS-compliant | Seals material | NBR |
Female nozzle material | POM | Housing material | POM-reinforced |
Material of jet nozzle | Wrought aluminum alloy | Material of pneumatic fitting | Brass Nickel-plated |
Manufacturer ID | 193635 |
Specifications may be subject to change without notice
