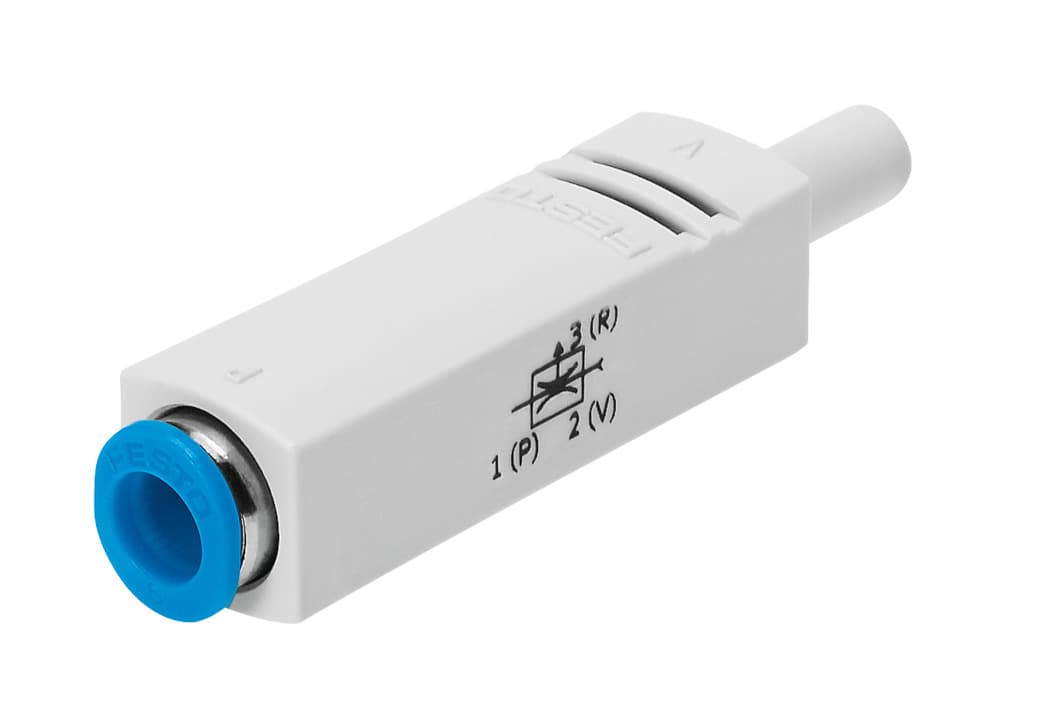

Festo VN-05-N-I3-PQ2-VT2 Vacuum Generator

Selling Points

1The Festo VN-05-N-I3-PQ2-VT2 Vacuum Generator offers reliable quality and efficient performance, making it a top choice for industrial applications.
2This vacuum generator is designed with advanced technology to provide precise control and consistent operation, ensuring high productivity.
3The VN-05-N-I3-PQ2-VT2 is built with durable components, ensuring long-lasting performance and minimal maintenance.
4It features a user-friendly interface, making it easy to operate and integrate into existing systems, enhancing overall efficiency.
5The Festo VN-05-N-I3-PQ2-VT2 is engineered to meet the highest standards of quality, ensuring it can handle demanding industrial tasks with ease.
6
7
8

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Nominal width of Laval nozzle	0.45mm	Width dimension	13mm
Mounting position	Any	Ejector characteristics	High suction rate Inline
Structural design	Straight design	Symbol	00991491
Operating pressure for max. suction rate	6bar	Operating pressure	1bar 8bar
Nominal operating pressure	6bar	Max. suction rate with respect to atmosphere	12l/min
Air supply time at nominal operating pressure	1.57s	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication not possible	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Temperature of medium	0°C 60°C
Ambient temperature	0°C 60°C	Product weight	12g
Type of mounting	Line installation	Pneumatic connection 1	QS-6
Pneumatic connection 3	Not ducted	Vacuum connection	Push-in sleeve QS-6
Note on materials	RoHS-compliant	Seals material	NBR
Female nozzle material	POM	Housing material	POM-reinforced
Material of jet nozzle	Wrought aluminum alloy	Material of pneumatic fitting	Brass Nickel-plated
Manufacturer ID	193637

Specifications may be subject to change without notice
