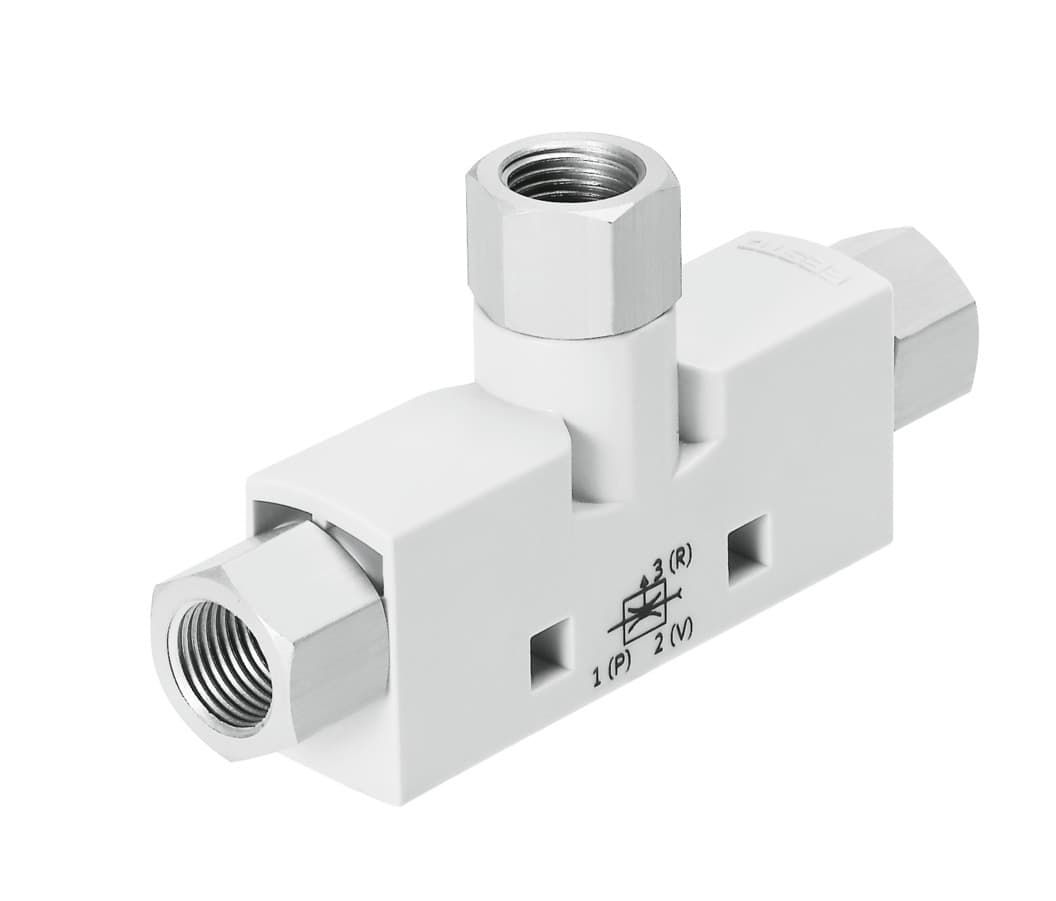

Festo VN-05-N-T3-PI4-VI4-RI4 Vacuum Generator

Selling Points

1The Festo VN-05-N-T3-PI4-VI4-RI4 vacuum generator delivers high vacuum performance, making it suitable for demanding applications.
2This T-shaped vacuum generator features a female thread and can be assembled in any position, offering flexibility in installation.
3With an operating pressure range of 1 to 8 bar and a maximum vacuum of 88%, it ensures efficient operation in various environments.
4The VN-05-N-T3-PI4-VI4-RI4 has a nominal size of 0.7 mm and a grid dimension of 14 mm, making it compact and space-efficient.
5Designed to operate with compressed air in accordance with ISO8573-1:2010 [7:4:4], this vacuum generator ensures reliable performance in different settings.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Nominal width of Laval nozzle	0.45mm	Width dimension	14mm
Mounting position	Any	Ejector characteristics	High suction rate Inline
Structural design	T-shape	Symbol	00991491
Operating pressure for max. suction rate	6bar	Operating pressure	1bar 8bar
Nominal operating pressure	6bar	Max. suction rate with respect to atmosphere	12l/min
Air supply time at nominal operating pressure	1.57s	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication not possible	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Temperature of medium	0°C 60°C
Ambient temperature	0°C 60°C	Max. tightening torque	0.5Nm
Product weight	22g	Type of mounting	With through-hole With accessories
Pneumatic connection 1	G1/8	Pneumatic connection 3	G1/8
Vacuum connection	G1/8	Material of connecting thread	Wrought aluminum alloy, anodized
Note on materials	RoHS-compliant	Seals material	NBR
Female nozzle material	POM	Housing material	POM-reinforced
Material of jet nozzle	Wrought aluminum alloy	Manufacturer ID	193627

Specifications may be subject to change without notice
