Product Model

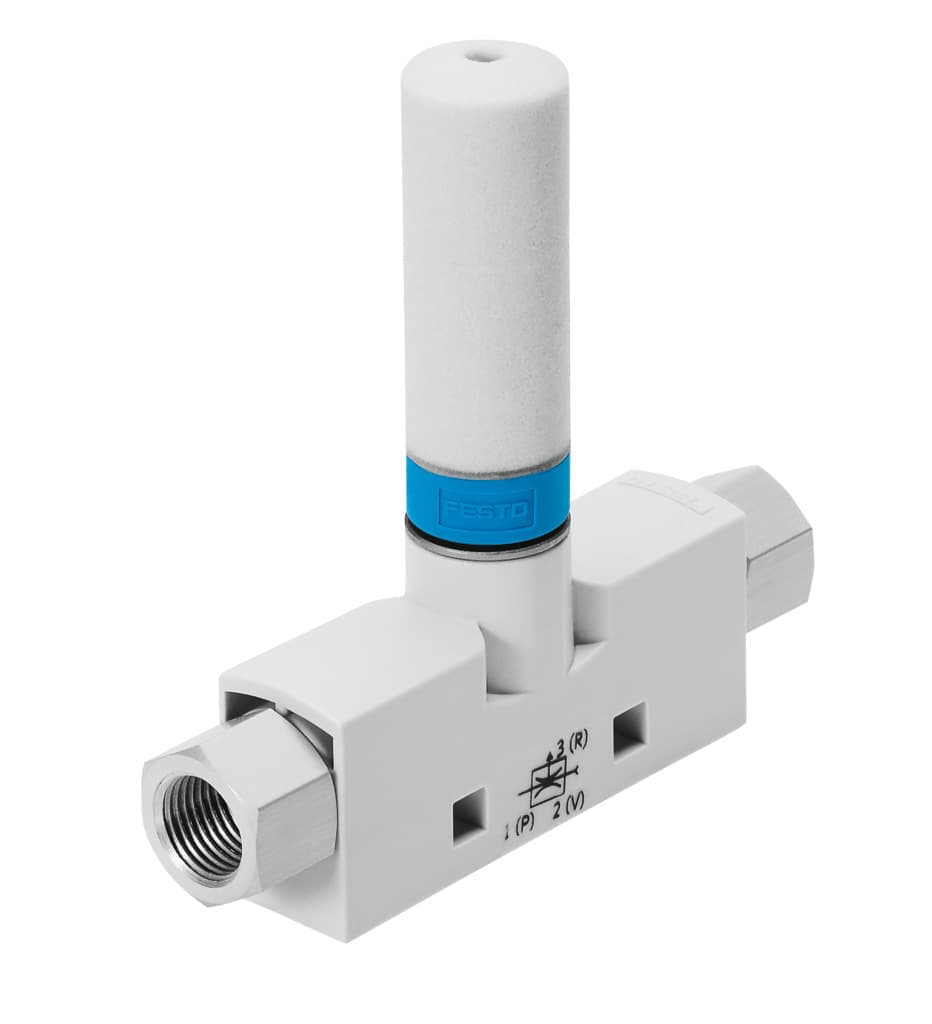

vn-05-n-t3-pi4-vi4-ro1
Selling Points
- 1The Festo VN-05-N-T3-PI4-VI4-RO1 vacuum generator delivers high vacuum levels, making it ideal for various industrial applications that require precise suction control.
- 2Designed with a robust construction, this vacuum generator ensures reliable operation under a wide range of operating pressures and temperatures, from 0°C to 60°C.
- 3With a nominal size of 0.45 mm and grid dimension of 14 mm, the VN-05-N-T3-PI4-VI4-RO1 is compact and easy to integrate into your automation systems.
- 4Equipped with pneumatic connections (G1/8) and vacuum connections (G1/8), this generator offers flexible connectivity options for seamless integration with your existing systems.
- 5The VN-05-N-T3-PI4-VI4-RO1 is compliant with ISO 8573-1:2010 and VDMA24364-B1/B2-L, ensuring it meets the highest standards for compressed air quality and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width of Laval nozzle | 0.45mm | Width dimension | 14mm |
Muffler construction type | Open | Mounting position | Any |
Ejector characteristics | High suction rate Inline | Integrated function | Pneumatic muffler open |
Structural design | T-shape | Symbol | 00991488 |
Operating pressure for max. suction rate | 6bar | Operating pressure | 1bar 8bar |
Nominal operating pressure | 6bar | Max. suction rate with respect to atmosphere | 12l/min |
Air supply time at nominal operating pressure | 1.57s | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | 0°C 60°C |
Noise level at nominal operating pressure | 48dB(A) | Ambient temperature | 0°C 60°C |
Max. tightening torque | 0.5Nm | Product weight | 24g |
Type of mounting | With through-hole With accessories | Pneumatic connection 1 | G1/8 |
Pneumatic connection 3 | Pneumatic muffler open | Vacuum connection | G1/8 |
Material of connecting thread | Wrought aluminum alloy, anodized Brass, nickel-plated | Note on materials | RoHS-compliant |
Seals material | NBR | Female nozzle material | POM |
Housing material | POM-reinforced | Muffler material | PE |
Material of jet nozzle | Wrought aluminum alloy | Manufacturer ID | 193631 |
Specifications may be subject to change without notice
