Product Model

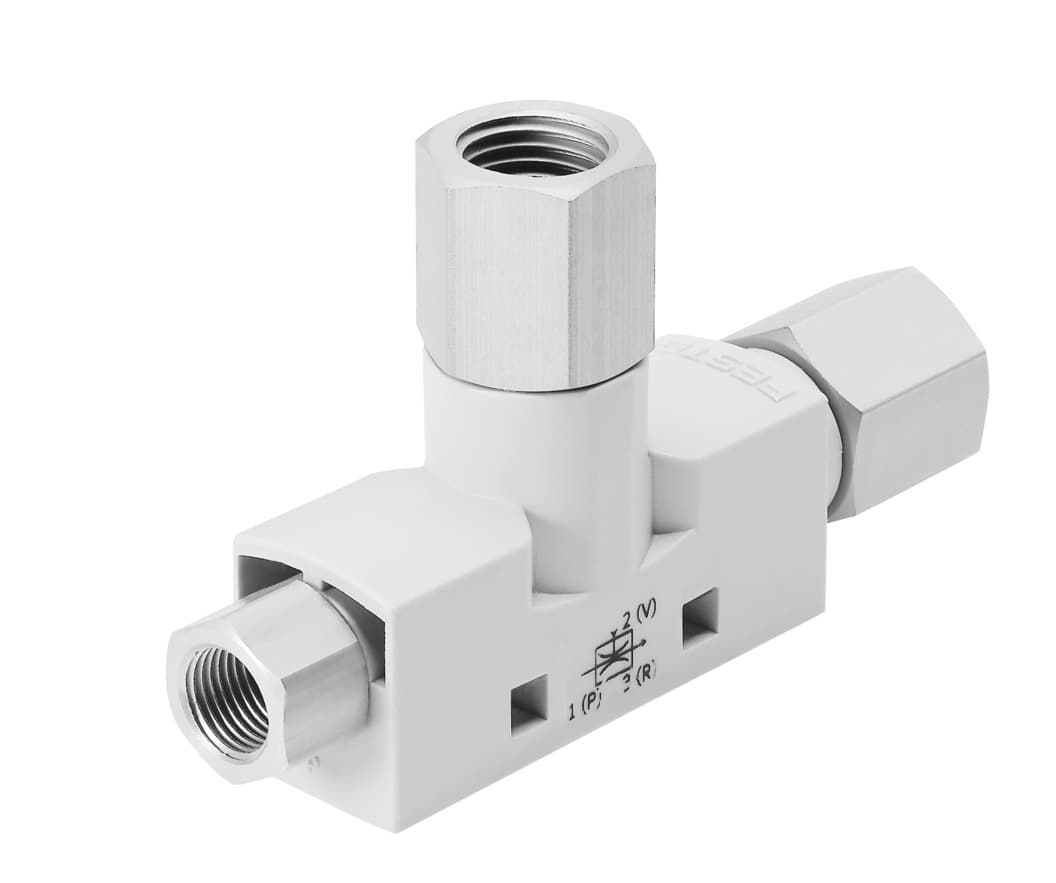

vn-07-h-t2-pi2-vi2-ri2
Selling Points
- 1The VN-07-H-T2-PI2-VI2-RI2 is designed for high-precision automation, ensuring accurate control and reliable performance in industrial applications.
- 2This component features advanced pneumatic and electrical integration, allowing for seamless communication and efficient operation.
- 3With standardized IO-Link technology, the VN-07-H-T2-PI2-VI2-RI2 simplifies communication with sensors and actuators, reducing complexity and material requirements.
- 4Festo's commitment to quality ensures that the VN-07-H-T2-PI2-VI2-RI2 meets industry-leading standards, providing a holistic approach to quality management from production to delivery.
- 5The VN-07-H-T2-PI2-VI2-RI2 is part of Festo's extensive core range, offering fast shipping and attractive pricing, making it an ideal choice for immediate delivery and cost-effective solutions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width of Laval nozzle | 0.7mm | Width dimension | 10mm |
Mounting position | Any | Ejector characteristics | High vacuum Standard |
Structural design | T-shape | Symbol | 00991490 |
Operating pressure for max. suction rate | 2.1bar | Operating pressure | 1bar 8bar |
Operating pressure for max. vacuum | 4.7bar | Max. vacuum | 88% |
Nominal operating pressure | 6bar | Max. suction rate with respect to atmosphere | 16l/min |
Air supply time at nominal operating pressure | 1.9s | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | 0°C 60°C |
Ambient temperature | 0°C 60°C | Max. tightening torque | 0.5Nm |
Product weight | 13g | Type of mounting | With through-hole With accessories |
Pneumatic connection 1 | M5 | Pneumatic connection 3 | M5 |
Vacuum connection | M5 | Material of connecting thread | Wrought aluminum alloy, anodized |
Note on materials | RoHS-compliant | Seals material | NBR |
Female nozzle material | POM | Housing material | POM-reinforced |
Material of jet nozzle | Wrought aluminum alloy | Manufacturer ID | 526103 |
Specifications may be subject to change without notice
