Product Model
vn-07-h-t3-pq2-vq2-ro1-b
Selling Points
- 1The Festo VN-07-H-T3-PQ2-VQ2-RO1-M vacuum generator operates with compressed air to ISO 8573-1:2010, ensuring reliable performance in various industrial settings.
- 2With a corrosion-resistant class KBK of 1, this vacuum generator is designed to withstand minimal corrosion stress, making it ideal for applications requiring durability.
- 3Weighing only 61 grams, the Festo VN-07-H-T3-PQ2-VQ2-RO1-M is a compact solution for your automation needs, perfect for space-constrained environments.
- 4Featuring plug connections and throughway bores, this vacuum generator is easy to install and integrate into your existing systems, reducing setup time and effort.
- 5Constructed from materials like PA reinforced, POM reinforced, and NBR seals, the Festo VN-07-H-T3-PQ2-VQ2-RO1-M ensures high-quality performance and longevity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width of Laval nozzle | 0.7mm | Width dimension | 14mm |
Muffler construction type | Open | Mounting position | Any |
Ejector characteristics | Standard High negative pressure | Manual override | Non-detenting |
Integrated function | Ejector pulse valve, pneumatic Shut off valve, electric Pneumatic muffler open | Structural design | T-shape |

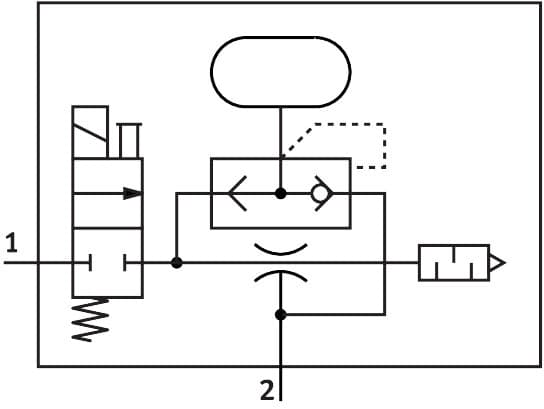

Symbol | 00991944 | Valve function | 2/2 |
Operating pressure for max. suction rate | 3bar | Operating pressure | 2bar 8bar |
Operating pressure for max. vacuum | 4.4bar | Max. vacuum | 92% |
Nominal operating pressure | 6bar | Max. suction rate with respect to atmosphere | 16.2l/min |
Air supply time at nominal operating pressure | 1.69s | DC operating voltage range | 21.6V 26.4V |
Electrical power consumption | 1.2W | Duty cycle | 100% |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication not possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | 0°C 50°C | Noise level at nominal operating pressure | 65dB(A) |
Degree of protection | IP40 | Ambient temperature | 0°C 50°C |
Product weight | 63g | Electrical connection | Plug |
Type of mounting | With through-hole With H-rail With accessories | Pneumatic connection 1 | QS-6 |
Pneumatic connection 3 | Pneumatic muffler open | Vacuum connection | QS-6 |
Material of connecting thread | Wrought aluminum alloy, anodized | Note on materials | RoHS-compliant |
Seals material | NBR | Female nozzle material | POM |
Housing material | PA-reinforced POM-reinforced | Muffler material | PE |
Material of screws | Steel | Material of jet nozzle | Wrought aluminum alloy |
Material of pneumatic fitting | Brass Nickel-plated | Manufacturer ID | 532630 |
Specifications may be subject to change without notice
