Product Model
vn-07-l-t3-pq2-va4-ro1
Selling Points

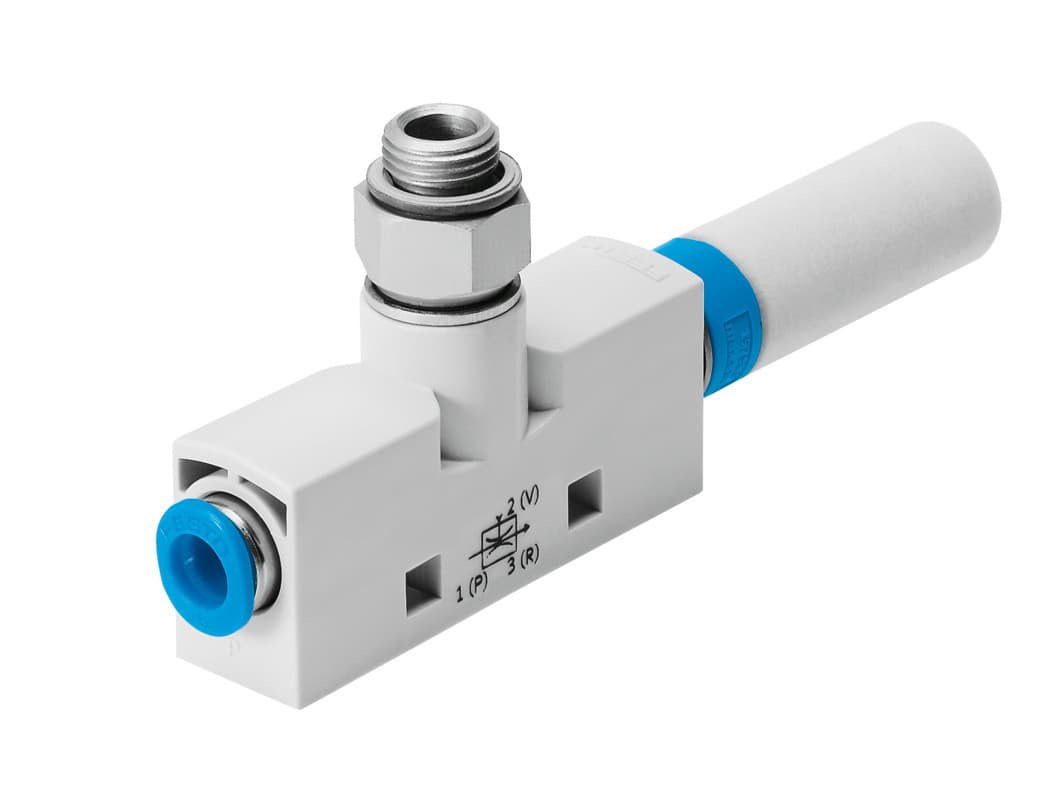

- 1The Festo VN-07-L-T3-PQ2-VQ2-RO1-B vacuum generator provides high-performance vacuum generation, ensuring efficient operation in various automation applications.
- 2With its open muffler construction and any mounting position, this vacuum generator offers flexibility in installation, making it suitable for diverse industrial settings.
- 3The nominal width of the Laval nozzle is 0.7 mm, and the width dimension is 14 mm, ensuring standardized dimensions for easy integration into existing systems.
- 4The standard ejector characteristics of the VN-07-L-T3-PQ2-VQ2-RO1-B ensure reliable operation, providing consistent performance in demanding applications.
- 5Festo's commitment to simplicity and efficiency extends to maintenance, making it easier to identify and replace required parts, ensuring minimal downtime and maximum productivity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width of Laval nozzle | 0.7mm | Width dimension | 14mm |
Muffler construction type | Open | Mounting position | Any |
Ejector characteristics | High suction rate Standard | Integrated function | Pneumatic muffler open |
Structural design | T-shape | Symbol | 00991489 |
Operating pressure for max. suction rate | 6.2bar | Operating pressure | 1bar 8bar |
Nominal operating pressure | 6bar | Max. suction rate with respect to atmosphere | 38.8l/min |
Air supply time at nominal operating pressure | 0.5s | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | 0°C 60°C |
Noise level at nominal operating pressure | 66dB(A) | Ambient temperature | 0°C 60°C |
Max. tightening torque | 0.5Nm | Product weight | 26g |
Type of mounting | With through-hole With accessories | Pneumatic connection 1 | QS-6 |
Pneumatic connection 3 | Pneumatic muffler open | Vacuum connection | G1/8 |
Material of connecting thread | Wrought aluminum alloy Brass, nickel-plated | Note on materials | RoHS-compliant |
Seals material | NBR | Female nozzle material | POM |
Housing material | POM-reinforced | Muffler material | PE |
Material of jet nozzle | Wrought aluminum alloy | Material of pneumatic fitting | Brass Nickel-plated |
Manufacturer ID | 193610 |
Specifications may be subject to change without notice
