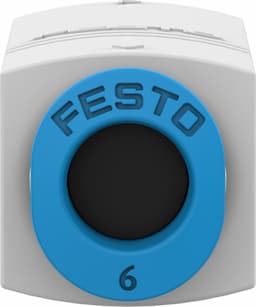

Festo VN-07-M-I3-PQ2-VQ2 Vacuum Generator

Selling Points

1The Festo VN-07-M-I3-PQ2-VQ2 vacuum generator delivers high vacuum performance, making it suitable for demanding applications.
2With a width of 10 mm, this vacuum generator is designed to be compact and space-efficient, perfect for integration into various systems.
3Equipped with a plug connector, the VN-07-M-I3-PQ2-VQ2 offers easy and secure connections, reducing setup time and ensuring reliable operation.
4This vacuum generator can be used in a variety of applications, including inline configurations, making it a versatile solution for different needs.
5Built with high-quality materials, the VN-07-M-I3-PQ2-VQ2 ensures long-lasting performance and consistent results in high vacuum environments.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Nominal width of Laval nozzle	0.7mm	Width dimension	13mm
Mounting position	Any	Ejector characteristics	High vacuum Inline
Structural design	Straight design	Symbol	00991491
Operating pressure for max. suction rate	7bar	Operating pressure	1bar 8bar
Operating pressure for max. vacuum	5.8bar	Max. vacuum	86%
Nominal operating pressure	6bar	Max. suction rate with respect to atmosphere	13.5l/min
Air supply time at nominal operating pressure	2s	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication not possible	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Temperature of medium	0°C 60°C
Ambient temperature	0°C 60°C	Product weight	16g
Type of mounting	Line installation	Pneumatic connection 1	QS-6
Pneumatic connection 3	Not ducted	Vacuum connection	QS-6
Note on materials	RoHS-compliant	Seals material	NBR
Female nozzle material	POM	Housing material	POM-reinforced
Material of jet nozzle	Wrought aluminum alloy	Material of pneumatic fitting	Brass Nickel-plated
Manufacturer ID	193553

Specifications may be subject to change without notice
