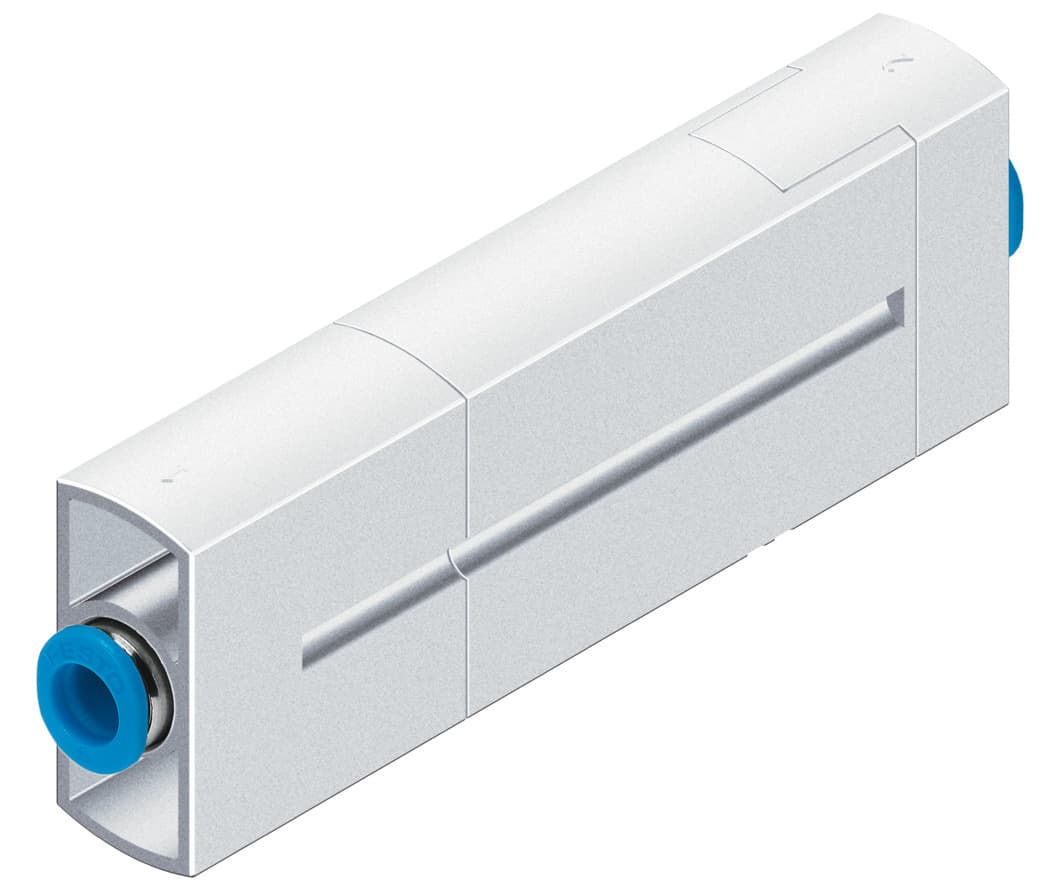

Product Model
vn-07-m-i3-pq2-vq2-a
Selling Points
- 1The Festo VN-07-M-I3-PQ2-VQ2 vacuum generator is designed for high vacuum applications, ensuring optimal performance in demanding environments.
- 2With a width of 10 mm, this vacuum generator is compact and versatile, making it suitable for a variety of industrial settings.
- 3Equipped with a plug connector, the VN-07-M-I3-PQ2-VQ2 offers easy installation and connection to your pneumatic system.
- 4This vacuum generator operates in-line, providing efficient and continuous vacuum generation for your industrial processes.
- 5Featuring a high vacuum ejector characteristic, the VN-07-M-I3-PQ2-VQ2 ensures reliable operation and consistent performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width of Laval nozzle | 0.7mm | Width dimension | 14.5mm |
Mounting position | Any | Ejector characteristics | Inline High negative pressure |
Integrated function | Ejector pulse valve, pneumatic | Structural design | Straight design |
Symbol | 00991484 | Operating pressure for max. suction rate | 2bar |
Operating pressure | 1bar 8bar | Operating pressure for max. vacuum | 4.3bar |
Max. vacuum | 93% | Nominal operating pressure | 6bar |
Max. suction rate with respect to atmosphere | 16.6l/min | Air supply time at nominal operating pressure | 1.69s |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication not possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | 0°C 60°C | Cleaning advice | Soap suds |
Noise level at nominal operating pressure | 75dB(A) | Ambient temperature | 0°C 60°C |
Product weight | 41g | Type of mounting | Line installation |
Pneumatic connection 1 | QS-6 | Vacuum connection | QS-6 |
Material of connecting thread | Wrought aluminum alloy, anodized | Note on materials | RoHS-compliant |
Seals material | NBR | Female nozzle material | POM |
Housing material | PA-reinforced POM-reinforced | Material of screws | Steel |
Material of jet nozzle | Wrought aluminum alloy | Material of pneumatic fitting | Brass Nickel-plated |
Manufacturer ID | 532634 |
Specifications may be subject to change without notice
