Product Model

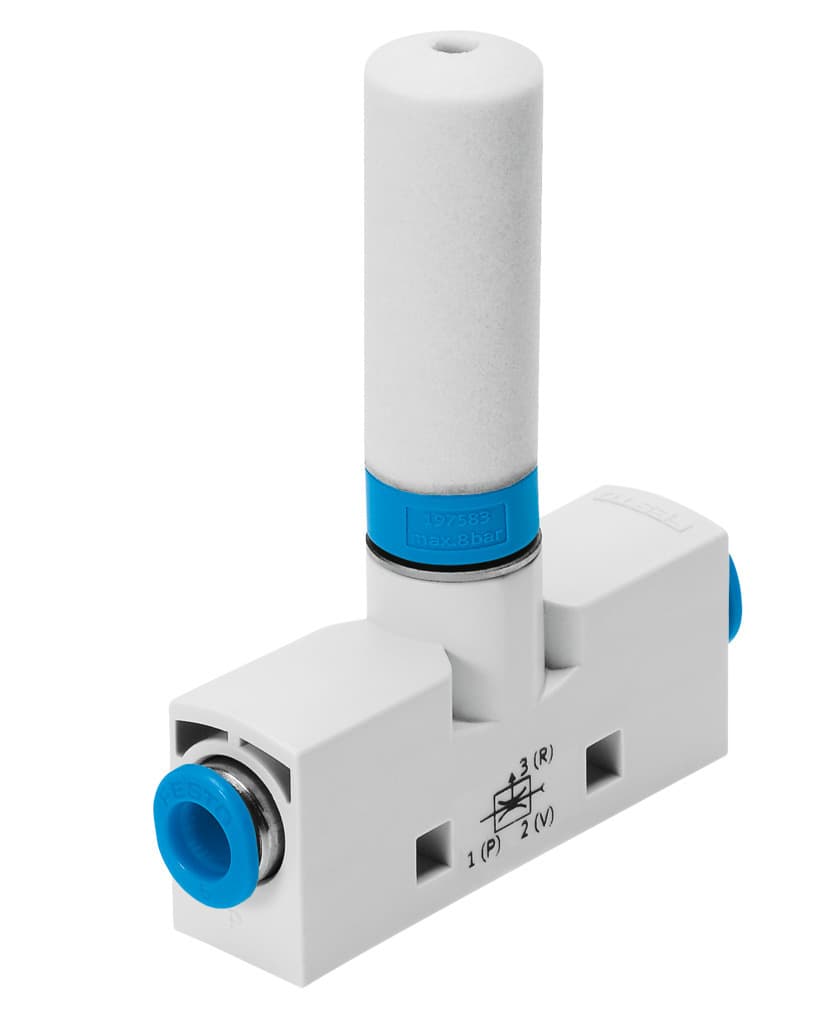

vn-07-m-t3-pq2-vq2-ro1
Selling Points
- 1The Festo VN-07-M-T3-PQ2-VQ2-RO1 offers advanced parameterization options for precise control and monitoring. Enhance your automation system with our detailed parameter descriptions.
- 2With the VN-07-M-T3-PQ2-VQ2-RO1, you can customize your system to meet specific needs. From setpoints to hysteresis tables, our parameters ensure seamless operation.
- 3The VN-07-M-T3-PQ2-VQ2-RO1 supports IO-Link parameters, allowing for efficient data transfer and real-time monitoring. Streamline your automation process with our robust system.
- 4Our detailed IODD (Device Description) file provides a comprehensive overview of the VN-07-M-T3-PQ2-VQ2-RO1's parameters. Ensure you have all the technical specifications at your fingertips.
- 5Festo's VN-07-M-T3-PQ2-VQ2-RO1 is designed for tech-savvy users who require precise control and customization. Maximize your system's potential with our advanced parameterization options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width of Laval nozzle | 0.7mm | Width dimension | 14mm |
Muffler construction type | Open | Mounting position | Any |
Ejector characteristics | High vacuum Inline | Integrated function | Pneumatic muffler open |
Structural design | T-shape | Symbol | 00991488 |
Operating pressure for max. suction rate | 7bar | Operating pressure | 1bar 8bar |
Operating pressure for max. vacuum | 5.8bar | Max. vacuum | 86% |
Nominal operating pressure | 6bar | Max. suction rate with respect to atmosphere | 13.5l/min |
Air supply time at nominal operating pressure | 2.1s | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | 0°C 60°C |
Noise level at nominal operating pressure | 59dB(A) | Ambient temperature | 0°C 60°C |
Max. tightening torque | 0.5Nm | Product weight | 24g |
Type of mounting | With through-hole With accessories | Pneumatic connection 1 | QS-6 |
Pneumatic connection 3 | Pneumatic muffler open | Vacuum connection | QS-6 |
Material of connecting thread | Brass, nickel-plated | Note on materials | RoHS-compliant |
Seals material | NBR | Female nozzle material | POM |
Housing material | POM-reinforced | Muffler material | PE |
Material of jet nozzle | Wrought aluminum alloy | Material of pneumatic fitting | Brass Nickel-plated |
Manufacturer ID | 193541 |
Specifications may be subject to change without notice
