Product Model

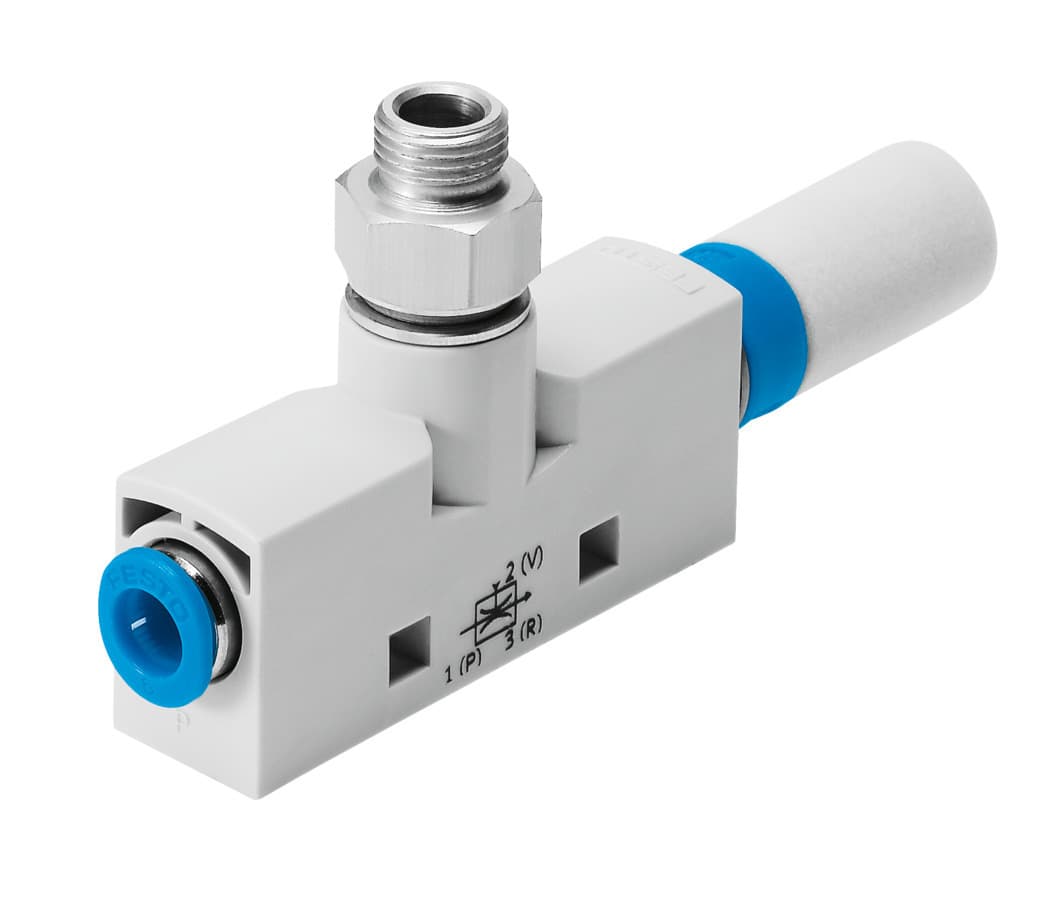

vn-10-h-t3-pq2-va4-ro1
Selling Points
- 1The VN-10-H-T3-PQ2-VA4-RO1 features a high-performance ejector, ensuring efficient vacuum generation for various industrial applications.
- 2This vacuum generator offers versatile mounting positions, allowing for easy integration into different systems and environments.
- 3The open muffler construction type enhances the overall performance and efficiency of the VN-10-H-T3-PQ2-VA4-RO1.
- 4With a nominal width of 0.95 mm and a width dimension of 14 mm, this vacuum generator is designed to be compact and space-efficient.
- 5Built with high-quality components, the VN-10-H-T3-PQ2-VA4-RO1 ensures reliable operation and long service life, making it a trusted choice for industrial automation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width of Laval nozzle | 0.95mm | Width dimension | 14mm |
Muffler construction type | Open | Mounting position | Any |
Ejector characteristics | High vacuum Standard | Integrated function | Pneumatic muffler open |
Structural design | T-shape | Symbol | 00991489 |
Operating pressure for max. suction rate | 3.1bar | Operating pressure | 1bar 8bar |
Operating pressure for max. vacuum | 4.5bar | Max. vacuum | 89% |
Nominal operating pressure | 6bar | Max. suction rate with respect to atmosphere | 25l/min |
Air supply time at nominal operating pressure | 1.1s | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | 0°C 60°C |
Noise level at nominal operating pressure | 74dB(A) | Ambient temperature | 0°C 60°C |
Max. tightening torque | 0.5Nm | Product weight | 26g |
Type of mounting | With through-hole With accessories | Pneumatic connection 1 | QS-6 |
Pneumatic connection 3 | Pneumatic muffler open | Vacuum connection | G1/8 |
Material of connecting thread | Wrought aluminum alloy Brass, nickel-plated | Note on materials | RoHS-compliant |
Seals material | NBR | Female nozzle material | POM |
Housing material | POM-reinforced | Muffler material | PE |
Material of jet nozzle | Wrought aluminum alloy | Material of pneumatic fitting | Brass Nickel-plated |
Manufacturer ID | 193528 |
Specifications may be subject to change without notice
