Product Model
vn-10-h-t3-pq2-vq2-ro1-f1a
Selling Points

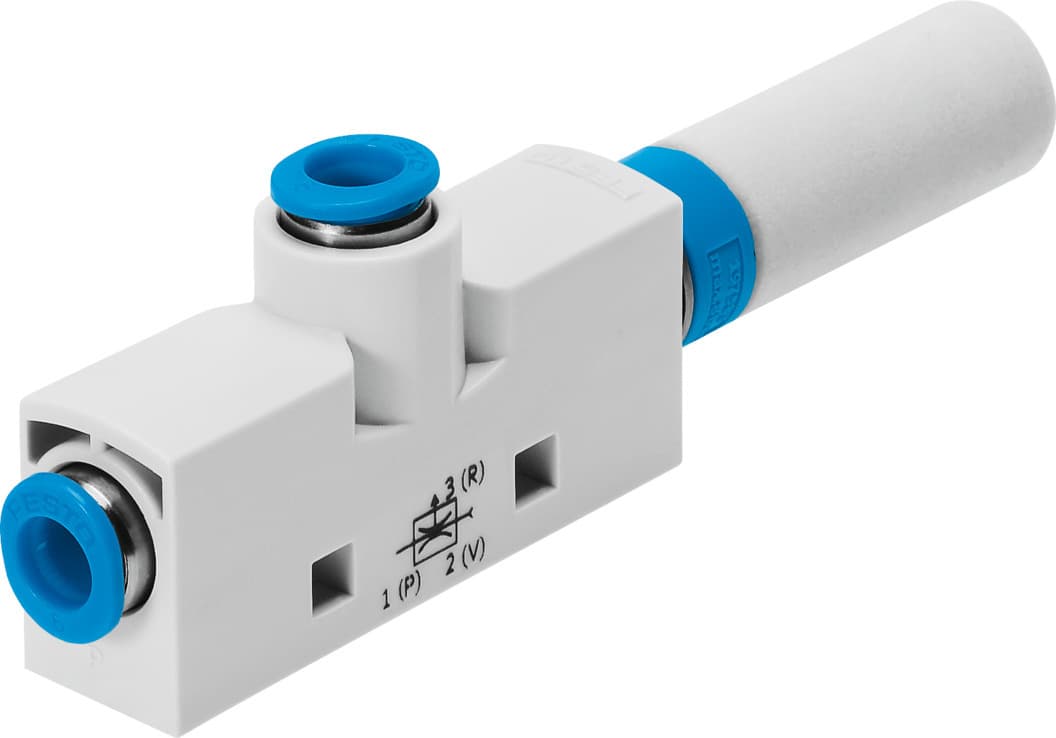

- 1The Festo VN-10-H-T3-PQ2-VQ2-RO1 vacuum generator delivers exceptional high vacuum performance, making it ideal for various industrial applications.
- 2With a T-shaped design and open silencer, this vacuum generator offers flexibility in installation and operation, ensuring it can be used in any assembly position.
- 3This vacuum generator operates within a standard pressure range of 1 to 8 bar, ensuring consistent performance across different environments.
- 4The VN-10-H-T3-PQ2-VQ2-RO1 achieves a maximum suction rate of 25 l/min, making it efficient for handling high-volume vacuum needs.
- 5Built with high-quality materials, this vacuum generator is designed for long-lasting performance and durability, ensuring reliability in demanding applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width of Laval nozzle | 0.95mm | Width dimension | 14mm |
Muffler construction type | Open | Mounting position | Any |
Ejector characteristics | High vacuum Standard | Integrated function | Pneumatic muffler open |
Structural design | T-shape | Symbol | 00991489 |
Operating pressure for max. suction rate | 3.1bar | Operating pressure | 1bar 8bar |
Operating pressure for max. vacuum | 4.5bar | Max. vacuum | 89% |
Nominal operating pressure | 6bar | Max. suction rate with respect to atmosphere | 25l/min |
Air supply time at nominal operating pressure | 1.1s | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils |
Temperature of medium | 0°C 60°C | Noise level at nominal operating pressure | 74dB(A) |
Ambient temperature | 0°C 60°C | Max. tightening torque | 0.5Nm |
Product weight | 24g | Type of mounting | With through-hole With accessories |
Pneumatic connection 1 | QS-6 | Pneumatic connection 3 | Pneumatic muffler open |
Vacuum connection | QS-6 | Material of connecting thread | POM |
Note on materials | RoHS-compliant | Seals material | NBR |
Female nozzle material | POM | Housing material | POM-reinforced |
Muffler material | PE | Material of jet nozzle | Wrought aluminum alloy |
Manufacturer ID | 8187684 |
Specifications may be subject to change without notice
