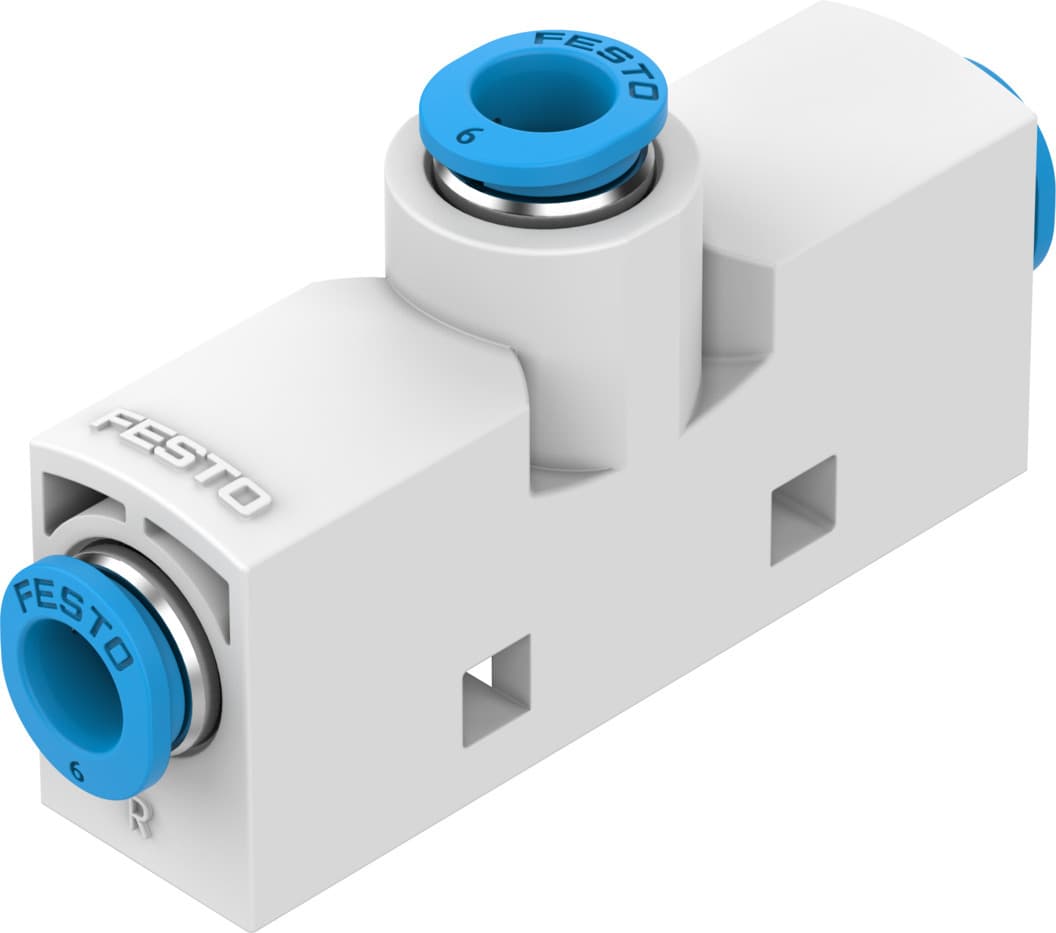

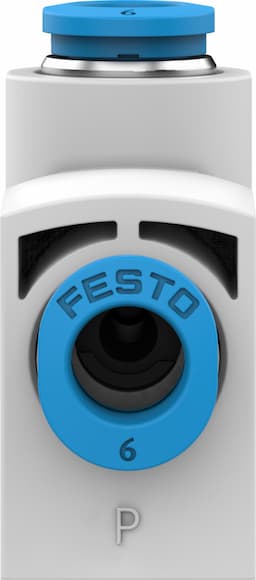

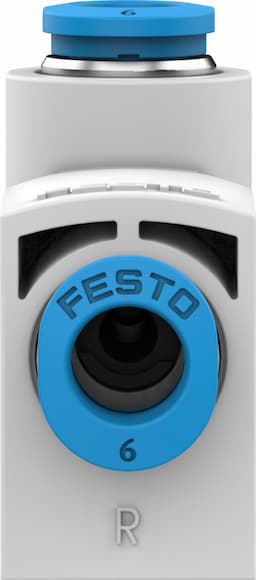

Product Model
vn-10-h-t3-pq2-vq2-rq2
Selling Points
- 1The VN-10-H-T3-PQ2-VQ2-RQ2 vacuum generator delivers high vacuum standards, ensuring optimal performance in various industrial applications.
- 2With a nominal width of 0.95 mm and a grid dimension of 14 mm, this vacuum generator offers standardized dimensions for easy integration into your system.
- 3The VN-10-H-T3-PQ2-VQ2-RQ2 can be mounted in any position, providing flexibility in its application across different setups.
- 4Operating pressures range from 1 to 8 bar, and the maximum vacuum achieved is 0.89 bar, ensuring efficient operation and reliable performance.
- 5Designed to work with compressed air in accordance with ISO8573-1:2010 [7:4:4], this vacuum generator ensures compatibility with standard air supply systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width of Laval nozzle | 0.95mm | Width dimension | 14mm |
Mounting position | Any | Ejector characteristics | High vacuum Standard |
Structural design | T-shape | Symbol | 00991490 |
Operating pressure for max. suction rate | 3.1bar | Operating pressure | 1bar 8bar |
Operating pressure for max. vacuum | 4.5bar | Max. vacuum | 89% |
Nominal operating pressure | 6bar | Max. suction rate with respect to atmosphere | 25l/min |
Air supply time at nominal operating pressure | 1.1s | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | 0°C 60°C |
Ambient temperature | 0°C 60°C | Max. tightening torque | 0.5Nm |
Product weight | 22g | Type of mounting | With through-hole With accessories |
Pneumatic connection 1 | QS-6 | Pneumatic connection 3 | QS-6 |
Vacuum connection | QS-6 | Note on materials | RoHS-compliant |
Seals material | NBR | Female nozzle material | POM |
Housing material | POM-reinforced | Material of jet nozzle | Wrought aluminum alloy |
Material of pneumatic fitting | Brass Nickel-plated | Manufacturer ID | 193480 |
Specifications may be subject to change without notice
