Product Model

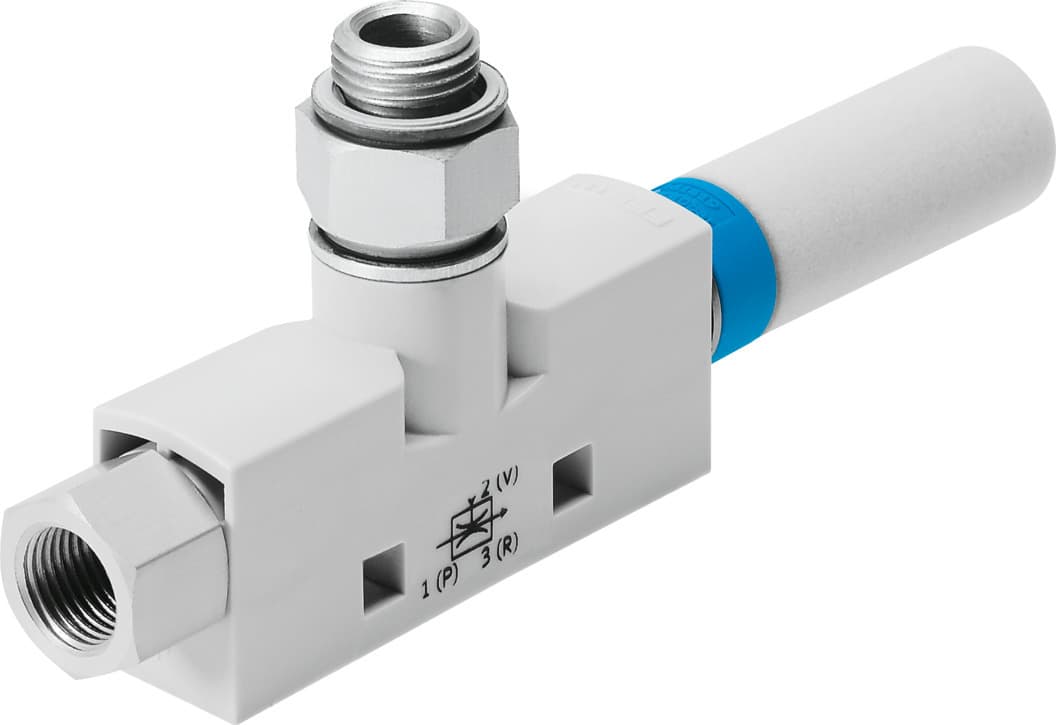

vn-10-l-t3-pi4-va4-ro1
Selling Points
- 1The Festo VN-10-L-T3-PI4-VA4-RO1 is designed for precise control in industrial automation, offering robust and reliable performance in various applications.
- 2This product features standardized IO-Link technology, ensuring simple and economical communication with sensors and actuators, as specified in IEC 61131-9.
- 3The VN-10-L-T3-PI4-VA4-RO1 supports a wide range of process data variables, including flow monitoring, temperature measurement, and volume impulse, making it versatile for different industrial needs.
- 4With its advanced parameterization options, users can customize the device to meet specific application requirements, enhancing efficiency and accuracy in industrial processes.
- 5The product's detailed description file (IODD) provides comprehensive information on its parameters, ensuring seamless integration and optimal performance in complex automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width of Laval nozzle | 0.95mm | Width dimension | 14mm |
Muffler construction type | Open | Mounting position | Any |
Ejector characteristics | High suction rate Standard | Integrated function | Pneumatic muffler open |
Structural design | T-shape | Symbol | 00991489 |
Operating pressure for max. suction rate | 4bar | Operating pressure | 1bar 8bar |
Nominal operating pressure | 6bar | Max. suction rate with respect to atmosphere | 62.7l/min |
Air supply time at nominal operating pressure | 0.46s | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | 0°C 60°C |
Noise level at nominal operating pressure | 73dB(A) | Ambient temperature | 0°C 60°C |
Max. tightening torque | 0.5Nm | Product weight | 26g |
Type of mounting | With through-hole With accessories | Pneumatic connection 1 | G1/8 |
Pneumatic connection 3 | Pneumatic muffler open | Vacuum connection | G1/8 |
Material of connecting thread | Wrought aluminum alloy Wrought aluminum alloy, anodized Brass, nickel-plated | Note on materials | RoHS-compliant |
Seals material | NBR | Female nozzle material | POM |
Housing material | POM-reinforced | Muffler material | PE |
Material of jet nozzle | Wrought aluminum alloy | Manufacturer ID | 543315 |
Specifications may be subject to change without notice
