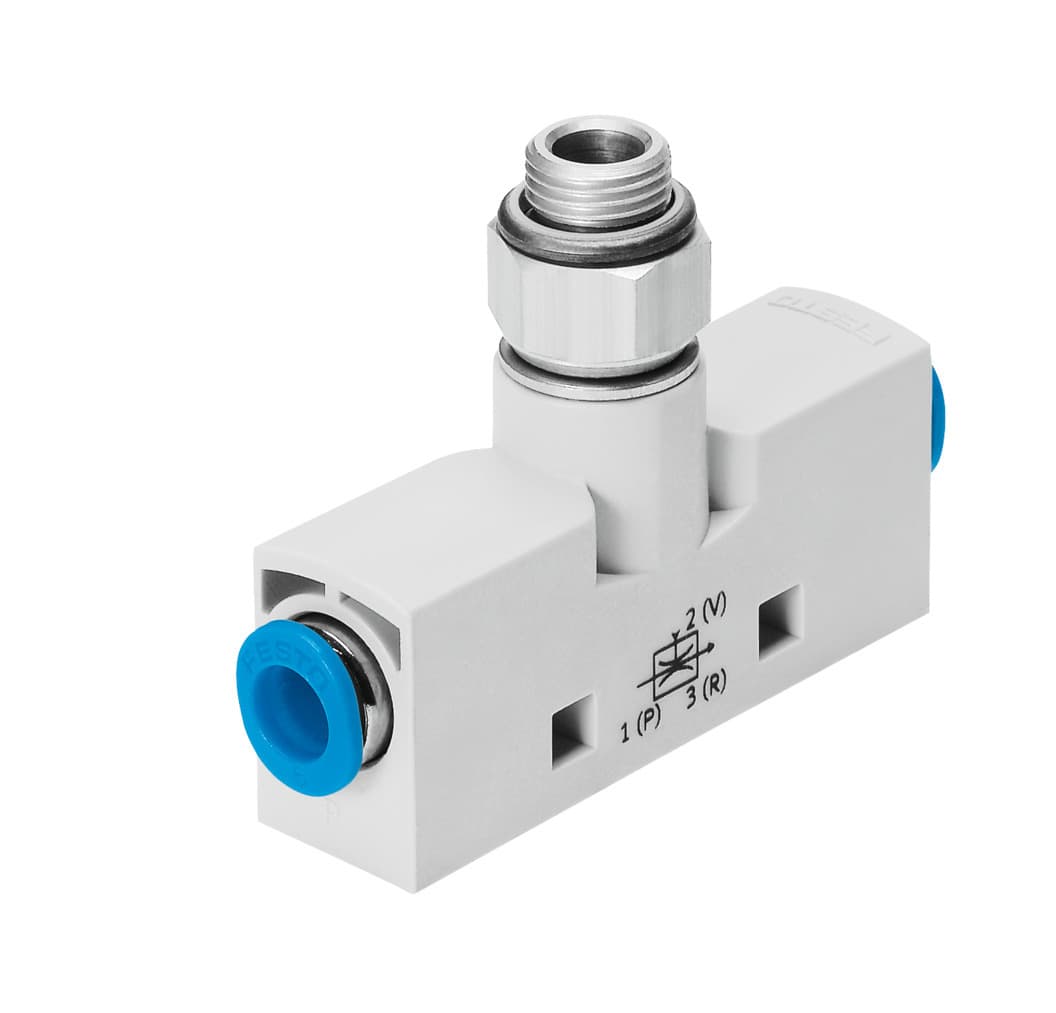

Festo VN-10-L-T3-PQ2-VA4-RQ2 Vacuum Generator

Selling Points

1The VN-10-L-T3-PQ2-VA4-RQ2 vacuum generator offers a high suction rate, making it suitable for various industrial applications.
2This vacuum generator features a standard, T-shaped design with a push-in connector, ensuring easy integration into your system.
3It operates at pressures between 1 and 8 bar, with a nominal operating pressure of 6 bar, providing consistent performance.
4The VN-10-L-T3-PQ2-VA4-RQ2 has a low corrosion stress classification (CRC 1), ensuring durability in different environments.
5The vacuum generator can be assembled in any position, offering flexibility in installation and use.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Nominal width of Laval nozzle	0.95mm	Width dimension	14mm
Mounting position	Any	Ejector characteristics	High suction rate Standard
Structural design	T-shape	Symbol	00991490
Operating pressure for max. suction rate	4bar	Operating pressure	1bar 8bar
Nominal operating pressure	6bar	Max. suction rate with respect to atmosphere	62.7l/min
Air supply time at nominal operating pressure	0.46s	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication not possible	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Temperature of medium	0°C 60°C
Ambient temperature	0°C 60°C	Max. tightening torque	0.5Nm
Product weight	24g	Type of mounting	With through-hole With accessories
Pneumatic connection 1	QS-6	Pneumatic connection 3	QS-6
Vacuum connection	G1/8	Material of connecting thread	Wrought aluminum alloy
Note on materials	RoHS-compliant	Seals material	NBR
Female nozzle material	POM	Housing material	POM-reinforced
Material of jet nozzle	Wrought aluminum alloy	Material of pneumatic fitting	Brass Nickel-plated
Manufacturer ID	193601
