Product Model

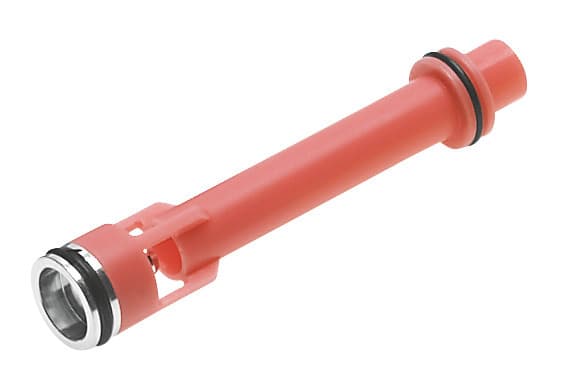

vn-14-l
Selling Points
- 1The Festo VN-14-L vacuum generator boasts a high suction rate, making it ideal for applications requiring efficient air flow and removal of particles.
- 2This vacuum generator features standard ejector characteristics, ensuring consistent performance and reliability in various industrial settings.
- 3With a nominal width of 1.4 mm and a grid dimension of 18 mm, the VN-14-L is designed to be compact and versatile, fitting into a wide range of applications.
- 4The VN-14-L offers optional mounting positions, providing flexibility in installation and integration with existing systems.
- 5Festo's commitment to quality is evident in the VN-14-L's technical precision, ensuring accurate and reliable operation in demanding environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width of Laval nozzle | 1.4mm | Mounting position | Any |
Ejector characteristics | Standard High suction volume | Symbol | 00991490 |
Operating pressure | 1bar 8bar | Nominal operating pressure | 6bar |
Max. suction rate with respect to atmosphere | 92.6l/min | Air supply time at nominal operating pressure | 0.31s |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication not possible |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | 0°C 60°C | Ambient temperature | 0°C 60°C |
Product weight | 3.75g | Seals material | NBR |
Female nozzle material | POM | Material of jet nozzle | Wrought aluminum alloy |
Manufacturer ID | 547700 |
Specifications may be subject to change without notice
