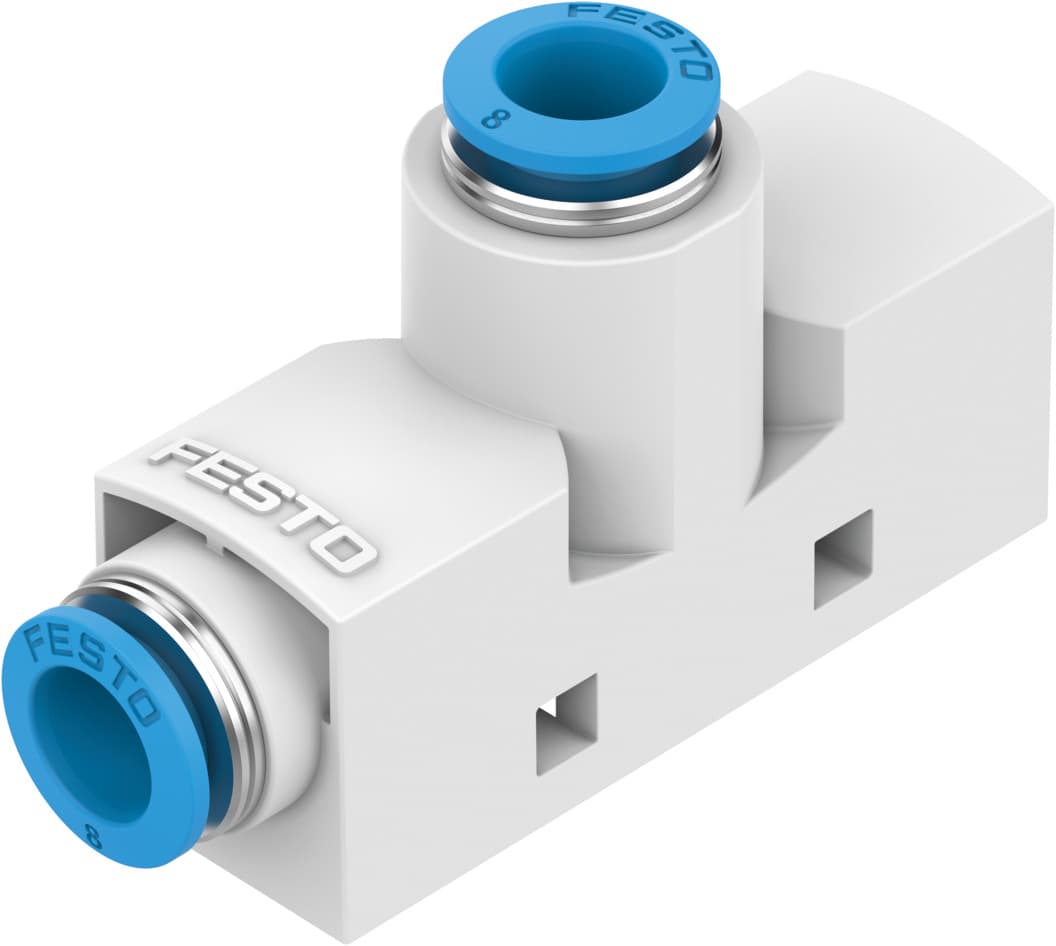

Festo VN-14-L-T4-PQ2-VQ3-RQ3 Vacuum Generator

Selling Points

1The Festo VN-14-L-T4-PQ2-VQ3-RQ3 vacuum generator features a 1.4mm nozzle, ensuring high suction rates for efficient operation in industrial settings.
2This vacuum generator is designed with a T-shaped configuration, providing optimal airflow and performance in various applications.
3The product includes two 8mm ports, offering flexibility in connecting to different systems and ensuring reliable operation.
4The VN-14-L-T4-PQ2-VQ3-RQ3 is engineered for standard and high suction rates, making it versatile for a wide range of industrial applications.
5Festo's commitment to quality ensures that this vacuum generator meets high standards of performance and durability, making it a reliable choice for industrial use.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Nominal width of Laval nozzle	1.4mm	Width dimension	18mm
Mounting position	Any	Ejector characteristics	High suction rate Standard
Structural design	T-shape	Symbol	00991490
Operating pressure for max. suction rate	8bar	Operating pressure	1bar 8bar
Nominal operating pressure	6bar	Max. suction rate with respect to atmosphere	90l/min
Air supply time at nominal operating pressure	0.25s	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication not possible	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Temperature of medium	0°C 60°C
Ambient temperature	0°C 60°C	Max. tightening torque	0.5Nm
Product weight	27g	Type of mounting	With through-hole With accessories

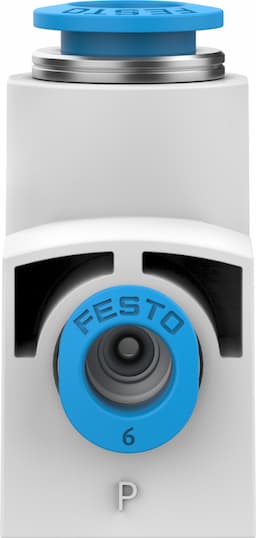

Pneumatic connection 1	QS-6	Pneumatic connection 3	QS-8

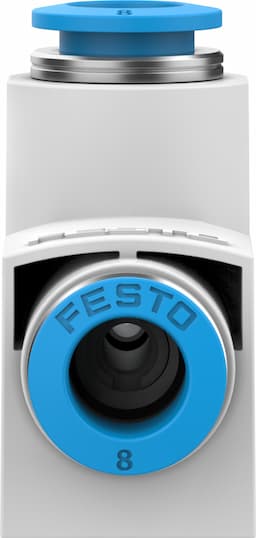

Vacuum connection	QS-8	Note on materials	RoHS-compliant
Seals material	NBR	Female nozzle material	POM
Housing material	POM-reinforced	Material of jet nozzle	Wrought aluminum alloy
Material of pneumatic fitting	Brass Nickel-plated	Manufacturer ID	193565

Specifications may be subject to change without notice
