Product Model

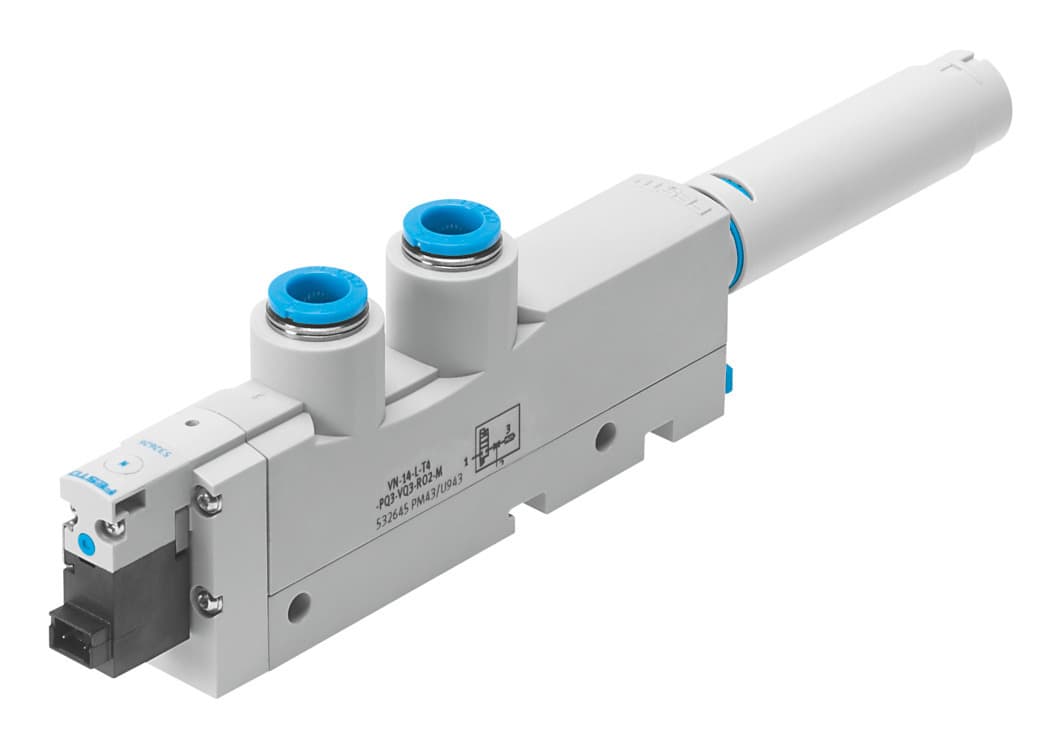

vn-14-l-t4-pq3-vq3-ro2-m
Selling Points
- 1The Festo VN-14-L-T4-PQ3-VQ3-RO2-M Vacuum Generator is a reliable and efficient solution for industrial automation, ensuring consistent performance in various applications.
- 2This vacuum generator features a compact design, making it easy to integrate into existing systems without taking up too much space.
- 3With its robust construction and high-quality materials, the VN-14-L-T4-PQ3-VQ3-RO2-M offers long-lasting performance and minimal maintenance requirements.
- 4The vacuum generator is designed for versatility, supporting a wide range of applications from pneumatic systems to industrial processes, ensuring it meets your specific needs.
- 5Festo's commitment to quality and innovation ensures that the VN-14-L-T4-PQ3-VQ3-RO2-M delivers exceptional performance and reliability, making it a trusted choice for industrial automation solutions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width of Laval nozzle | 1.4mm | Width dimension | 18mm |
Muffler construction type | Open | Mounting position | Any |
Ejector characteristics | Standard High suction volume | Manual override | Non-detenting |
Integrated function | Shut off valve, electric Pneumatic muffler open | Structural design | T-shape |
Symbol | 00991492 | Valve function | 2/2 |
Operating pressure for max. suction rate | 5bar | Operating pressure | 2bar 8bar |
Nominal operating pressure | 6bar | Max. suction rate with respect to atmosphere | 92.6l/min |
Air supply time at nominal operating pressure | 0.32s | DC operating voltage range | 21.6V 26.4V |
Electrical power consumption | 1.2W | Duty cycle | 100% |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication not possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
Temperature of medium | 0°C 50°C | Noise level at nominal operating pressure | 69dB(A) |
Degree of protection | IP40 | Ambient temperature | 0°C 50°C |
Product weight | 98g | Electrical connection | Plug |
Type of mounting | With through-hole With H-rail With accessories | Pneumatic connection 1 | QS-8 |
Pneumatic connection 3 | Pneumatic muffler open | Vacuum connection | QS-8 |
Material of connecting thread | Wrought aluminum alloy, anodized | Note on materials | RoHS-compliant |
Seals material | NBR | Female nozzle material | POM |
Housing material | PA-reinforced POM-reinforced | Muffler material | Wrought aluminum alloy POM PU foam |
Material of screws | Steel | Material of jet nozzle | Wrought aluminum alloy |
Material of pneumatic fitting | Brass Nickel-plated | Manufacturer ID | 532645 |
Specifications may be subject to change without notice
