Product Model

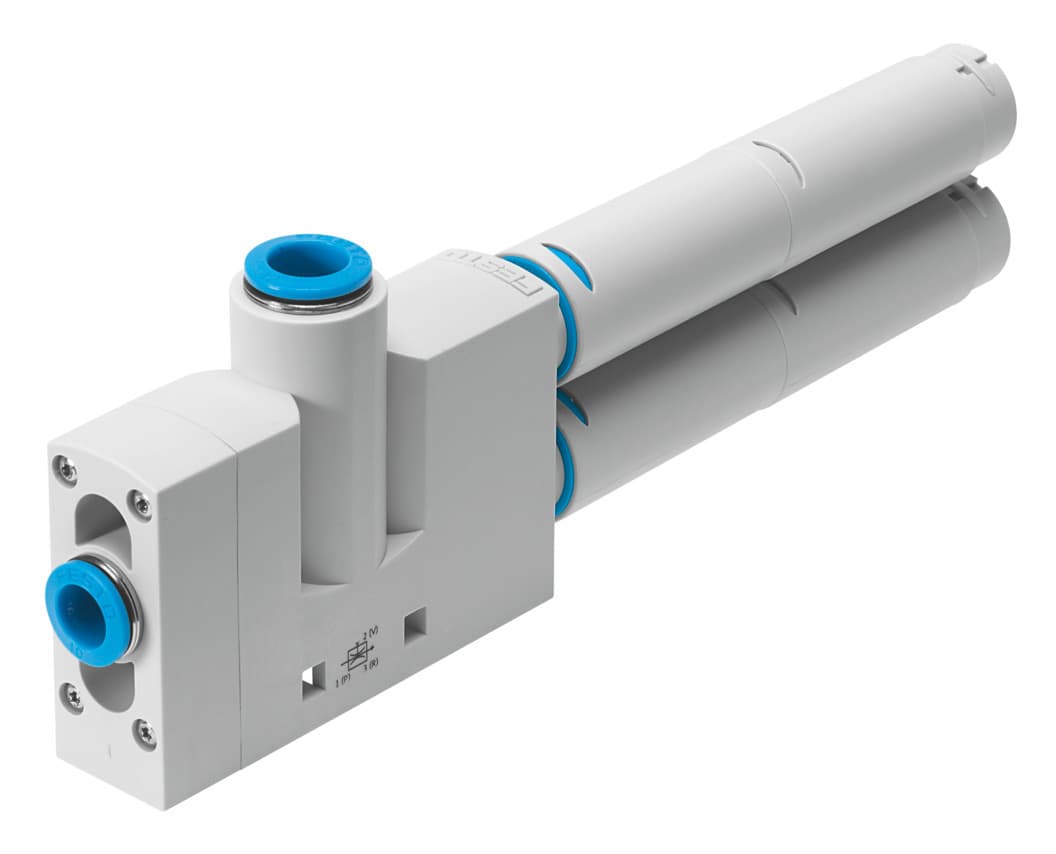

vn-20-h-t6-pq4-vq5-ro2
Selling Points
- 1The Festo VN-20-H-T6-PQ4-VQ5-RO2 vacuum generator delivers high vacuum standards, ensuring efficient operation in various industrial applications.
- 2This T-shaped vacuum generator features an open silencer and can be mounted in any position, offering flexibility in installation and use.
- 3With high vacuum ejector characteristics, the VN-20-H-T6-PQ4-VQ5-RO2 provides optimal suction rates and pressure management for precise control.
- 4Designed for continuous operation, this vacuum generator ensures consistent performance and minimal maintenance requirements, making it ideal for industrial settings.
- 5The VN-20-H-T6-PQ4-VQ5-RO2 is compatible with various systems and can be easily integrated into existing automation setups, enhancing overall system efficiency.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width of Laval nozzle | 2mm | Width dimension | 24mm |
Muffler construction type | Open | Mounting position | Any |
Ejector characteristics | High vacuum Standard | Integrated function | Pneumatic muffler open |
Structural design | T-shape | Symbol | 00991489 |
Operating pressure for max. suction rate | 2bar | Operating pressure | 1bar 8bar |
Operating pressure for max. vacuum | 3.5bar | Max. vacuum | 92% |
Nominal operating pressure | 6bar | Max. suction rate with respect to atmosphere | 98l/min |
Air supply time at nominal operating pressure | 0.2s | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364 zone III | Temperature of medium | 0°C 60°C |
Noise level at nominal operating pressure | 63dB(A) | Ambient temperature | 0°C 60°C |
Max. tightening torque | 0.8Nm | Product weight | 182g |
Type of mounting | With through-hole With accessories | Pneumatic connection 1 | QS-10 |
Pneumatic connection 3 | Pneumatic muffler open | Vacuum connection | QS-12 |
Note on materials | RoHS-compliant | Seals material | NBR |
Female nozzle material | POM | Housing material | POM-reinforced |
Muffler material | Die-cast aluminum POM PU foam | Material of jet nozzle | Wrought aluminum alloy |
Material of pneumatic fitting | Brass Nickel-plated | Manufacturer ID | 193495 |
Specifications may be subject to change without notice
