Product Model

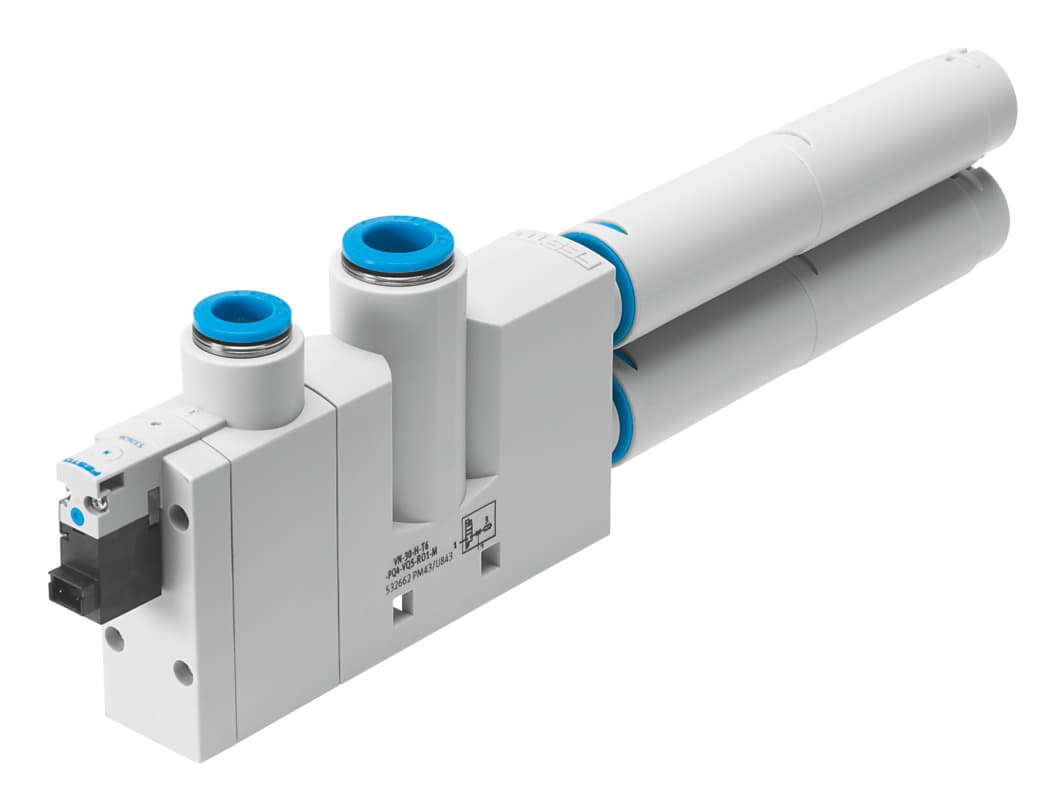

vn-20-h-t6-pq4-vq5-ro2-m
Selling Points
- 1High-Performance Vacuum Generation: The Festo VN-20-H-T6-PQ4-VQ5-RO2-M Vacuum Generator delivers consistent and reliable vacuum performance, ensuring optimal operation in various industrial applications.
- 2Advanced Design for Efficiency: Engineered with precision, this vacuum generator offers improved efficiency and reduced energy consumption, making it an ideal choice for modern automation systems.
- 3Versatile Connectivity Options: Equipped with multiple connection points, the VN-20-H-T6-PQ4-VQ5-RO2-M allows for easy integration into various automation setups, enhancing flexibility and convenience.
- 4Durable Construction for Longevity: Built with high-quality materials, this vacuum generator is designed to withstand the demands of continuous operation, ensuring a long lifespan and minimal maintenance.
- 5Comprehensive Support and Services: Backed by Festo's renowned customer support and extensive service network, you can trust that your VN-20-H-T6-PQ4-VQ5-RO2-M will be supported every step of the way.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width of Laval nozzle | 2mm | Width dimension | 24mm |
Muffler construction type | Open | Mounting position | Any |
Ejector characteristics | Standard High negative pressure | Manual override | Non-detenting |
Integrated function | Shut off valve, electric Pneumatic muffler open | Structural design | T-shape |
Symbol | 00991492 | Valve function | 2/2 |
Operating pressure for max. suction rate | 2bar | Operating pressure | 2bar 8bar |
Operating pressure for max. vacuum | 3.5bar | Max. vacuum | 92% |
Nominal operating pressure | 6bar | Max. suction rate with respect to atmosphere | 98l/min |
Air supply time at nominal operating pressure | 0.24s | DC operating voltage range | 21.6V 26.4V |
Electrical power consumption | 1.2W | Duty cycle | 100% |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication not possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
Temperature of medium | 0°C 50°C | Noise level at nominal operating pressure | 63dB(A) |
Degree of protection | IP40 | Ambient temperature | 0°C 50°C |
Product weight | 215g | Electrical connection | Plug |
Type of mounting | With through-hole With accessories | Pneumatic connection 1 | QS-10 |
Pneumatic connection 3 | Pneumatic muffler open | Vacuum connection | QS-12 |
Material of connecting thread | Wrought aluminum alloy, anodized | Note on materials | RoHS-compliant |
Seals material | NBR | Female nozzle material | POM |
Housing material | PA-reinforced POM-reinforced | Muffler material | Wrought aluminum alloy POM PU foam |
Material of screws | Steel | Material of jet nozzle | Wrought aluminum alloy |
Material of pneumatic fitting | Brass Nickel-plated | Manufacturer ID | 532656 |
Specifications may be subject to change without notice
