Product Model

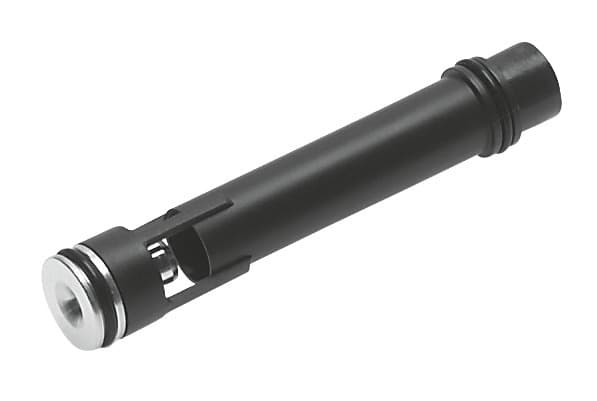

vn-20-l
Selling Points
- 1The Festo VN-20-L offers a high suction rate of 184.4L/min, making it ideal for applications requiring efficient vacuum generation.
- 2With an inline-type and 2mm de Laval nozzle, the VN-20-L is designed for compact installations, fitting seamlessly into customized housing.
- 3This vacuum generator operates within a pressure range of +1 to +8 bar, ensuring flexibility in various operational conditions.
- 4Featuring Nitrile rubber (NBR) static seals, the VN-20-L offers moderate corrosion resistance, suitable for applications with moderate chemical stress.
- 5Designed for decentralized vacuum generation, the VN-20-L is beneficial in lithium-ion battery production and other industrial processes requiring precise vacuum control.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width of Laval nozzle | 2mm | Mounting position | Any |
Ejector characteristics | Standard High suction volume | Symbol | 00991490 |
Operating pressure | 1bar 8bar | Nominal operating pressure | 6bar |
Max. suction rate with respect to atmosphere | 184.4l/min | Air supply time at nominal operating pressure | 0.17s |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication not possible |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | 0°C 60°C | Ambient temperature | 0°C 60°C |
Product weight | 3.75g | Seals material | NBR |
Female nozzle material | POM | Material of jet nozzle | Wrought aluminum alloy |
Manufacturer ID | 547702 |
