Product Model

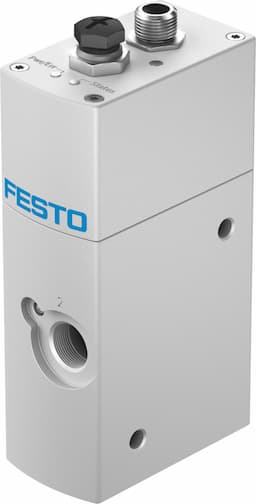

vpcf-6-l-8-g38-10-v1-e-ex2
Selling Points
- 1High Precision Flow Control: Accurate flow control from 30 to 1500 l/min with ±0.5% FS repetition accuracy.
- 2Robust Construction: Built with a piston pusher and integrated pressure sensors for reliable operation.
- 3ATEX Certified: Compliant with EU explosion protection directives (ATEX) for safe use in hazardous environments.
- 4Compact Design: Nominal width of 6 mm and weight of 856 g for easy integration into various systems.
- 5Versatile Connectivity: Supports M12x1, 8-pin plug connections and G3/8 pneumatic connections for flexible setup options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 3-way proportional flow control valve | Structural design | Piston gate valve with integrated pressure sensors |
Type of control | Direct | Actuation type | Electrical |

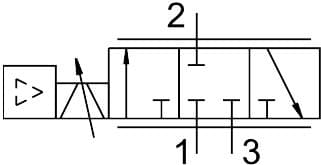

Reset method | Magnetic spring | Symbol | 00995603 |
Flow direction | Non-reversible | Mounting position | Any |
Sealing principle | Hard | Nominal width | 6mm |
Short-circuit protection | yes | Display type | LED |
Flow rate range | 0l/min 1500l/min | Operating pressure | 1bar 10bar |
Flow rate control range | 30l/min 1500l/min | Note on the flow rate control range | Regulation takes place at 30 l/min; below this setpoint value, the flow control valve switches to the exhausting position. The accuracy specifications provided are based on a flow rate control range of 75-1500 l/min. |
Repetition accuracy in ± %FS | 0.5%FS | Absolute accuracy in ± %FS at room temperature | 3%FS |
Hysteresis in ± %FS | 0.8%FS | Ambient temperature | 0°C 50°C |
Temperature of medium | 15°C 35°C | Operating medium | Compressed air as per ISO 8573-1:2010 [6:4:4] |
Information on operating and pilot media | Operation with oil lubrication not possible Maximum particle size 5 μm | Degree of protection | IP65 |
Note on degree of protection | In mounted state | Certification | RCM compliance mark |
CE marking (see declaration of conformity) | As per EU EMC directive as per EU explosion protection directive (ATEX) As per EU RoHS directive | Explosion prevention and protection | Zone 2 (ATEX) Zone 22 (ATEX) |
UKCA marking (see declaration of conformity) | To UK instructions for EMC acc. to UK EX instructions To UK RoHS instructions | ATEX category gas | II 3G |
ATEX category for dust | II 3D | Type of ignition protection for gas | Ex nA IIC T5 X Gc |
Type of (ignition) protection for dust | Ex tc IIIC T60°C X Dc | Explosive ambient temperature | 0°C <= Ta <= +50°C |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Note on materials | RoHS-compliant |
Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | Nominal operating voltage DC | 24V |
DC operating voltage range | 20.4V 30V | Residual ripple | 5 % |
Max. current consumption | 1.2A | Current consumption with load-free outputs | 150mA |
Switching output | PNP | Switching input | PNP |
Current rating per output | 100mA | Reverse polarity protection | for operating voltage |
Duty cycle | 100% | Max. electrical power consumption | 36W |
Analog output signal range | 0 - 10 V | Analog input signal range | 0 - 10 V |
Diagnostic function | Indication via LED | Electrical connection | 8-pin A-coded M12x1 Plug |
Type of mounting | Direct mounting via through-hole Direct fastening via thread | Pneumatic connection 1 | G3/8 |
Pneumatic connection 2 | G3/8 | Pneumatic connection 3 | G3/8 |
Product weight | 856g | Housing material | Wrought aluminum alloy, anodized |
Seals material | FPM HNBR | Manufacturer ID | 8041716 |
Specifications may be subject to change without notice
