Product Model

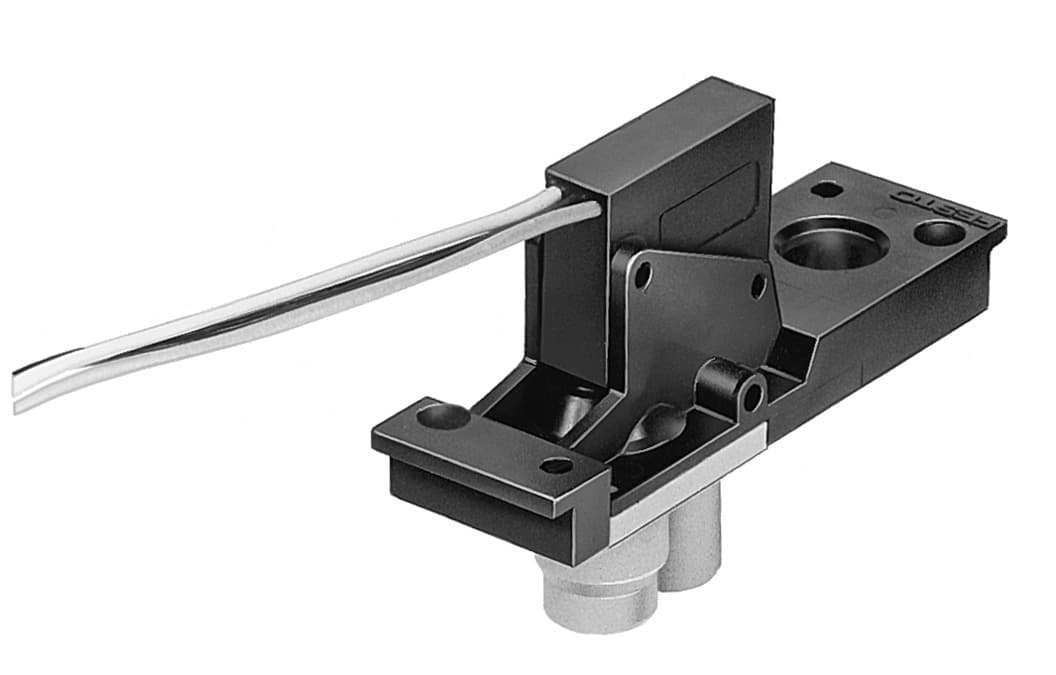

vpe-1/8-2n-sw
Selling Points
- 1The Festo VPE-1/8-2N-SW pressure/vacuum converter offers precise measurements with a high degree of reliability, ensuring consistent performance in various industrial settings.
- 2This converter operates within a wide temperature range of 0°C to 60°C and can handle compressed air as per ISO 8573-1:2010 [7:4:4], making it suitable for diverse applications.
- 3Built with durable materials such as PA, POM, Steel, and VMQ (silicone), the VPE-1/8-2N-SW ensures long-lasting performance and resistance to environmental factors.
- 4Featuring a G1/8 pneumatic connection and throughway bores for easy mounting, this converter is designed for straightforward integration into your industrial setup.
- 5The VPE-1/8-2N-SW meets the standards of EN 60947-5-1 and carries a CE mark, ensuring compliance with the EU Low Voltage Directive for safe and reliable operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Conforms to standard | EN 60947-5-1 | Symbol | 00995409 |
CE marking (see declaration of conformity) | As per EU low voltage directive | UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment |
Measured variable | Relative pressure | Method of measurement | Pneumatic/electric pressure transducer |
Operating pressure | -0.95bar 0bar | Max. overload pressure | 1bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible |
Temperature of medium | 0°C 60°C | Ambient temperature | 0°C 60°C |
Switching output | Contact-based | Switching function | Threshold value with fixed hysteresis |
Switching element function | Changeover switch | Switch-on point | -0.25bar |
Switch-off point | 0.1bar | Max. switching frequency | 1Hz |
Minimum load current | 100mA | Operating voltage range AC | 12V 250V |
DC operating voltage range | 12V 250V | Utilization category for inductive load | AC-14 DC-13 |
Utilization category for ohmic load | AC-12 DC-12 | Electrical connection | 3 connecting wires |
Electrical connection 1, connection technology | Open end | Cable length | 0.5m |
Material of cable sheath | PVC | Type of mounting | Optionally: On 2n mounting frame With through-hole |
Mounting position | Any | Pneumatic connection | G1/8 |
Housing material | PA-reinforced POM Steel VMQ (silicone) | Switching contact material | Silver |
Electrical connection material | Tin-plated | Diaphragm material | Chloroprene rubber |
Setting options | Permanently set | Degree of protection | IP67 |
Insulation voltage | 2000V | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Contamination level | 3 | Manufacturer ID | 12595 |
Specifications may be subject to change without notice
