Product Model

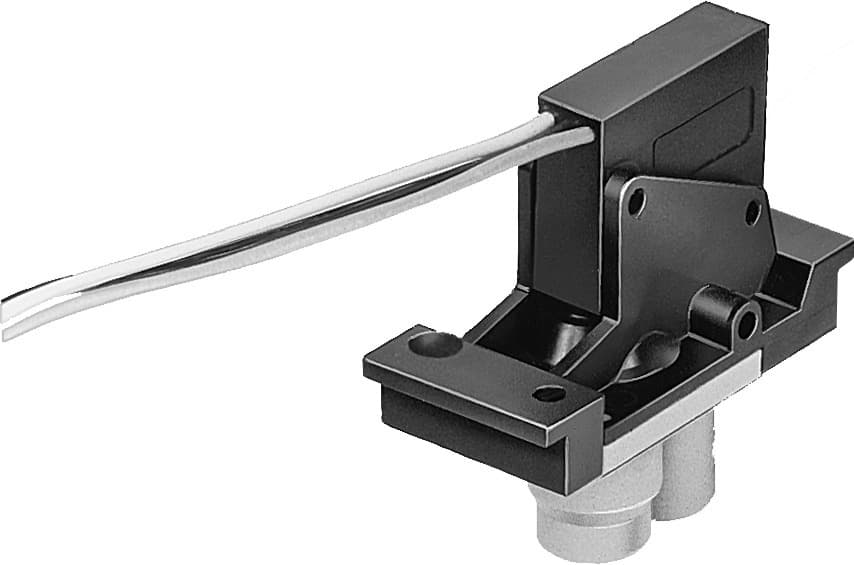

vpe-1/8-sw
Selling Points
- 1High Accuracy and Reliability: The Festo VPE-1/8-SW pressure/vacuum switch offers precise switching points with a switch-on point of -0.25 bar and a switch-off point of ≤0.1 bar, ensuring reliable operation in demanding environments.
- 2Versatile Operating Range: This switch operates with compressed air to ISO 8573-1:2010 and vacuum, making it suitable for a wide range of industrial applications. It can handle operating pressures from -0.95 to 0.25 bar.
- 3Flexible Installation Options: The VPE-1/8-SW can be installed in any position due to its throughway bores for fastening, providing flexibility in system design and integration.
- 4Robust Construction: Built with high-quality materials such as PA, POM, Steel, and VMQ (Silicone), this switch ensures durability and resistance to various environmental conditions.
- 5Compliance with Safety Standards: The Festo VPE-1/8-SW meets the CE marking requirements as per the EU Low Voltage Directive and is designed for safe operation with a maximum switching frequency of 1 Hz.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Conforms to standard | EN 60947-5-1 | Symbol | 00995409 |
CE marking (see declaration of conformity) | As per EU low voltage directive | UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment |
Measured variable | Relative pressure | Method of measurement | Pneumatic/electric pressure transducer |
Operating pressure | -0.95bar 0bar | Max. overload pressure | 1bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible |
Temperature of medium | 0°C 60°C | Ambient temperature | 0°C 60°C |
Switching output | Contact-based | Switching function | Threshold value with fixed hysteresis |
Switching element function | Changeover switch | Switch-on point | -0.25bar |
Switch-off point | 0.1bar | Max. switching frequency | 1Hz |
Minimum load current | 100mA | Operating voltage range AC | 12V 250V |
DC operating voltage range | 12V 250V | Utilization category for inductive load | AC-14 DC-13 |
Utilization category for ohmic load | AC-12 DC-12 | Electrical connection | 3 connecting wires |
Electrical connection 1, connection technology | Open end | Cable length | 0.5m |
Material of cable sheath | PVC | Type of mounting | Optionally: On mounting frame 1n |
Mounting position | Any | Pneumatic connection | G1/8 |
Product weight | 38g | Housing material | PA-reinforced POM Steel VMQ (silicone) |
Switching contact material | Silver | Electrical connection material | Tin-plated |
Diaphragm material | Chloroprene rubber | Setting options | Permanently set |
Degree of protection | IP67 | Insulation voltage | 2000V |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Contamination level | 3 |
Manufacturer ID | 12593 |
Specifications may be subject to change without notice
