Product Model

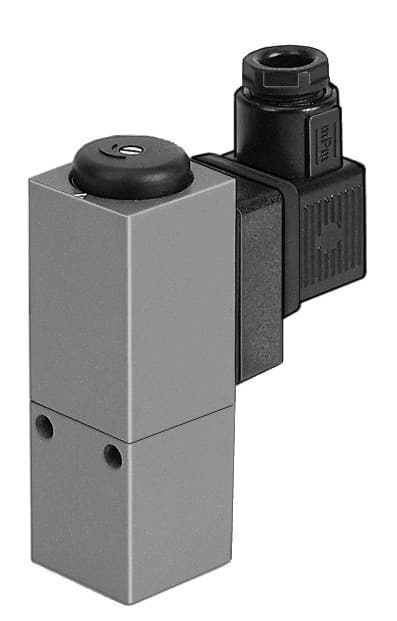

vpev-1/8
Selling Points
- 1Optimal Vacuum Level Control: The Festo VPEV-1/8 vacuum switch ensures precise control over vacuum levels, making it essential for various industrial applications.
- 2Wide Operating Pressure Range: This switch operates effectively within a range of -1 to 1.6 bar, providing flexibility in different pressure conditions.
- 3High Reliability and Durability: With an IP65 rating, the VPEV-1/8 is designed to withstand harsh environments and ensure reliable performance.
- 4Easy Installation: The switch features a G 1/8 connection and can be mounted with a bracket, making installation straightforward and efficient.
- 5Versatile Application: Suitable for both vacuum and pressure applications, the VPEV-1/8 is a versatile solution for various industrial needs, including automatic pump start/stop in presses.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Conforms to standard | EN 60947-5-1 | Symbol | 00991471 |
Certification | CCC | CE marking (see declaration of conformity) | As per EU low voltage directive |
UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Explosion prevention and protection | Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
Note on materials | RoHS-compliant | Measured variable | Relative pressure |
Method of measurement | Pneumatic/electric pressure transducer | Pressure measuring range | -14.5psi 23.2psi |
Operating pressure | -1bar 1.6bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Temperature of medium | -20°C 80°C |
Ambient temperature | -20°C 80°C | Switching element function | Changeover switch |
Max. switching frequency | 3Hz | Max. switching output voltage AC | 250V |
Max. switching output voltage DC | 125V | Max. output current | 5000mA |
Minimum load current | 1 mA at 24 V 10 mA at 10 V 100 mA at 5V | Utilization category for inductive load | AC-14 DC-13 |
Utilization category for ohmic load | AC-12 DC-12 | Electrical connection | Form A Plug as per DIN 43650 Rectangular design |
Type of mounting | With through-hole | Mounting position | Any |
Pneumatic connection | G1/8 | Product weight | 240g |
Housing material | Wrought aluminum alloy | Switching contact material | Silver |
Switching status indication | LED yellow | Setting range threshold value | -0.95bar -0.2bar |
Setting range threshold value after conversion | 0.16bar 1.6bar | Degree of protection | IP65 |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Manufacturer ID | 150261 |
Specifications may be subject to change without notice
