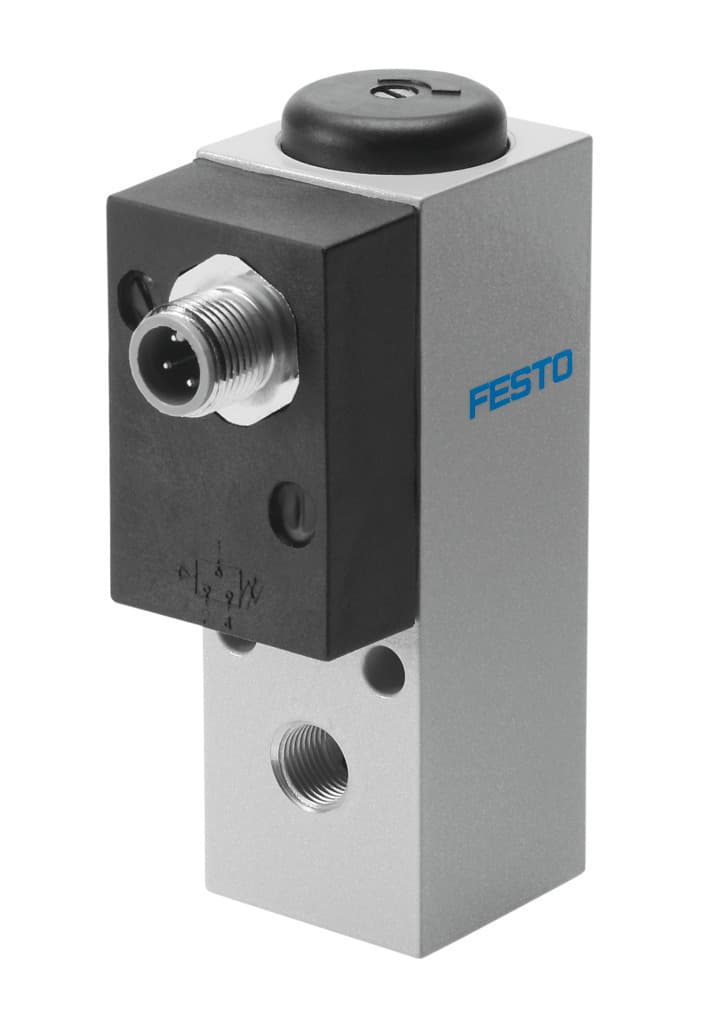

Product Model
vpev-1/8-m12
Selling Points
- 1Precision Vacuum Detection: The VPEV-1/8-M12 vacuum switch offers precise detection of vacuum levels, ensuring accurate control in various industrial processes.
- 2Adjustable Switching Point: This vacuum switch features an adjustable switching point, allowing for customized settings to meet specific application requirements.
- 3Robust Design: Constructed with a durable wrought aluminum alloy housing, the VPEV-1/8-M12 is built to withstand harsh industrial environments.
- 4CE Marked and Certified: Compliant with EU Low Voltage Directive and CE marked, ensuring safety and regulatory compliance in European markets.
- 5Wide Operating Range: The VPEV-1/8-M12 operates within a wide range of vacuum levels (-1 to +1.6 bar), making it versatile for various industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Conforms to standard | EN 60947-5-1 | Symbol | 00991472 |
Certification | CCC c UL us - Recognized (OL) | CE marking (see declaration of conformity) | As per EU low voltage directive |
UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Explosion prevention and protection | Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
Note on materials | RoHS-compliant | Measured variable | Relative pressure |
Method of measurement | Pneumatic/electric pressure transducer | Pressure measuring range | -14.5psi 23.2psi |
Operating pressure | -1bar 1.6bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Temperature of medium | -20°C 80°C |
Ambient temperature | -20°C 80°C | Switching element function | Changeover switch |
Max. switching frequency | 3Hz | Max. switching output voltage AC | 48V |
Max. switching output voltage DC | 48V | Max. output current | 4000mA |
Minimum load current | 1 mA at 24 V 10 mA at 10 V 100 mA at 5V | Utilization category for inductive load | AC-14 DC-13 |
Utilization category for ohmic load | AC-12 DC-12 | Electrical connection | 4-pin M12x1 Plug as per EN 60947-5-2 Round design |
Type of mounting | With through-hole | Mounting position | Any |
Pneumatic connection | G1/8 | Product weight | 220g |
Housing material | Wrought aluminum alloy | Switching contact material | Silver |
Setting range threshold value | -0.95bar -0.2bar | Setting range threshold value after conversion | 0.16bar 1.6bar |
Degree of protection | IP65 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Manufacturer ID | 192489 |
Specifications may be subject to change without notice
