Product Model

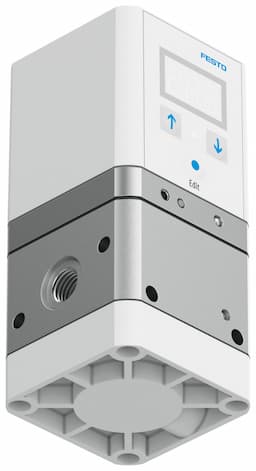

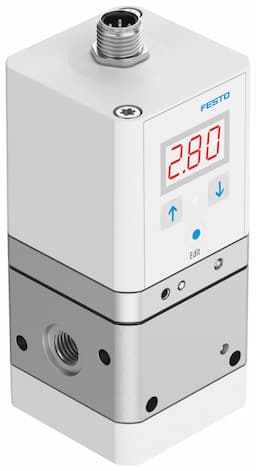

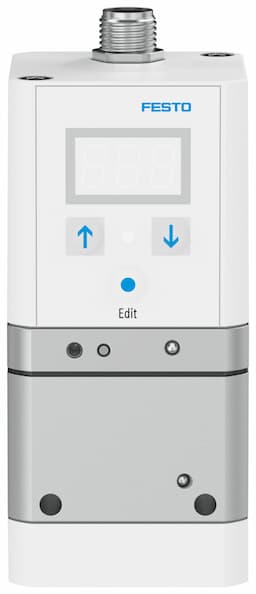

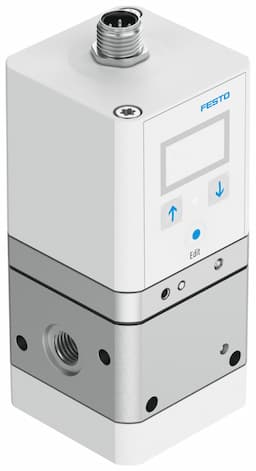

vppe-3-1-1/8-10-010-e1-f1a
Selling Points
- 1The Festo VPPE-3-1-1/8-10-010-E1-F1A Proportional Pressure Regulator offers precise inline pressure control, making it suitable for a wide range of industrial applications. It features a 0 to 10V setpoint input for easy adjustment.
- 2This regulator is designed to handle pressures from 0.1 to 10 bar, providing a versatile solution for various pneumatic systems. Its high precision ensures reliable performance in demanding environments.
- 3The VPPE-3-1-1/8-10-010-E1-F1A is part of Festo's extensive product portfolio, known for its quality and reliability. It integrates seamlessly with other Festo components, making it an excellent choice for comprehensive automation solutions.
- 4With its proportional control mechanism, this regulator provides smooth and accurate pressure adjustments. This feature is particularly useful in applications requiring precise pressure management, such as in manufacturing and process control.
- 5The Festo VPPE-3-1-1/8-10-010-E1-F1A also offers free shipping on orders over $1,000 and lifetime technical support, ensuring that customers receive both the product and the necessary assistance for optimal performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width pressurization | 5mm | Exhaust nominal width | 2.5mm |
Variants | Metals with copper, zinc or nickel by mass as main constituent are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils. | Actuation type | Electrical |
Sealing principle | Soft | Mounting position | Any Preferably upright |
Structural design | Pilot-controlled diaphragm regulator | Short-circuit protection | For all electrical connections |
Safety instructions | VPPE safety position: if the supply cable breaks, the outlet pressure is maintained in uncontrolled form. | Symbol | 00995303 |
Reverse polarity protection | for all electrical connections | Reset method | Mechanical spring |
Type of control | Pilot-controlled | Valve function | 3-way proportional pressure control valve |
Display type | LED display 3-digit | Pressure regulation range MPa | 0.01MPa 1MPa |
Pressure regulation range | 0.1bar 10bar | Inlet pressure 1 | 6bar 11bar |
Inlet pressure 1 MPa | 0.6MPa 1.1MPa | Max. pressure hysteresis | 0.725psi |
Standard nominal flow rate | 1250l/min | DC operating voltage range | 21.6V 26.4V |
Max. current consumption | 160mA | Duty cycle | 100% |
Max. electrical power consumption | 4.2W | Residual ripple | 10 % |
Switching output | PNP | Analog output signal range | 0 - 10 V |
Analog input signal range | 0 - 10 V | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
Information on operating and pilot media | Operation with oil lubrication not possible | Certification | RCM compliance mark c UL us - Listed (OL) |
KC characters | KC EMC | CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive |
UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | Certificate issuing authority | UL E322346 |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Cleanroom class | Class 4 according to ISO 14644-1 |
Temperature of medium | 10°C 50°C | Degree of protection | IP65 |
Ambient temperature | 0°C 60°C | Product weight | 390g |
Linearity | 1%FS | Hysteresis | 0.5%FS |
Reproducibility | 0.5%FS | Overall accuracy | 1.25 %FS |
Temperature coefficient | 0.04%/K | Electrical connection | 5-pin M12 Plug |
Type of mounting | With through-hole | Pneumatic connection 1 | G1/8 |
Pneumatic connection 2 | G1/8 | Pneumatic connection 3 | G1/8 |
Note on materials | RoHS-compliant | Housing material | Aluminum, powder-coated |
Manufacturer ID | 8156420 |
Specifications may be subject to change without notice
