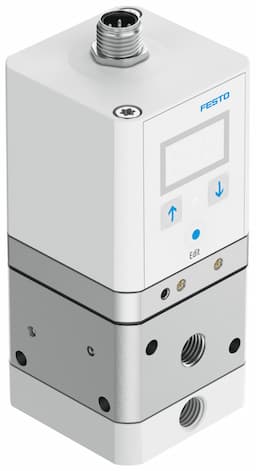

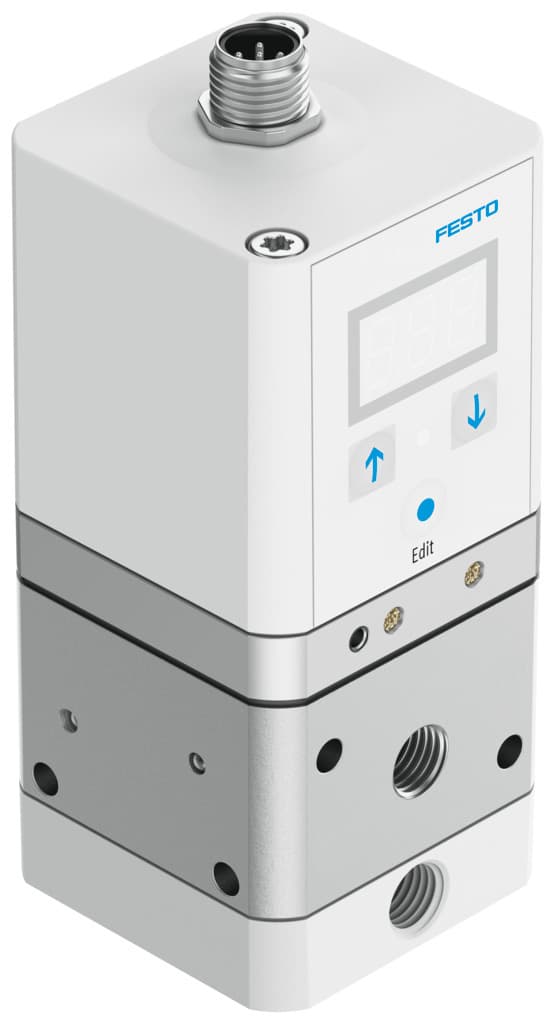

Product Model
vppe-3-1-1/8-6-420-e1t
Selling Points
- 1Regulates pressure from 0.06 to 6 bar with high accuracy.
- 2Ensures reliable operation with soft sealing for minimal leakage.
- 3Easy to control with 4-20 mA setpoint input and PNP switching output.
- 4Can be mounted in any position, preferably vertical, for optimal performance.
- 5Meets EU EMC Directive, CE mark, and RoHS compliant with IP65 protection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width pressurization | 5mm | Exhaust nominal width | 2.5mm |
Actuation type | Electrical | Sealing principle | Soft |
Mounting position | Any Preferably upright | Structural design | Pilot-controlled diaphragm regulator |
Short-circuit protection | For all electrical connections | Safety instructions | VPPE safety position: if the supply cable breaks, the outlet pressure is maintained in uncontrolled form. |
Symbol | 00995303 | Reverse polarity protection | for all electrical connections |
Reset method | Mechanical spring | Type of control | Pilot-controlled |
Valve function | 3-way proportional pressure control valve | Display type | LED display 3-digit |
Pressure regulation range MPa | 0.006MPa 0.6MPa | Pressure regulation range | 0.06bar 6bar |
Inlet pressure 1 | 6bar 8bar | Inlet pressure 1 MPa | 0.6MPa 0.8MPa |
Max. pressure hysteresis | 0.435psi | Standard nominal flow rate | 800l/min |
DC operating voltage range | 21.6V 26.4V | Max. current consumption | 160mA |
Duty cycle | 100% | Max. electrical power consumption | 4.2W |
Residual ripple | 10 % | Switching output | PNP |
Analog output signal range | 4 - 20 mA | Analog input signal range | 4 - 20 mA |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication not possible |
Certification | RCM compliance mark c UL us - Listed (OL) | KC characters | KC EMC |
CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
Certificate issuing authority | UL E322346 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Temperature of medium | 10°C 50°C |
Degree of protection | IP65 | Ambient temperature | 0°C 60°C |
Product weight | 390g | Linearity | 1%FS |
Hysteresis | 0.5%FS | Reproducibility | 0.5%FS |
Overall accuracy | 1.25 %FS | Temperature coefficient | 0.04%/K |
Electrical connection | 5-pin M12 Plug | Type of mounting | With through-hole |
Pneumatic connection 1 | G1/8 | Pneumatic connection 2 | G1/8 |
Pneumatic connection 3 | G1/8 | Note on materials | RoHS-compliant |
Housing material | Wrought aluminum alloy, anodized | Manufacturer ID | 567540 |
Specifications may be subject to change without notice
