Product Model

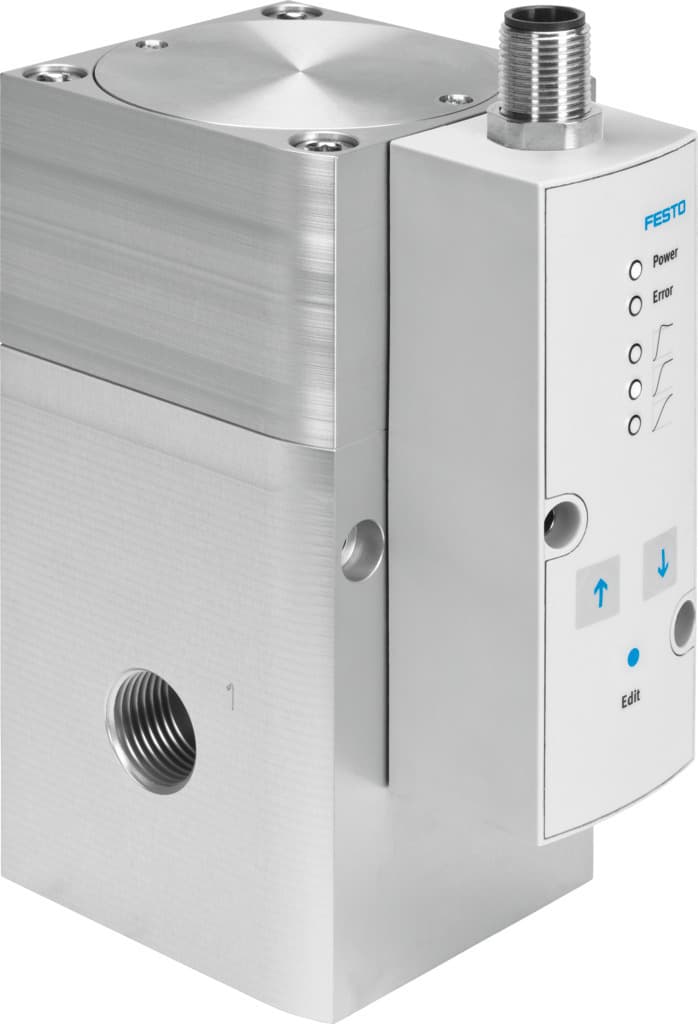

vppm-12l-l-1-g12-0l6h-v1n-s1
Selling Points
- 1High Precision Pressure Regulation: Regulates pressure from 0.06 to 6 bar with a max. pressure hysteresis of 0.03 bar.
- 2Electric Actuation: Powered by DC voltage (21.6 V to 26.4 V) with a max. current consumption of 500 mA.
- 3Soft Sealing Principle: Ensures reliable operation with a soft sealing principle, reducing wear and tear.
- 4Optional Mounting Position: Allows for flexible installation with optional mounting positions, including through-hole and accessories.
- 5Comprehensive Safety Features: Includes reverse polarity protection, short circuit current rating, and safety position VPPM for uninterrupted output pressure in case of power supply interruption.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width pressurization | 12mm | Exhaust nominal width | 12mm |
Actuation type | Electrical | Sealing principle | Soft |
Mounting position | Any | Structural design | Pilot-controlled diaphragm regulator |
Short-circuit protection | For all electrical connections | Safety instructions | VPPM safety position: if the supply cable breaks, the outlet pressure is maintained in uncontrolled form. |
Symbol | 00995303 | Reverse polarity protection | for all electrical connections |
Reset method | Mechanical spring | Type of control | Pilot-controlled |
Valve function | 3-way proportional pressure control valve | Display type | LED |
Pressure regulation range MPa | 0.006MPa 0.6MPa | Pressure regulation range | 0.06bar 6bar |
Inlet pressure 1 | 0bar 8bar | Inlet pressure 1 MPa | 0MPa 0.8MPa |
Max. pressure hysteresis | 0.03bar | Standard nominal flow rate | 4500l/min |
DC operating voltage range | 21.6V 26.4V | Max. current consumption | 500mA |
Duty cycle | 100% | Max. electrical power consumption | 12W |
Residual ripple | 10 % | Switching output | NPN |
Analog output signal range | 0 - 10 V | Analog input signal range | 0 - 10 V |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication not possible |
Certification | RCM compliance mark c UL us - Listed (OL) | KC characters | KC EMC |
CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
Certificate issuing authority | UL E322346 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | 10°C 50°C |
Degree of protection | IP65 | Ambient temperature | 0°C 60°C |
Product weight | 2050g | Linearity | 1%FS |
Hysteresis | 0.5%FS | Reproducibility | 0.5%FS |
Overall accuracy | 1.25 %FS | Temperature coefficient | 0.04%/K |
Repetition accuracy FS | 0.5% | Electrical connection | 8-pin M12 Plug |
Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection 1 | G1/2 |
Pneumatic connection 2 | G1/2 | Pneumatic connection 3 | G1/2 |
Note on materials | RoHS-compliant | Housing material | Wrought aluminum alloy Anodized |
Manufacturer ID | 575238 |
Specifications may be subject to change without notice
