Product Model

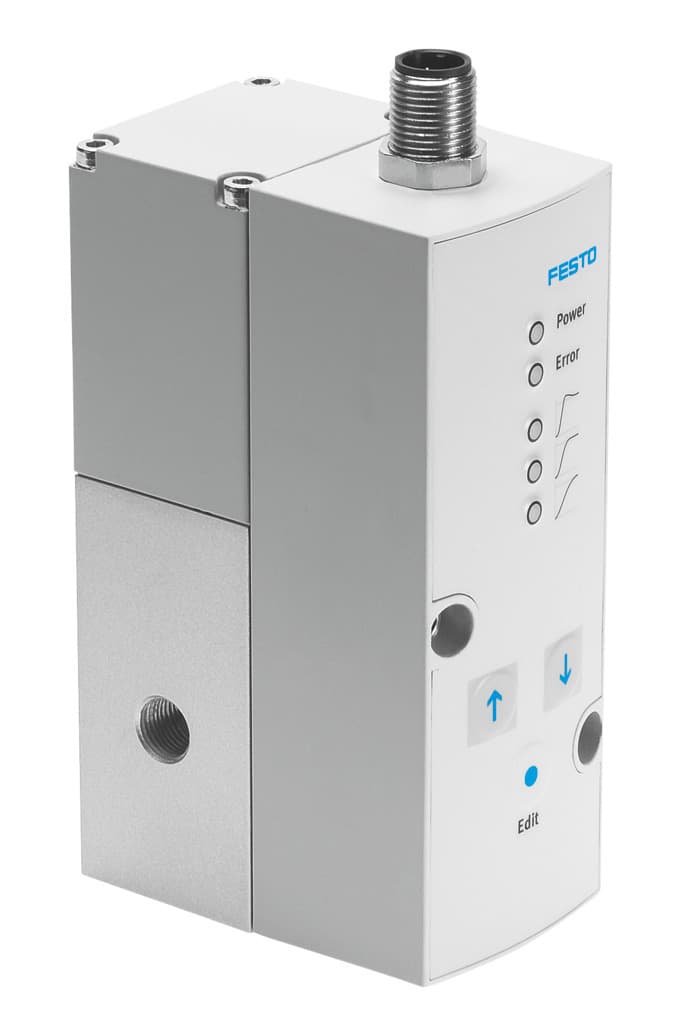

vppm-6-npt
Selling Points
- 1The Festo VPPM-6-NPT ensures precise pressure regulation with a high dynamic response and two accuracy levels, making it a reliable choice for critical applications.
- 2This regulator can be used as both an individual pressure regulator and a pressure zone regulator, offering flexibility in its application.
- 3The VPPM-6-NPT is designed for easy mounting and servicing. It features replaceable valves and diagnostics via bus, facilitating fast troubleshooting and maintenance.
- 4The regulator can handle a pressure range of 0.02 bar to 10 bar, making it suitable for various industrial applications.
- 5The VPPM-6-NPT maintains output pressure unregulated if the power supply cable is interrupted, ensuring safety in case of power failure. It also features reverse polarity protection for all electrical connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width pressurization | 6mm | Actuation type | Electrical |
Sealing principle | Soft | Mounting position | Any |
Structural design | Pilot-controlled diaphragm regulator | Short-circuit protection | For all electrical connections |
Safety instructions | VPPM safety position: if the supply cable breaks, the outlet pressure is maintained in uncontrolled form. | Symbol | 00995303 |
Reverse polarity protection | for all electrical connections | Reset method | Mechanical spring |
Type of control | Pilot-controlled | Valve function | 3-way proportional pressure control valve |
Display type | Back-lit LCD LED | Pressure regulation range | 0.02bar 10bar |
Inlet pressure 1 | 0bar 11bar | Inlet pressure 1 MPa | 0MPa 1.1MPa |
Standard nominal flow rate | 380l/min 1400l/min | DC operating voltage range | 21.6V 26.4V |
Max. current consumption | 300mA | Duty cycle | 100% |
Max. electrical power consumption | 7W | Residual ripple | 10 % |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication not possible |
Certification | RCM compliance mark c UL us - Listed (OL) | KC characters | KC EMC |
CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
Certificate issuing authority | UL E322346 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | 10°C 50°C |
Degree of protection | IP65 | Ambient temperature | 0°C 60°C |
Product weight | 400g | Linearity | 1%FS |
Hysteresis | 0.5%FS | Reproducibility | 0.5%FS |
Overall accuracy | 1.25 %FS | Temperature coefficient | 0.04%/K |
Repetition accuracy FS | 0.5% | Electrical connection | 8-pin M12 Plug Via sub-base |
Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection 1 | 1/8 NPT |
Pneumatic connection 2 | 1/8 NPT | Pneumatic connection 3 | 1/8 NPT |
Note on materials | RoHS-compliant | Housing material | Wrought aluminum alloy Anodized |
Manufacturer ID | 546953 |
Specifications may be subject to change without notice
