Product Model

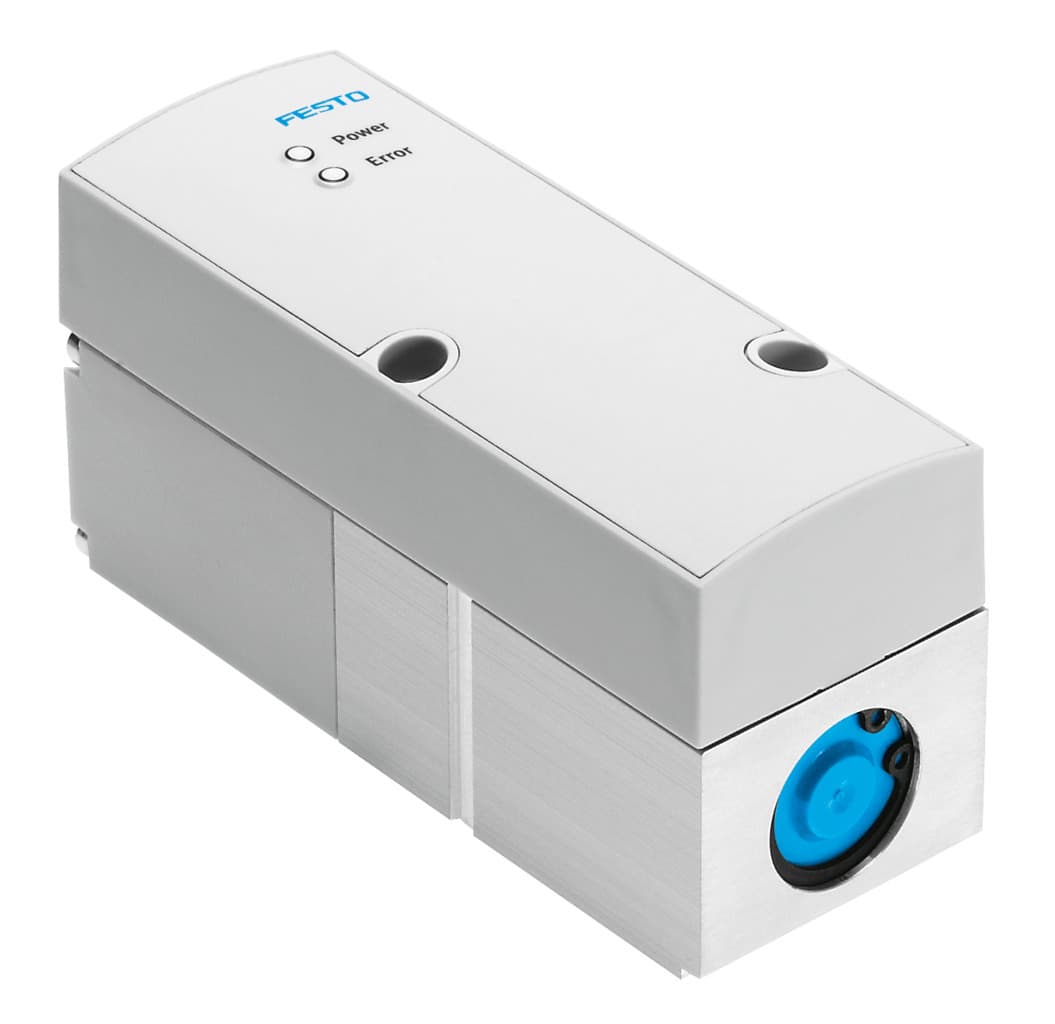

vppm-6ta-l-1-f-0l6h-s1
Selling Points
- 1The Festo VPPM-6TA-L-1-F-0L6H-S1 offers a linearity error of 1% and a temperature coefficient of 0.04% per Kelvin, ensuring precise pressure regulation.
- 2This regulator is piloted by an electrical signal, providing easy integration with control systems and ensuring reliable operation.
- 3The VPPM-6TA-L-1-F-0L6H-S1 can regulate pressures from 0.06 to 6 bar, making it suitable for a variety of industrial applications.
- 4Constructed from anodized wrought aluminum alloy, this regulator offers moderate corrosion resistance and is designed to withstand ambient temperatures from 0 to 60°C.
- 5The VPPM-6TA-L-1-F-0L6H-S1 is certified with RCM Mark c UL us - Listed (OL), KC mark KC-EMV, and CE mark, ensuring compliance with international safety standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width pressurization | 6mm | Exhaust nominal width | 4.5mm |
Actuation type | Electrical | Sealing principle | Soft |
Mounting position | Any | Structural design | Pilot-controlled diaphragm regulator |
Short-circuit protection | For all electrical connections | Safety instructions | VPPM safety position: if the supply cable breaks, the outlet pressure is maintained in uncontrolled form. |
Symbol | 00995303 | Reverse polarity protection | for all electrical connections |
Reset method | Mechanical spring | Type of control | Pilot-controlled |
Valve function | 3-way proportional pressure control valve | Display type | LED |
Pressure regulation range MPa | 0.006MPa 0.6MPa | Pressure regulation range | 0.06bar 6bar |
Inlet pressure 1 | 0bar 8bar | Inlet pressure 1 MPa | 0MPa 0.8MPa |
Max. pressure hysteresis | 0.03bar | Standard nominal flow rate | 900l/min |
DC operating voltage range | 21.6V 26.4V | Max. current consumption | 300mA |
Duty cycle | 100% | Max. electrical power consumption | 7W |
Residual ripple | 10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
Information on operating and pilot media | Operation with oil lubrication not possible | Certification | RCM compliance mark c UL us - Listed (OL) |
KC characters | KC EMC | CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive |
UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | Certificate issuing authority | UL E322346 |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | 10°C 50°C | Degree of protection | IP65 |
Ambient temperature | 0°C 60°C | Product weight | 400g |
Linearity | 1%FS | Hysteresis | 0.5%FS |
Reproducibility | 0.5%FS | Overall accuracy | 1.25 %FS |
Temperature coefficient | 0.04%/K | Repetition accuracy FS | 0.5% |
Electrical connection | Via sub-base | Type of mounting | Optionally: With through-hole With accessories |
Pneumatic connection 1 | Sub-base | Pneumatic connection 2 | Sub-base |
Pneumatic connection 3 | Sub-base | Note on materials | RoHS-compliant |
Housing material | Wrought aluminum alloy Anodized | Manufacturer ID | 542218 |
Specifications may be subject to change without notice
