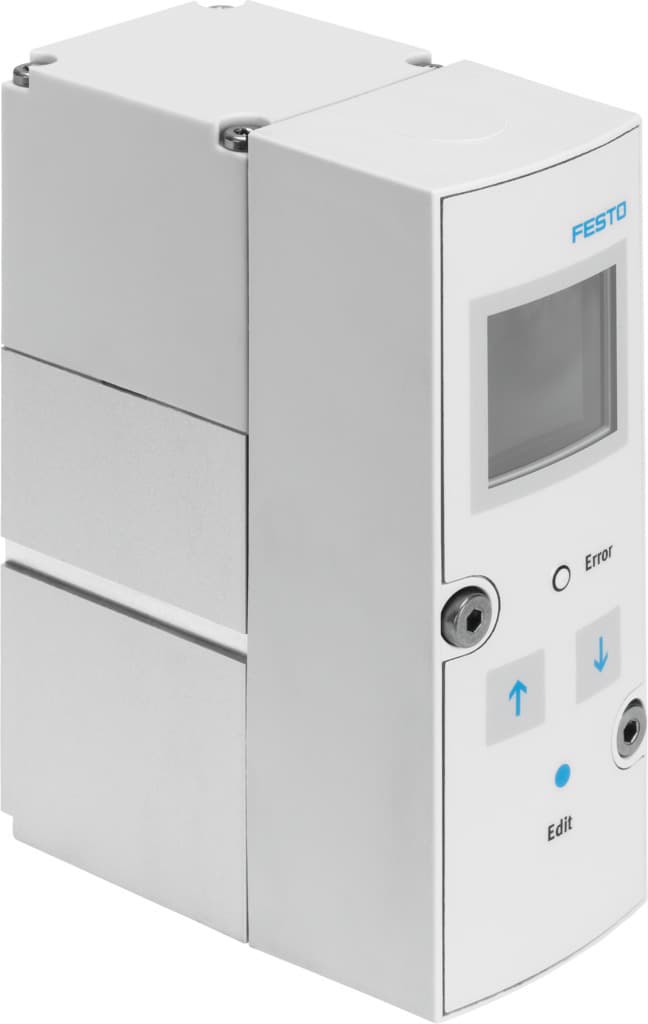

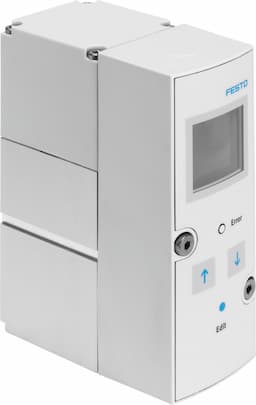

Product Model
vppm-8ta-l-1-f-0l2h-c1
Selling Points
- 1Precise Flow Regulation: Standard nominal flow rate of 450 l/min ensures accurate pressure control.
- 2Durable Construction: Made from wrought aluminum alloy with anodized finish, providing robustness and corrosion resistance.
- 3Versatile Connectivity: Three sub-base pneumatic connections for flexible installation options.
- 4Advanced Display: Backlit LCD display for clear pressure readings and settings.
- 5Reliable Performance: 2-year warranty and CE mark compliance for safety and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width pressurization | 8mm | Exhaust nominal width | 7mm |
Actuation type | Electrical | Sealing principle | Soft |
Mounting position | Any | Structural design | Pilot-controlled diaphragm regulator |
Short-circuit protection | For all electrical connections | Safety instructions | VPPM safety position: if the supply cable breaks, the outlet pressure is maintained in uncontrolled form. |
Symbol | 00995303 | Reverse polarity protection | for all electrical connections |
Reset method | Mechanical spring | Type of control | Pilot-controlled |
Valve function | 3-way proportional pressure control valve | Display type | Back-lit LCD |
Pressure regulation range MPa | 0.002MPa 0.2MPa | Pressure regulation range | 0.02bar 2bar |
Inlet pressure 1 | 0bar 4bar | Inlet pressure 1 MPa | 0MPa 0.4MPa |
Max. pressure hysteresis | 0.01bar | Standard nominal flow rate | 450l/min |
DC operating voltage range | 21.6V 26.4V | Max. current consumption | 300mA |
Duty cycle | 100% | Max. electrical power consumption | 7W |
Residual ripple | 10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
Information on operating and pilot media | Operation with oil lubrication not possible | Certification | RCM compliance mark c UL us - Listed (OL) |
KC characters | KC EMC | CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive |
UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | Certificate issuing authority | UL E322346 |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | 10°C 50°C | Degree of protection | IP65 |
Ambient temperature | 0°C 50°C | Product weight | 560g |
Linearity | 1%FS | Hysteresis | 0.5%FS |
Reproducibility | 0.5%FS | Overall accuracy | 1.25 %FS |
Temperature coefficient | 0.04%/K | Repetition accuracy FS | 0.5% |
Electrical connection | Via sub-base | Type of mounting | Optionally: With through-hole With accessories |
Pneumatic connection 1 | Sub-base | Pneumatic connection 2 | Sub-base |
Pneumatic connection 3 | Sub-base | Note on materials | RoHS-compliant |
Housing material | Wrought aluminum alloy Anodized | Manufacturer ID | 572410 |
Specifications may be subject to change without notice
