Product Model
vpwp-10-l-5-q-10-e-g-ex1
Selling Points
- 1High Precision and Control: The VPWP-10-L-5-Q-10-E-G-EX1 features a 5/3-way proportional directional control valve with integrated pressure sensors, ensuring precise control and accurate flow rates up to 2000 l/min.
- 2Robust Construction: Built with a hard-sealing principle and anodized wrought aluminum alloy housing, this valve is designed for durability and resistance to corrosion, meeting RoHS compliance standards.
- 3Advanced Safety Features: Equipped with magnetic spring reset and a safety position that assumes the closed mid-position in case of control interface issues, the VPWP-10-L-5-Q-10-E-G-EX1 prioritizes safety and reliability.
- 4Versatile Connectivity: The valve supports digital CAN bus communication with integrated terminating resistors and features electrical connections via M9 5-pin plugs and M8 4-pin sockets, ensuring seamless integration with various control systems.
- 5Comprehensive Certifications: Certified to EU EMC Directive, EU Explosion Protection Directive (ATEX), and CE marking, the VPWP-10-L-5-Q-10-E-G-EX1 meets stringent safety and performance standards, making it suitable for a wide range of industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width | 10mm | Actuation type | Electrical |
Sealing principle | Hard | Mounting position | Any Preferably horizontal (display elements facing upwards); if the pneumatic valve is moved, it must be mounted at right angles to the direction of movement |
Structural design | Piston gate valve with integrated pressure sensors | Reset method | Magnetic spring |
Safety instructions | VPWP safety position: the blocked mid-position is approached in case of a control interface malfunction. | Type of control | Direct |

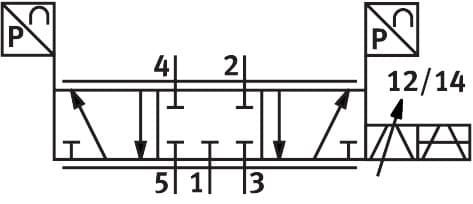

Flow direction | Non-reversible | Symbol | 00992136 |
Valve function | 5/3 proportional directional control valve, closed | Status indications | LED yellow = PL (power load) LED green = power LED red = error |
Operating pressure | 0bar 10bar | Operating pressure for positioning/soft stop | 4bar 8bar |
Nominal operating pressure | 87psi | Standard nominal flow rate | 2000l/min |
Nominal operating voltage DC | 24V | DC operating voltage range | 18V 30V |
Load voltage range DC | 18V 30V | Max. load current at voltage output | 500mA |
Max. load current of the digital output | 500mA | Max. current consumption, valve drive | 1.2A |
Logic max. current consumption | 0.15A | Nominal voltage DC | 24V |
Supply voltage of the digital output | 24 V load voltage | Supply voltage of the voltage output | 24 V load voltage |
Certification | RCM compliance mark | CE marking (see declaration of conformity) | As per EU EMC directive as per EU explosion protection directive (ATEX) As per EU RoHS directive |
UKCA marking (see declaration of conformity) | To UK instructions for EMC acc. to UK EX instructions To UK RoHS instructions | Explosion prevention and protection | Zone 2 (ATEX) |
ATEX category gas | II 3G | Type of ignition protection for gas | Ex nA IIC T5 X Gc |
Explosive ambient temperature | 0°C <= Ta <= +50°C | Operating medium | Compressed air as per ISO 8573-1:2010 [6:4:4] |
Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | 0°C 50°C |
Degree of protection | IP65 In mounted state | Ambient temperature | 0°C 50°C |
Product weight | 1010g | Pressure resolution | 0.01bar |
Linearity error FS | 1.5% | Repetition accuracy FS | 1% |
Design of the 24 V voltage output | Reverse supply without destruction No galvanic isolation Short circuit-proof Reverse supply without destruction | Digital output design | as per IEC 61131-2 Positive logic (PNP) No galvanic isolation Short circuit-proof Reverse supply without destruction |
Control interface | Digital CAN bus with Festo protocol Terminating resistor integrated | Fieldbus interface electrical connection IN | Plug M9 5-pin |
Fieldbus interface electrical connection OUT | Socket M9 5-pin | Fieldbus interface electrical connection | Socket M8 4-pin |
Type of mounting | With through-hole With accessories | Color of connections | Connection 2: blue Connection 4: black |
Pneumatic connection 1 | G3/8 | Pneumatic connection 2 | G3/8 |
Pneumatic connection 3 | G3/8 | Pneumatic connection 4 | G3/8 |
Pneumatic connection 5 | G3/8 | Note on materials | RoHS-compliant |
Cover material | PA-reinforced | Housing material | Wrought aluminum alloy Anodized |
Manufacturer ID | 1552544 |
Specifications may be subject to change without notice
