Product Model

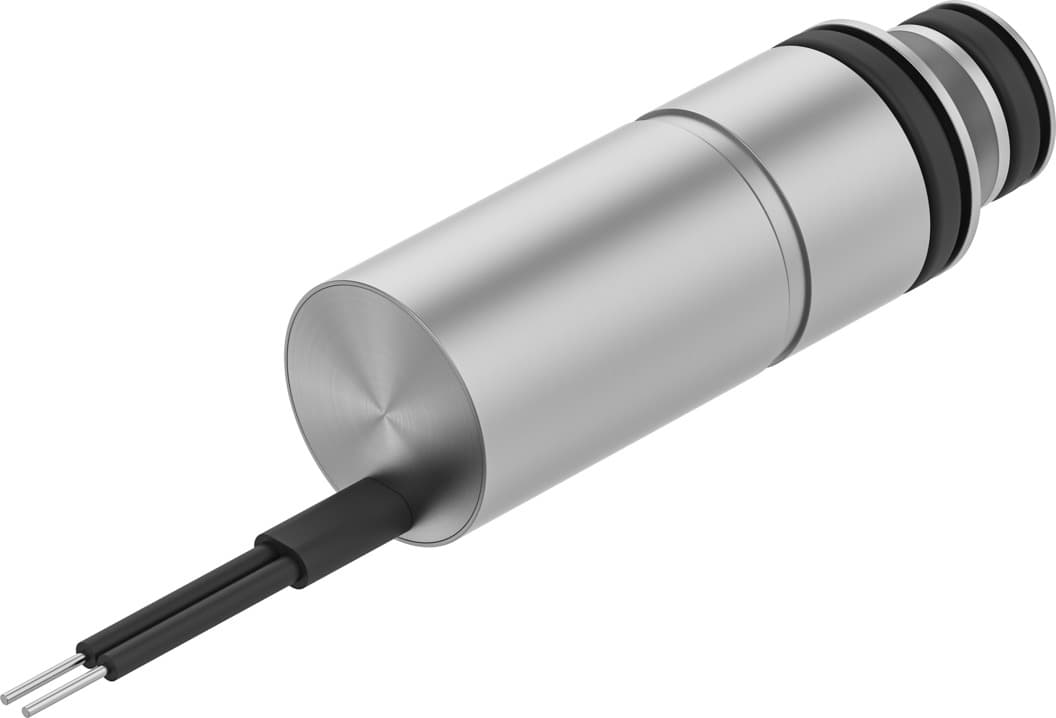

vpws-0.3-b-6-pc8-10-v
Selling Points
- 1The VPWS-0.3-B-6-PC8-10-V offers precise flow control with a nominal width of 0.3 mm, making it ideal for applications requiring high accuracy in fluid management.
- 2This valve can be mounted on a sub-base or plugged in, providing flexibility in installation and integration with various systems.
- 3With a corrosion resistance class of CRC1, the VPWS-0.3-B-6-PC8-10-V is designed to withstand harsh environments and maintain performance over time.
- 4The valve operates within a temperature range of 5 °C to 50 °C and can handle pressures from 0 to 10 bar, making it suitable for a variety of industrial applications.
- 5Featuring a maximum electrical power consumption of 1.5 W, the VPWS-0.3-B-6-PC8-10-V is an energy-efficient solution for your automation needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width | 0.3mm | Actuation type | Electrical |
Sealing principle | Soft | Mounting position | Any |
Structural design | Directly controlled poppet valve | Reset method | Mechanical spring |
Type of control | Direct | Flow direction | Non-reversible |
Symbol | 00995954 | Valve function | 2/2 proportional directional control valve, closed |
Operating pressure | 0bar 10bar | Nominal operating pressure | 145psi |
Burst pressure | 435psi | Standard flow rate | 6.6l/min 8l/min |
Hysteresis | 14mA | Max. switching frequency | 25Hz |
Current regulating range | 0mA 70mA | Max. electrical power consumption | 1.5W |
Coil resistance | 308Ohm | Duty cycle | 100 % (siehe Betriebsanleitung) |
Vibration resistance | Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6 | Note on vibration resistance | Schwingung in Z-Richtung kann zu Durchflussschwankung führen |
Shock resistance | Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27 | Note on shock resistance | Schock in Z-Richtung kann zu Durchflussschwankung führen |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
Medium | Inert gas Air | Information on medium | Operation with oil lubrication not possible Maximum particle size 10 μm |
Temperature of medium | 5°C 50°C | Degree of protection | IP60 |
Note on degree of protection | IP65 with suitable plug In mounted state | Ambient temperature | 5°C 50°C |
Storage temperature | -40°C 80°C | Product weight | 5g |
Electrical connection 1, connection type | Cable | Electrical connection 1, connection technology | Open end |
Electrical connection 1, number of pins/wires | 2 | Cable length | 0.07m 0.08m |
Type of mounting | On sub-base Plug-in With accessories | Pneumatic connection 1 | Cartridge 8 mm |
Pneumatic connection 2 | Cartridge 5.8 mm | Note on materials | RoHS-compliant |
Seals material | FPM | Housing material | High-alloy steel |
Manufacturer ID | 8186784 |
Specifications may be subject to change without notice
