Product Model
vpws-1-b-6-pc15-10-v
Selling Points

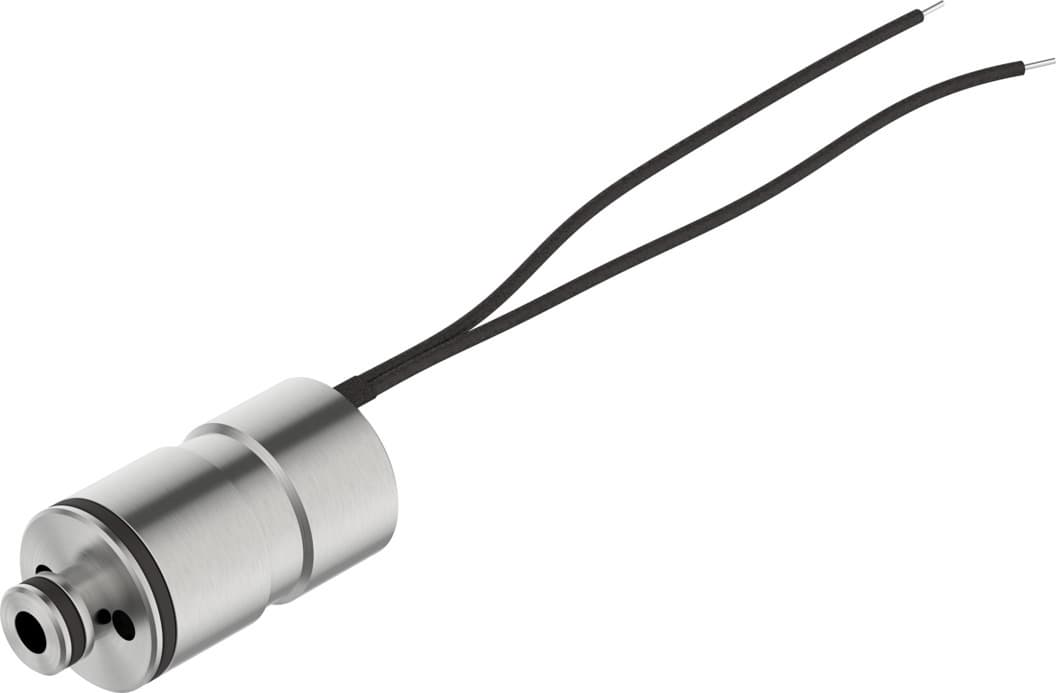

- 1The Festo VPWS-1-B-6-PC15-10-V is a 2/2-way proportional directional control valve designed for precise flow control in industrial applications. It features a nominal width of 1 mm and operates within a pressure range of 0 to 10 bar.
- 2This valve is electrically actuated, ensuring reliable and efficient operation. It includes a soft sealing principle and can be mounted in any position, making it versatile for various installation requirements.
- 3The VPWS-1-B-6-PC15-10-V has a maximum particle size of 10 µm and operates within a medium temperature range of 5 °C to 50 °C. It also meets the IP60 degree of protection and can be upgraded to IP65 with a suitable plug.
- 4This valve is designed with a mechanical spring reset method and supports non-reversible flow direction. It has a standard flow rate of 68 to 88 liters per minute and a maximum electrical power consumption of 2.5 watts.
- 5The Festo VPWS-1-B-6-PC15-10-V is RoHS-compliant and features high-alloy steel housing with FPM seals. It is suitable for use with inert gases, air, and oxygen, making it a reliable choice for various industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width | 1mm | Actuation type | Electrical |
Sealing principle | Soft | Mounting position | Any |
Structural design | Directly controlled poppet valve | Reset method | Mechanical spring |
Type of control | Direct | Flow direction | Non-reversible |
Symbol | 00995954 | Valve function | 2/2 proportional directional control valve, closed |
Operating pressure | 0bar 10bar | Nominal operating pressure | 145psi |
Burst pressure | 435psi | Standard flow rate | 68l/min 88l/min |
Hysteresis | 16mA | Max. switching frequency | 18Hz |
Current regulating range | 0mA 200mA | Max. electrical power consumption | 2.5W |
Coil resistance | 60.5Ohm | Duty cycle | 100 % (siehe Betriebsanleitung) |
Oxygen suitability according to standard | ISO 15001 | Impurity level, hydrocarbons maximum | 550mg/m2 |
Vibration resistance | Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6 | Note on vibration resistance | Schwingung in Z-Richtung kann zu Durchflussschwankung führen |
Shock resistance | Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27 | Note on shock resistance | Schock in Z-Richtung kann zu Durchflussschwankung führen |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
Medium | Inert gas Air Oxygen | Information on medium | Operation with oil lubrication not possible Maximum particle size 10 μm |
Temperature of medium | 5°C 50°C | Degree of protection | IP60 |
Note on degree of protection | IP65 with suitable plug In mounted state | Ambient temperature | 5°C 50°C |
Storage temperature | -40°C 80°C | Product weight | 23g |
Electrical connection 1, connection type | Cable | Electrical connection 1, connection technology | Open end |
Electrical connection 1, number of pins/wires | 2 | Cable length | 0.07m 0.08m |
Type of mounting | On sub-base Plug-in With accessories | Pneumatic connection 1 | Cartridge 15 mm |
Pneumatic connection 2 | Cartridge 7.2 mm | Note on materials | RoHS-compliant |
Seals material | FPM | Housing material | High-alloy steel |
Manufacturer ID | 8186783 |
Specifications may be subject to change without notice
