Product Model

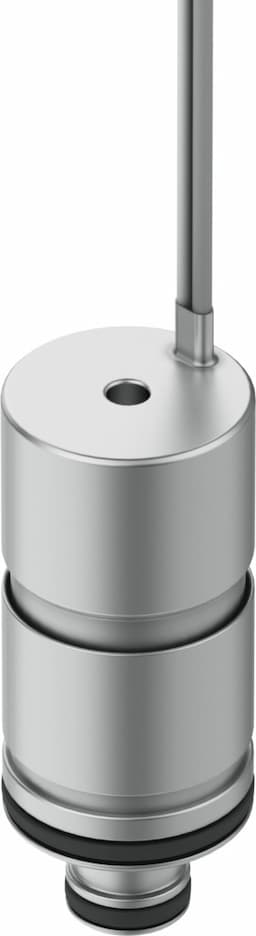

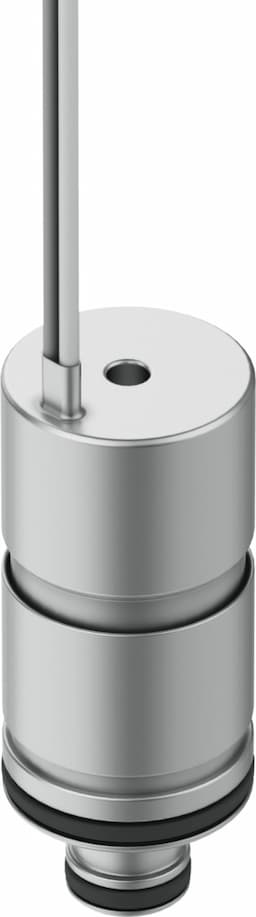

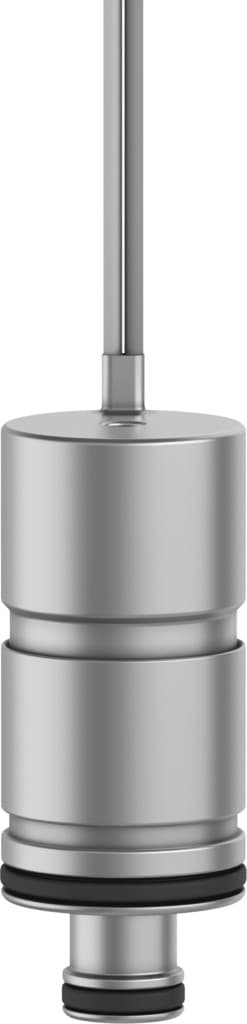

vpws-6-b-6-pc15-7-v
Selling Points
- 1The VPWS-6-B-6-PC15-7-V offers a standard flow rate of 270 to 350 liters per minute, ensuring consistent and accurate fluid flow.
- 2This valve is electrically actuated, providing fast and reliable operation with a switching time of just 10 milliseconds.
- 3Equipped with a soft sealing principle, the valve ensures minimal leakage and extended lifespan.
- 4Designed to operate at pressures up to 7 bar (101.5 psi), making it suitable for demanding industrial applications.
- 5Built with high-alloy steel housing and FPM seals, this valve offers excellent corrosion resistance and durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width | 6mm | Actuation type | Electrical |
Sealing principle | Soft | Mounting position | Any |
Structural design | Directly controlled poppet valve | Reset method | Mechanical spring |
Type of control | Direct | Flow direction | Non-reversible |
Symbol | 00995953 | Valve function | 2/2 proportional directional control valve, closed |
Operating pressure | 0bar 7bar | Nominal operating pressure | 101.5psi |
Burst pressure | 304.5psi | Standard flow rate | 270l/min 350l/min |
Hysteresis | 22.5mA | On switching time | 10ms |
Current regulating range | 0mA 225mA | Max. electrical power consumption | 3W |
Coil resistance | 60.5Ohm | Duty cycle | 100 % (siehe Betriebsanleitung) |
Oxygen suitability according to standard | ISO 15001 | Impurity level, hydrocarbons maximum | 500mg/m2 |
Vibration resistance | Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6 | Note on vibration resistance | Schwingung in Z-Richtung kann zu Durchflussschwankung führen |
Shock resistance | Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27 | Note on shock resistance | Schock in Z-Richtung kann zu Durchflussschwankung führen |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
Medium | Inert gas Air Oxygen | Information on medium | Operation with oil lubrication not possible Maximum particle size 10 μm |
Temperature of medium | 5°C 50°C | Degree of protection | IP60 |
Note on degree of protection | IP65 with suitable plug In mounted state | Ambient temperature | 5°C 50°C |
Storage temperature | -40°C 80°C | Product weight | 25g |
Electrical connection 1, connection type | Cable | Electrical connection 1, connection technology | Open end |
Electrical connection 1, number of pins/wires | 2 | Cable length | 0.07m 0.08m |
Type of mounting | On sub-base Plug-in With accessories | Pneumatic connection 1 | Cartridge 7.5 mm |
Pneumatic connection 2 | Cartridge 15 mm | Note on materials | RoHS-compliant |
Seals material | FPM | Housing material | High-alloy steel |
Manufacturer ID | 8074538 |
Specifications may be subject to change without notice
