Product Model
vs-3-1/8
Selling Points

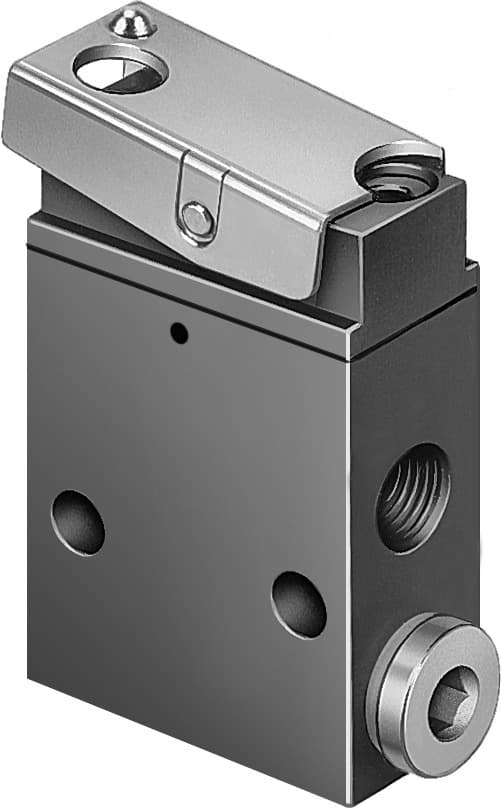

- 1The Festo VS-3-1/8 stem actuated valve offers a 3/2-way monostable function, ensuring precise control in pneumatic systems. Its mechanical actuation provides reliable operation.
- 2With a maximum operating pressure of 8 bar and a temperature range of -5°C to +50°C, this valve is suitable for various industrial applications.
- 3The valve features a poppet seat design and a mechanical spring return, ensuring consistent performance and durability.
- 4The Festo VS-3-1/8 valve is designed with soft sealing principles and optional mounting positions, enhancing its versatility and ease of integration.
- 5This valve is RoHS-compliant and features NBR material seals, making it a reliable choice for environmentally conscious industries. It also supports lubricated operation for added durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 3/2, closed, monostable | Actuation type | Mechanical |
Standard nominal flow rate | 146l/min 154l/min | Pneumatic working port | G1/8 |
Operating pressure | 3.5bar 8bar | Structural design | Plate seat |
Reset method | Mechanical spring | Nominal width | 3.5mm |
Exhaust air function | With flow control option | Sealing principle | Soft |
Mounting position | Any | Type of control | Pilot-controlled |
Pilot air supply port | Internal | Flow direction | Non-reversible |
Symbol | 00991113 | Pilot medium | Compressed air as per ISO 8573-1:2010 [-:-:-] |
Note on forced dynamization | Switching frequency min. 1/year | Explosion prevention and protection | Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
Operating medium | Compressed air as per ISO 8573-1:2010 [-:-:-] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -10°C 60°C | Ambient temperature | -10°C 60°C |
Actuating force | 3N | Product weight | 110g |
Type of mounting | With through-hole | Pneumatic connection 1 | G1/8 |
Pneumatic connection 2 | G1/8 | Pneumatic connection 3 | G1/8 |
Note on materials | RoHS-compliant | Seals material | NBR |
Housing material | Aluminum Anodized | Manufacturer ID | 2334 |
Specifications may be subject to change without notice
