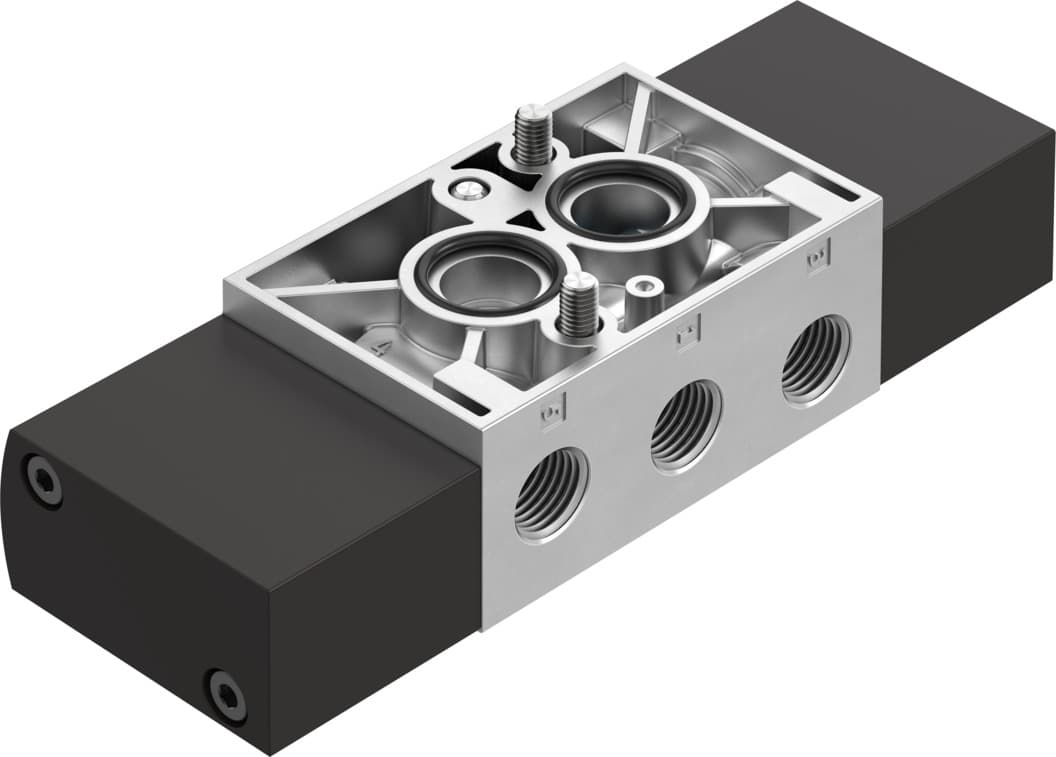

Product Model
vsnc-f-p53c-m-g14-p2
Selling Points
- 1High Performance Valve Function: 5/3 closed valve function for precise control.
- 2Electric Actuation: Electrically actuated for efficient operation.
- 3Standard Nominal Flow Rate: 1250 l/min, standardized to DIN 1343.
- 4Corrosion Resistance: Moderate corrosion stress with CRC 2 classification.
- 5Wide Operating Range: Operating pressure 0.3 MPa to 0.8 MPa, temperature range -20 °C to 60 °C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/3, closed | Actuation type | Electrical |
Width | 32mm | Standard nominal flow rate | 1250l/min |
Pneumatic working port | NAMUR connection diagram | Operating voltage | Via solenoid coil, to be ordered separately |
Operating pressure | 3bar 8bar | Structural design | Piston gate valve |
Reset method | Mechanical spring | Exhaust air function | With flow control option |
Sealing principle | Soft | Mounting position | Any |
Conforms to standard | VDI/VDE 3845 (NAMUR) | Manual override | None |
Type of control | Pilot-controlled | Pilot air supply port | Internal |
Flow direction | Non-reversible | Symbol | 00991018 |
Lap | Overlap | b-value | 0.4 |
C value | 5.2l/sbar | Switching time off | 20ms |
On switching time | 5ms | Changeover time | 9ms |
Duty cycle | 100% | Coil characteristics | See solenoid coil, to be ordered separately |
Explosion prevention and protection | Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Temperature of medium | -20°C 60°C |
Ambient temperature | -20°C 60°C | Product weight | 428g |
Type of mounting | With through-hole | Venting hole connection | Not ducted |
Pneumatic connection 1 | G1/4 | Pneumatic connection 2 | NAMUR connection diagram |
Pneumatic connection 3 | G1/4 | Pneumatic connection 4 | NAMUR connection diagram |
Pneumatic connection 5 | G1/4 | Note on materials | RoHS-compliant |
Seals material | NBR | Housing material | Wrought aluminum alloy |
Material of screws | Steel, galvanized | Manufacturer ID | 8114686 |
Specifications may be subject to change without notice
