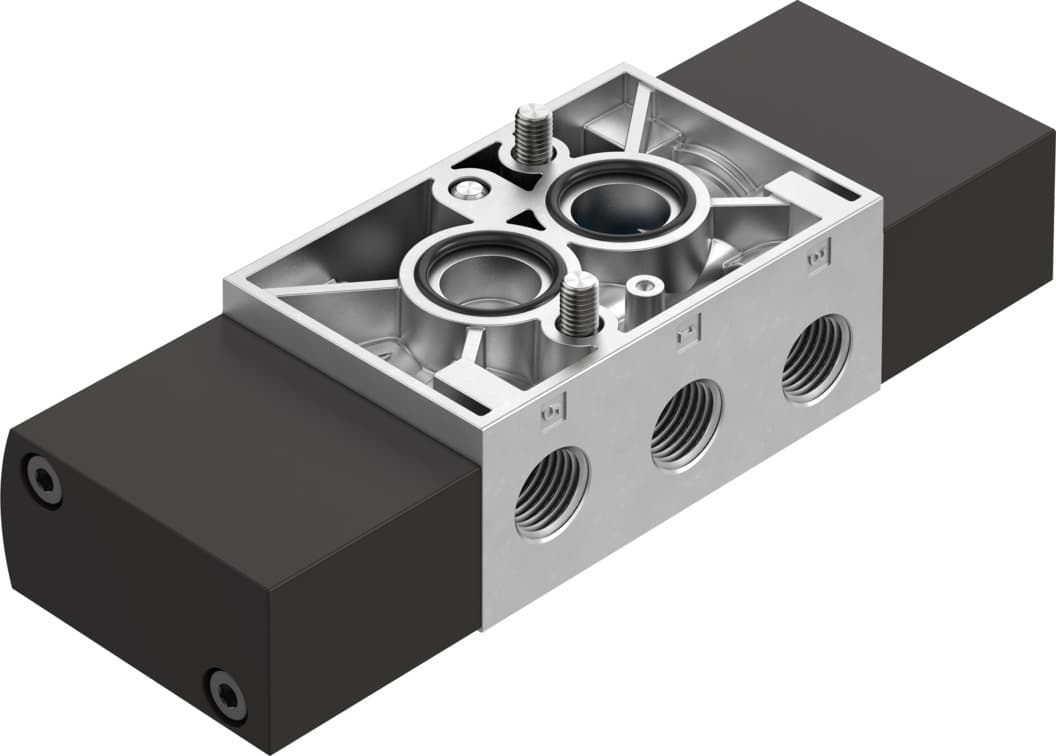

Product Model
vsnc-ft-b52-n14-p2
Selling Points
- 1High Flow Rate: Standard nominal flow rate of 1000 l/min for efficient operation.
- 2Electric Actuation: Easy to control with electric solenoid coils, enhancing system reliability.
- 3Compact Design: Only 32 mm in width, perfect for space-constrained applications.
- 4Robust Construction: Made from RoHS-compliant materials, including NBR seals and galvanized steel screws.
- 5Compliance with Standards: Meets VDI/VDE 3845 (NAMUR) standards for consistent performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, bistable | Actuation type | Electrical |
Width | 32mm | Standard nominal flow rate | 1000l/min |
Pneumatic working port | NAMUR connection diagram | Operating voltage | Via solenoid coil, to be ordered separately |
Operating pressure | 1.5bar 8bar | Structural design | Plate seat |
Exhaust air function | With flow control option | Sealing principle | Soft |
Mounting position | Any | Conforms to standard | VDI/VDE 3845 (NAMUR) |
Manual override | None | Type of control | Pilot-controlled |
Pilot air supply port | Internal | Flow direction | Non-reversible |
Symbol | 00991953 | Lap | Underlap |
Changeover time | 2ms | Duty cycle | 100% |
Coil characteristics | See solenoid coil, to be ordered separately | Explosion prevention and protection | Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Temperature of medium | -20°C 60°C | Ambient temperature | -20°C 60°C |
Product weight | 422g | Type of mounting | With through-hole |
Venting hole connection | Not ducted | Pneumatic connection 1 | 1/4 NPT |
Pneumatic connection 2 | NAMUR connection diagram | Pneumatic connection 3 | 1/4 NPT |
Pneumatic connection 4 | NAMUR connection diagram | Pneumatic connection 5 | 1/4 NPT |
Note on materials | RoHS-compliant | Seals material | NBR |
Housing material | Wrought aluminum alloy | Material of screws | Steel, galvanized |
Manufacturer ID | 8114699 |
Specifications may be subject to change without notice
