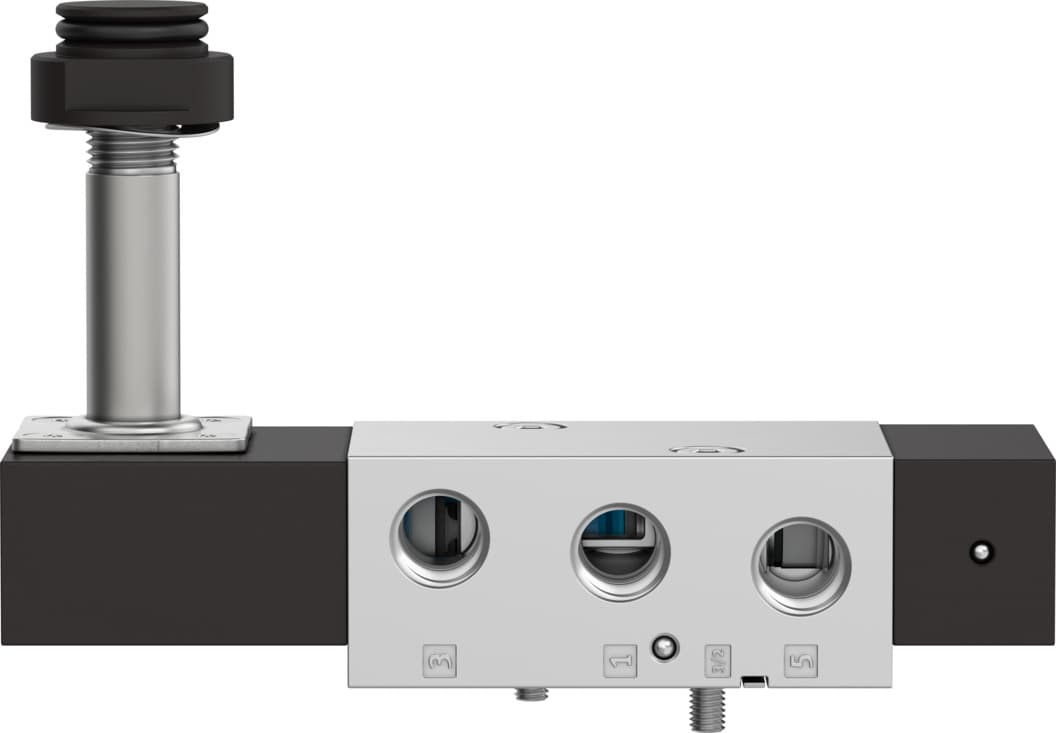

Product Model
vsnc-ftc-m52-m-n14-f19a
Selling Points
- 1Versatile Valve Function: 5/2-way or 3/2-way convertible solenoid valve for flexible application.
- 2High Flow Rate: Standard nominal flow rate of 800 l/min, suitable for demanding pneumatic systems.
- 3Electric Actuation: Efficient electric actuation for precise control and quick response times.
- 4NAMUR Port Pattern: Conforms to VDI/VDE 3845 (NAMUR) standards for seamless integration.
- 5Robust Construction: Built with a 32 mm construction width and made from durable materials like wrought aluminum alloy and galvanized steel.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2 or 3/2 switchable | Actuation type | Electrical |
Width | 32mm | Standard nominal flow rate | 800l/min |
Pneumatic working port | NAMUR connection diagram | Operating voltage | Via solenoid coil, to be ordered separately |
Operating pressure | 2.5bar 8bar | Structural design | Plate seat |
Reset method | Mechanical spring | Exhaust air function | With flow control option |
Sealing principle | Soft | Mounting position | Any |
Conforms to standard | VDI/VDE 3845 (NAMUR) | Manual override | None |
Type of control | Pilot-controlled | Pilot air supply port | Internal |
Flow direction | Non-reversible | Symbol | 00991831 |
Lap | Underlap | Standard nominal flow rate, exhaust air return 4->3 | 110l/min |
Switching time off | 380ms | On switching time | 435ms |
Duty cycle | 100% | Coil characteristics | See solenoid coil, to be ordered separately |
Explosion prevention and protection | Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Temperature of medium | -20°C 60°C |
Ambient temperature | -20°C 60°C | Product weight | 478g |
Type of mounting | With through-hole | Venting hole connection | Not ducted |
Pneumatic connection 1 | 1/4 NPT | Pneumatic connection 2 | NAMUR connection diagram |
Pneumatic connection 3 | 1/4 NPT | Pneumatic connection 4 | NAMUR connection diagram |
Pneumatic connection 5 | 1/4 NPT | Note on materials | RoHS-compliant |
Seals material | NBR | Housing material | Wrought aluminum alloy |
Material of screws | Steel, galvanized | Manufacturer ID | 8116381 |
Specifications may be subject to change without notice
