Product Model
vspa-b-m52-a-a2
Selling Points
- 1The Festo VSPA-B-M52-A-A2 is a 5/2-way, monostable pneumatic valve designed for precise control in industrial applications.
- 2With a standard nominal flow rate of 550 l/min, this valve ensures efficient operation in various pneumatic systems.
- 3Compliant with ISO 15407-1 and VDMA 24563 standards, the VSPA-B-M52-A-A2 guarantees high-quality performance and reliability.
- 4Constructed from die-cast aluminum with NBR seals and galvanized steel screws, this valve is durable and resistant to corrosion.
- 5Operating in the range of -10 °C to 60 °C and with a relative air humidity of 0 - 90%, the VSPA-B-M52-A-A2 is versatile for different environmental conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, monostable | Actuation type | Pneumatic |
Width | 18mm | Standard nominal flow rate | 550l/min |
Pneumatic working port | Sub-base, size 18 mm as per ISO 15407-1 Connecting plate size 02 according to VDMA 24563 G1/8 | Operating pressure | 2bar 10bar |
Structural design | Piston gate valve | Reset method | Pneumatic spring |
Nominal width | 5mm | Exhaust air function | With flow control option |
Sealing principle | Soft | Mounting position | Any |
Conforms to standard | ISO 15407-1 VDMA 24563 | Type of control | Direct |

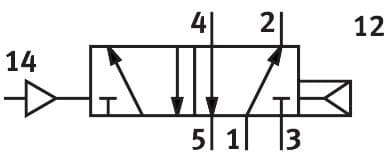

Flow direction | Reversible | Symbol | 00991048 |
Lap | Overlap | Pilot pressure | 2bar 10bar |
Flow rate of pneumatic valve | 750l/min | Flow rate of pneumatic valve on individual sub-base | 550l/min |
Optimized flow rate of pneumatic valve pneumatically concatenated flow | 550l/min | Switching time off | 20ms |
On switching time | 11ms | Explosion prevention and protection | Zone 2 (ATEX) Zone 22 (ATEX) |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -10°C 60°C | Relative air humidity | 0 - 90 % |
Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -10°C 60°C |
Max. tightening torque for valve mounting | 0.9Nm 1.1Nm | Product weight | 80g |
Pilot air port 12 | Sub-base, size 18 mm as per ISO 15407-1 | Pilot air port 14 | Sub-base, size 18 mm as per ISO 15407-1 |
Pneumatic connection 1 | Sub-base, size 18 mm as per ISO 15407-1 | Pneumatic connection 2 | Sub-base, size 18 mm as per ISO 15407-1 |
Pneumatic connection 3 | Sub-base, size 18 mm as per ISO 15407-1 | Pneumatic connection 4 | Sub-base, size 18 mm as per ISO 15407-1 |
Pneumatic connection 5 | Sub-base, size 18 mm as per ISO 15407-1 | Note on materials | RoHS-compliant |
Seals material | NBR | Housing material | Die-cast aluminum |
Material of screws | Steel Galvanized | Manufacturer ID | 546726 |
Specifications may be subject to change without notice
