Product Model
vspa-b-p53c-a1
Selling Points
- 1The Festo VSPA-B-P53C-A1 is a 5/3 closed pneumatic valve designed for precise control, featuring a standard nominal flow rate of 1000 l/min and operating pressure range of -0.9 to 16 bar.
- 2This valve is constructed with die-cast aluminum housing and uses NBR seals, ensuring durability and corrosion resistance. It also conforms to standards ISO 15407-1 and VDMA 24563.
- 3The VSPA-B-P53C-A1 offers reversible lap operation with direct piloting, allowing for efficient and reliable control. It also features a mechanical spring reset mechanism for added reliability.
- 4This pneumatic valve is suitable for a wide range of applications, including those requiring lubricated operation. It operates within a temperature range of -10°C to 60°C and has a maximum tightening torque of 1.8 Nm to 2.2 Nm.
- 5The Festo VSPA-B-P53C-A1 is designed for use in Zone 2 (ATEX) and Zone 22 (ATEX) environments, ensuring it meets stringent safety standards. It also supports flow control options and soft mounting positions for flexibility.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/3, closed | Actuation type | Pneumatic |
Width | 26mm | Standard nominal flow rate | 1000l/min |
Pneumatic working port | Sub-base, size 26 mm according to ISO 15407-1 Connecting plate size 01 according to VDMA 24563 G1/4 | Operating pressure | -0.9bar 16bar |
Structural design | Piston gate valve | Reset method | Mechanical spring |
Nominal width | 9mm | Exhaust air function | With flow control option |
Sealing principle | Soft | Mounting position | Any |
Conforms to standard | ISO 15407-1 VDMA 24563 | Type of control | Direct |

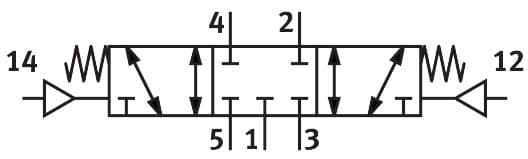

Flow direction | Reversible | Symbol | 00991018 |
Lap | Overlap | Pilot pressure | 3bar 10bar |
Flow rate of pneumatic valve | 1400l/min | Flow rate of pneumatic valve on individual sub-base | 1100l/min |
Optimized flow rate of pneumatic valve pneumatically concatenated flow | 1000l/min | Switching time off | 32ms |
On switching time | 13ms | Explosion prevention and protection | Zone 2 (ATEX) Zone 22 (ATEX) |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -10°C 60°C | Relative air humidity | 0 - 90 % |
Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -10°C 60°C |
Max. tightening torque for valve mounting | 1.8Nm 2.2Nm | Product weight | 180g |
Pilot air port 12 | Sub-base, size 26 mm as per ISO 15407-1 | Pilot air port 14 | Sub-base, size 26 mm as per ISO 15407-1 |
Pneumatic connection 1 | Sub-base, size 26 mm as per ISO 15407-1 | Pneumatic connection 2 | Sub-base, size 26 mm as per ISO 15407-1 |
Pneumatic connection 3 | Sub-base, size 26 mm as per ISO 15407-1 | Pneumatic connection 4 | Sub-base, size 26 mm as per ISO 15407-1 |
Pneumatic connection 5 | Sub-base, size 26 mm as per ISO 15407-1 | Note on materials | RoHS-compliant |
Seals material | NBR | Housing material | Die-cast aluminum |
Material of screws | Steel Galvanized | Manufacturer ID | 546720 |
Specifications may be subject to change without notice
