Product Model
vspa-b-p53e-a1
Selling Points
- 1The Festo VSPA-B-P53E-A1 is a 5/3 exhausted pneumatic solenoid valve, ideal for applications requiring precise control and reliable operation. Its pneumatic actuation ensures smooth and efficient valve movement.
- 2With a nominal width of 9 mm and a build width of 26 mm, this valve offers compact design without compromising on performance. It is suitable for various industrial applications.
- 3The valve features a mechanical spring return, ensuring consistent reset behavior and reliability. It also supports throttled exhaust function, allowing for precise control over airflow.
- 4Designed to operate within a wide pressure range of -0.9 to 16 bar, the VSPA-B-P53E-A1 is versatile and can handle various operating conditions. It complies with standards like ISO 15407-1 and VDMA 24563.
- 5This valve is constructed from high-quality materials, including aluminum die-casting for the housing and zinc-plated steel for screws. It is RoHS compliant and suitable for use in environments with relative humidity up to 90%.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/3, exhausted | Actuation type | Pneumatic |
Width | 26mm | Standard nominal flow rate | 1000l/min |
Pneumatic working port | Sub-base, size 26 mm according to ISO 15407-1 Connecting plate size 01 according to VDMA 24563 G1/4 | Operating pressure | -0.9bar 16bar |
Structural design | Piston gate valve | Reset method | Mechanical spring |
Nominal width | 9mm | Exhaust air function | With flow control option |
Sealing principle | Soft | Mounting position | Any |
Conforms to standard | ISO 15407-1 VDMA 24563 | Type of control | Direct |

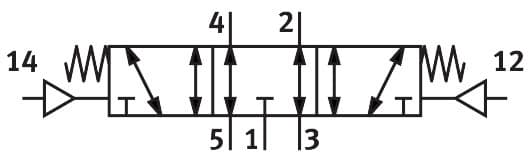

Flow direction | Reversible | Symbol | 00991021 |
Lap | Overlap | Pilot pressure | 3bar 10bar |
Flow rate of pneumatic valve | 1400l/min | Flow rate of pneumatic valve on individual sub-base | 1100l/min |
Optimized flow rate of pneumatic valve pneumatically concatenated flow | 1000l/min | Switching time off | 32ms |
On switching time | 13ms | Explosion prevention and protection | Zone 2 (ATEX) Zone 22 (ATEX) |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -10°C 60°C | Relative air humidity | 0 - 90 % |
Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -10°C 60°C |
Max. tightening torque for valve mounting | 1.8Nm 2.2Nm | Product weight | 180g |
Pilot air port 12 | Sub-base, size 26 mm as per ISO 15407-1 | Pilot air port 14 | Sub-base, size 26 mm as per ISO 15407-1 |
Pneumatic connection 1 | Sub-base, size 26 mm as per ISO 15407-1 | Pneumatic connection 2 | Sub-base, size 26 mm as per ISO 15407-1 |
Pneumatic connection 3 | Sub-base, size 26 mm as per ISO 15407-1 | Pneumatic connection 4 | Sub-base, size 26 mm as per ISO 15407-1 |
Pneumatic connection 5 | Sub-base, size 26 mm as per ISO 15407-1 | Note on materials | RoHS-compliant |
Seals material | NBR | Housing material | Die-cast aluminum |
Material of screws | Steel Galvanized | Manufacturer ID | 546719 |
Specifications may be subject to change without notice
